Electronic Controlled Automatic Transmission (ECT) - Diagnostics: Location

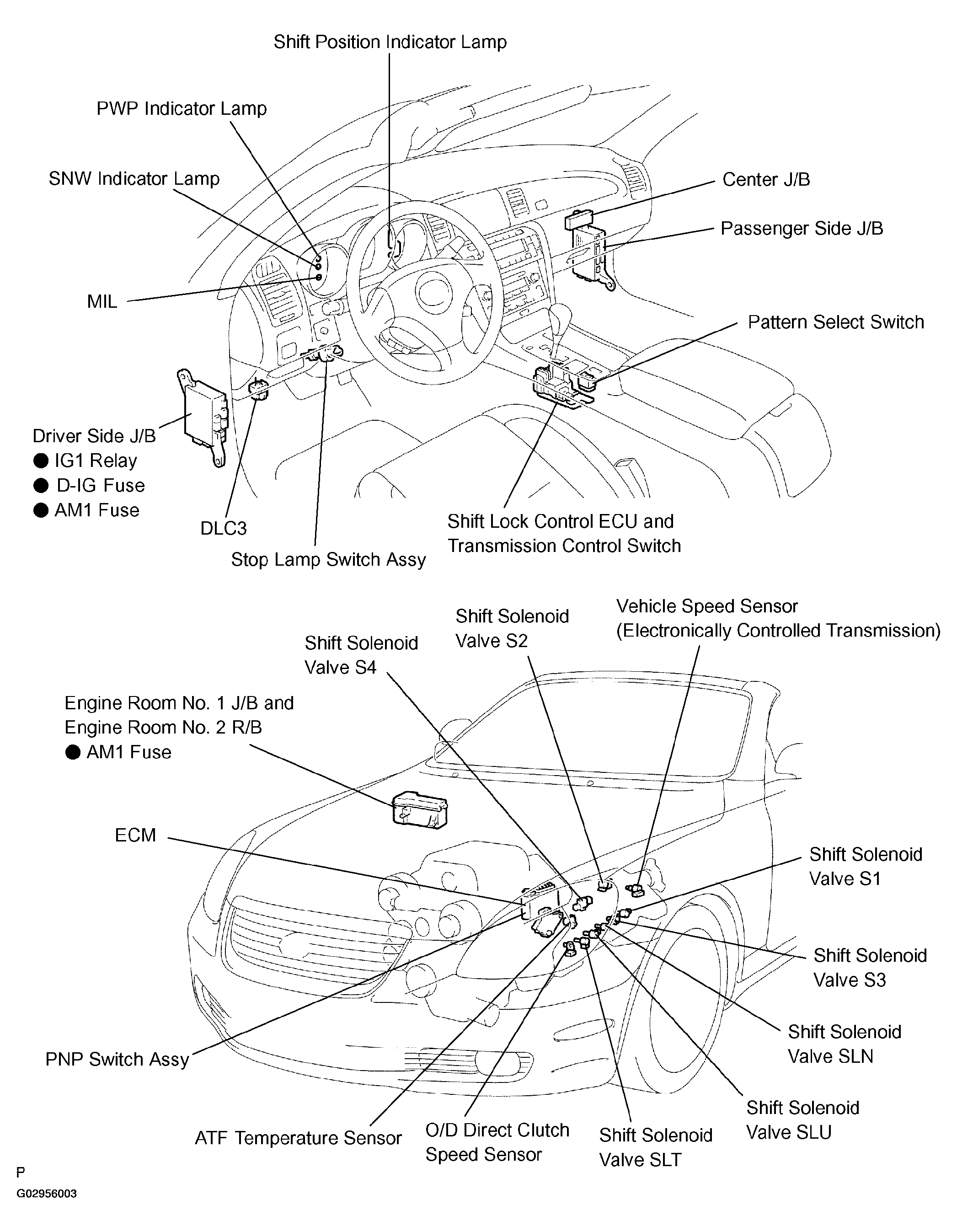

Fig 1: Identifying Location Of Electronic Controlled Automatic Transmission (ECT) Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
