Vane Pump ASSY: Components

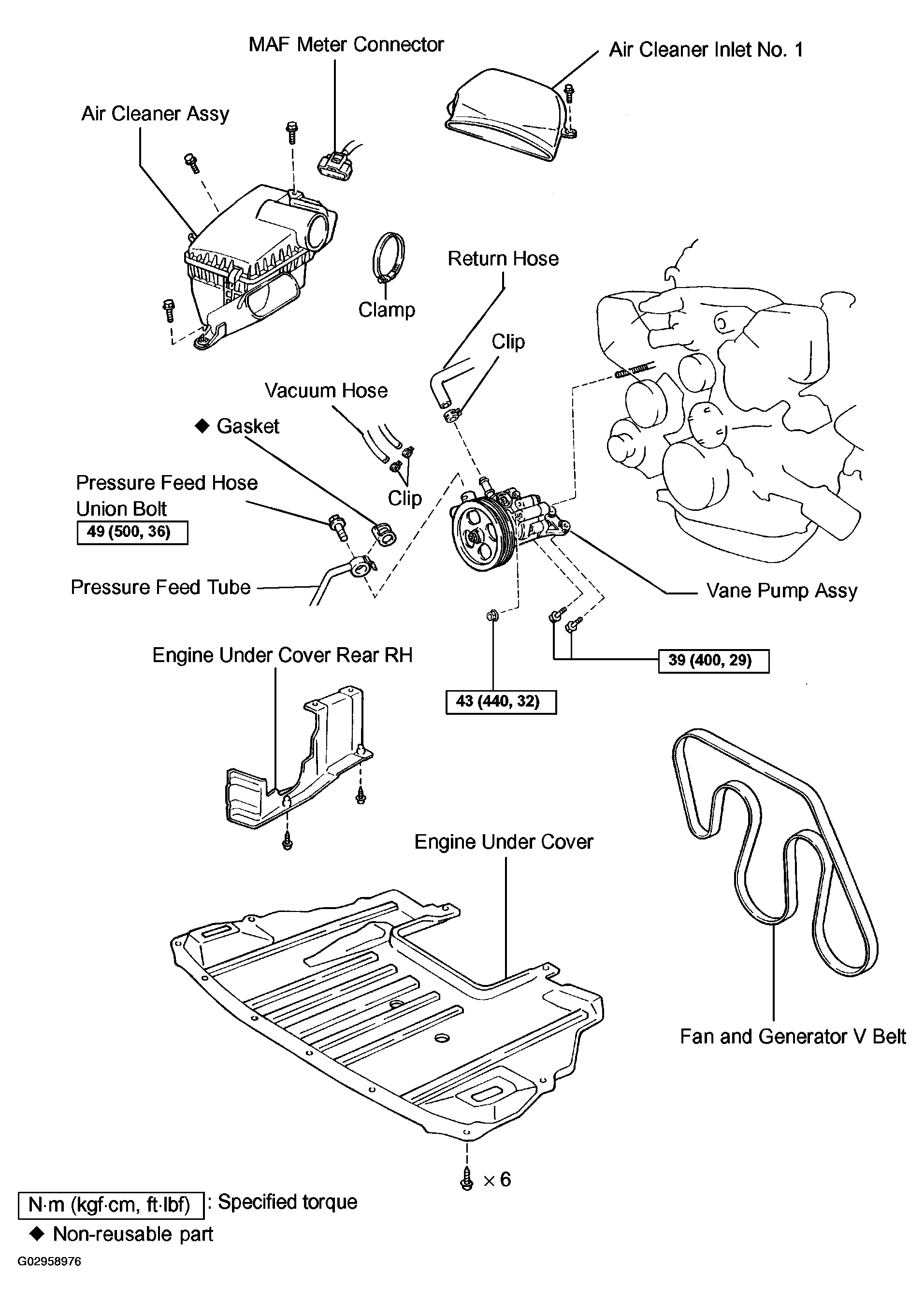

Fig 1: Identifying Vane Pump Assy Components (1 Of 2)
G02958976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

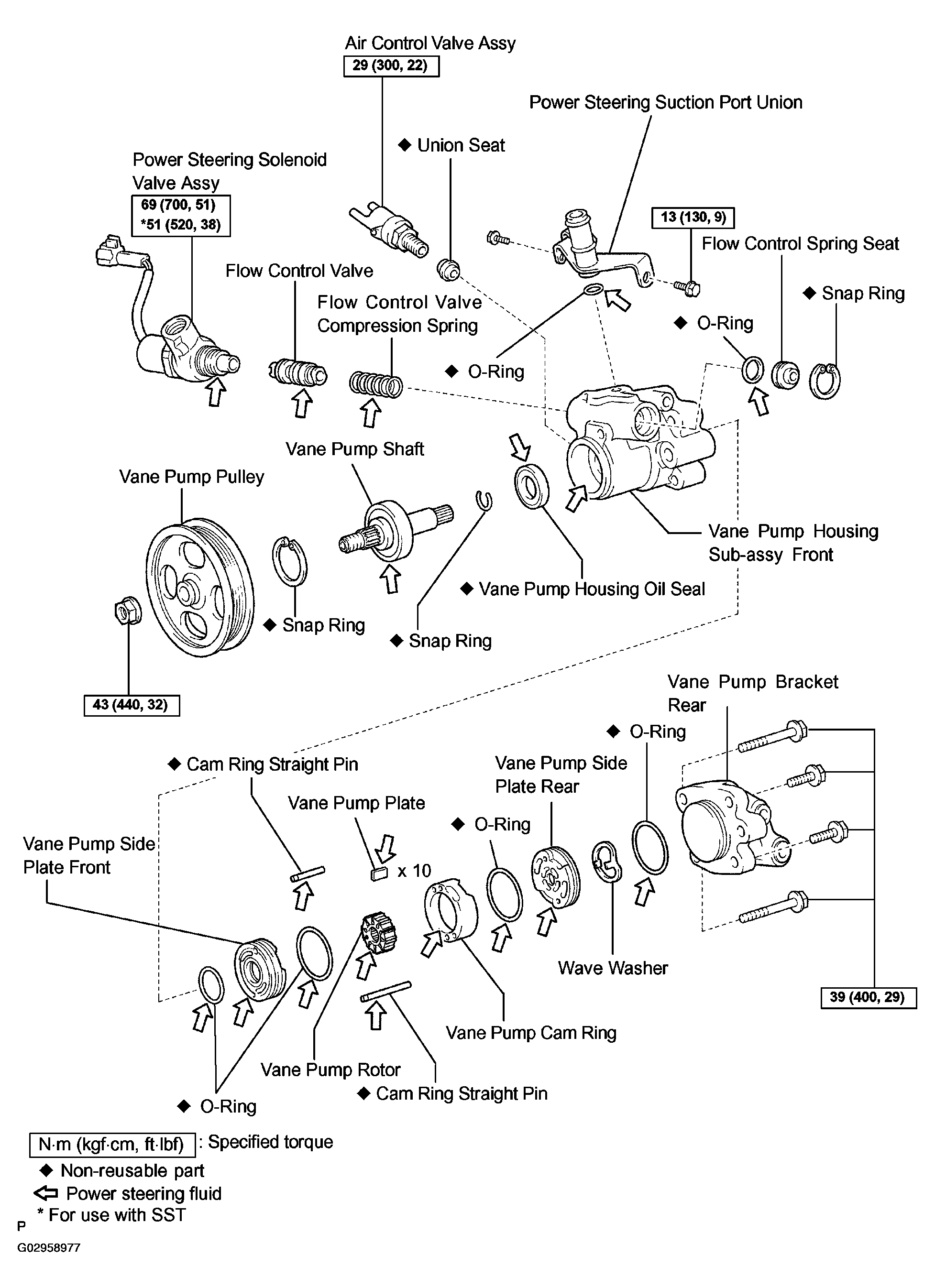

Fig 2: Identifying Vane Pump Assy Components (2 Of 2)
G02958977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
