Front Seat Belt With PRETENSIONER: Components

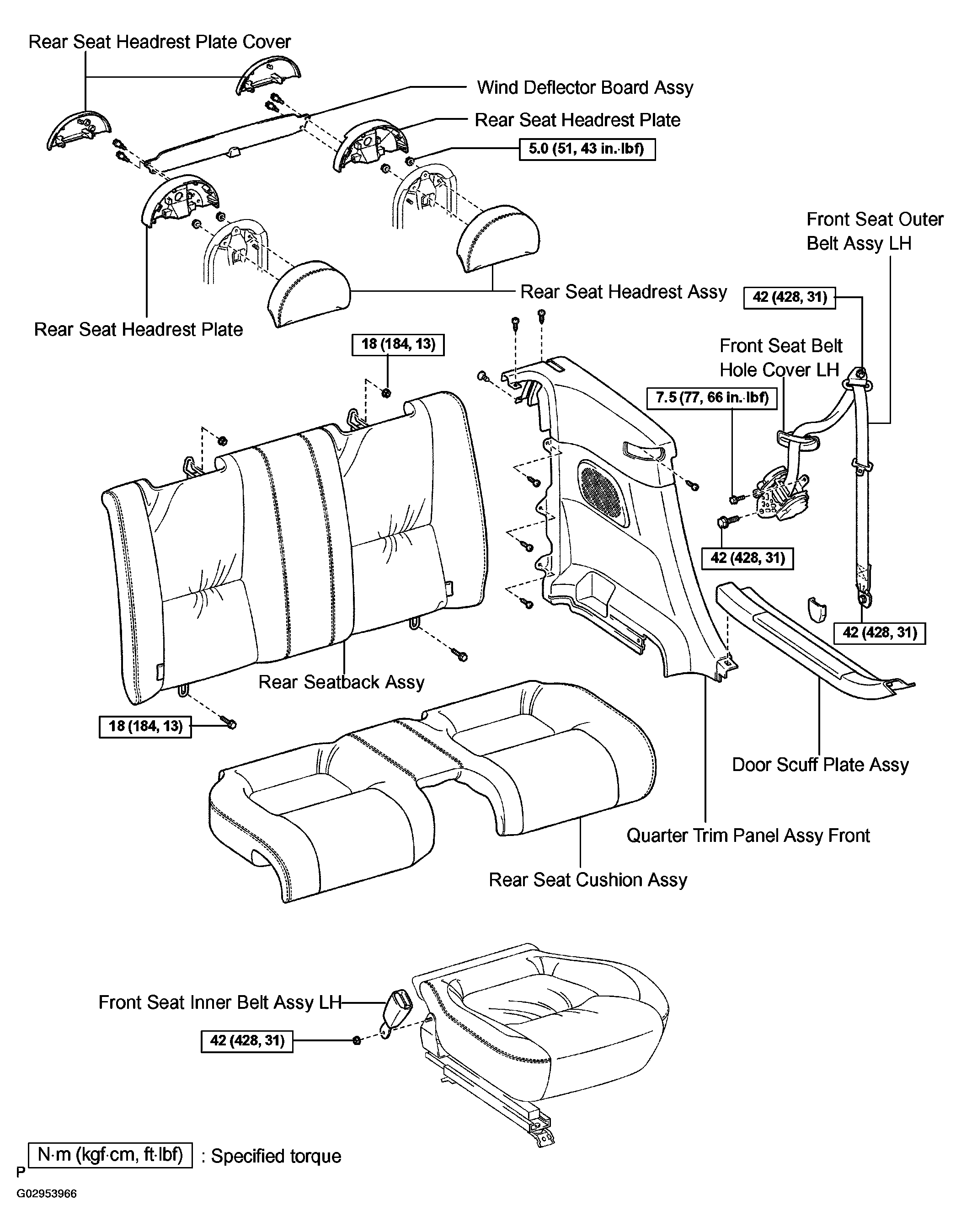

Fig 1: Exploded View Of Front Seat Belt Components & Replacements

G02953966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
