Home >> Lexus >> 2005 >> SC 430 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System >> Horn Button ASSY >> Components

Horn Button ASSY: Components

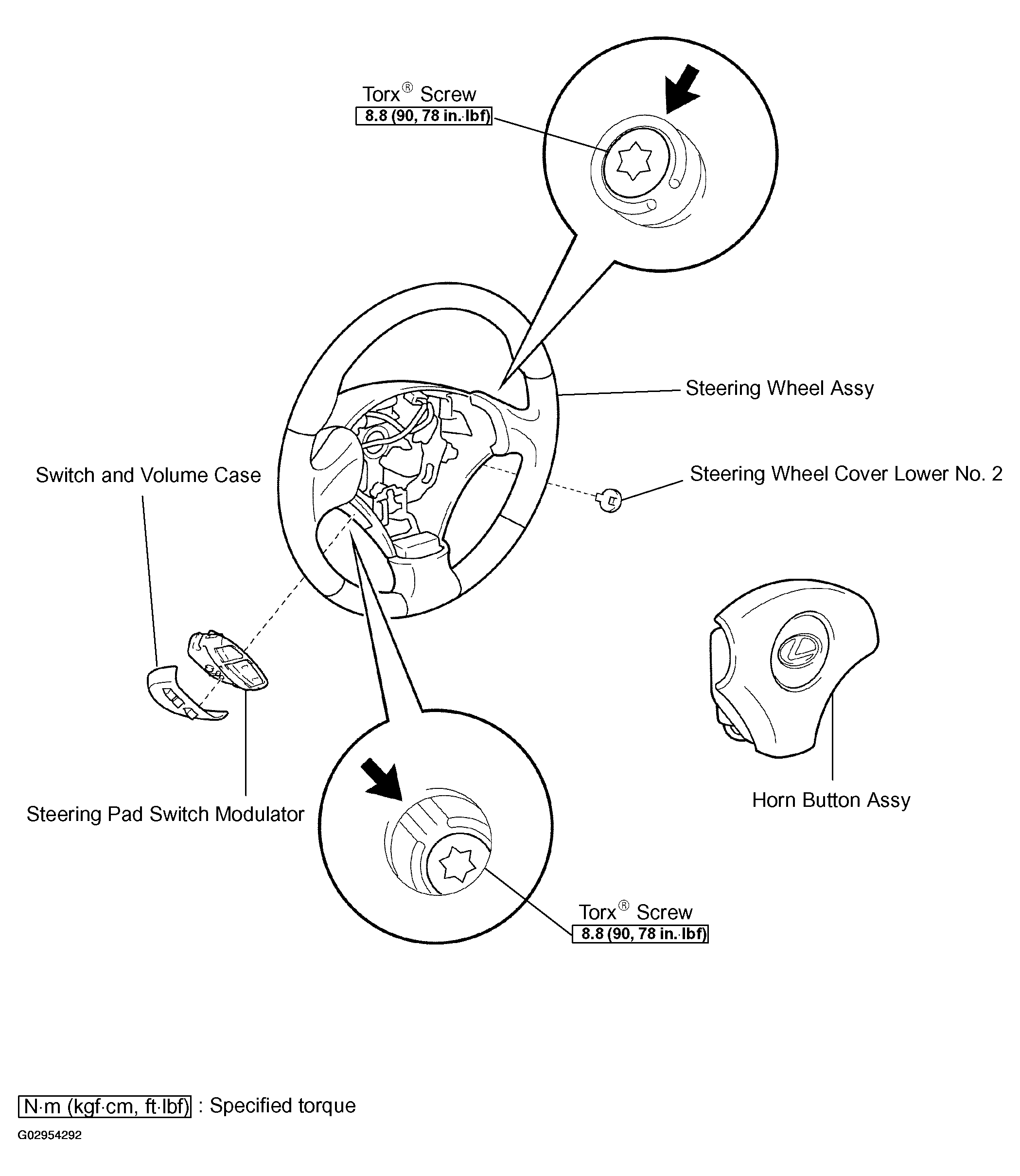

Fig 1: Identifying Horn Button Assy Components & Replacements

G02954292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
