DTC P2121: Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance: Wiring Diagram

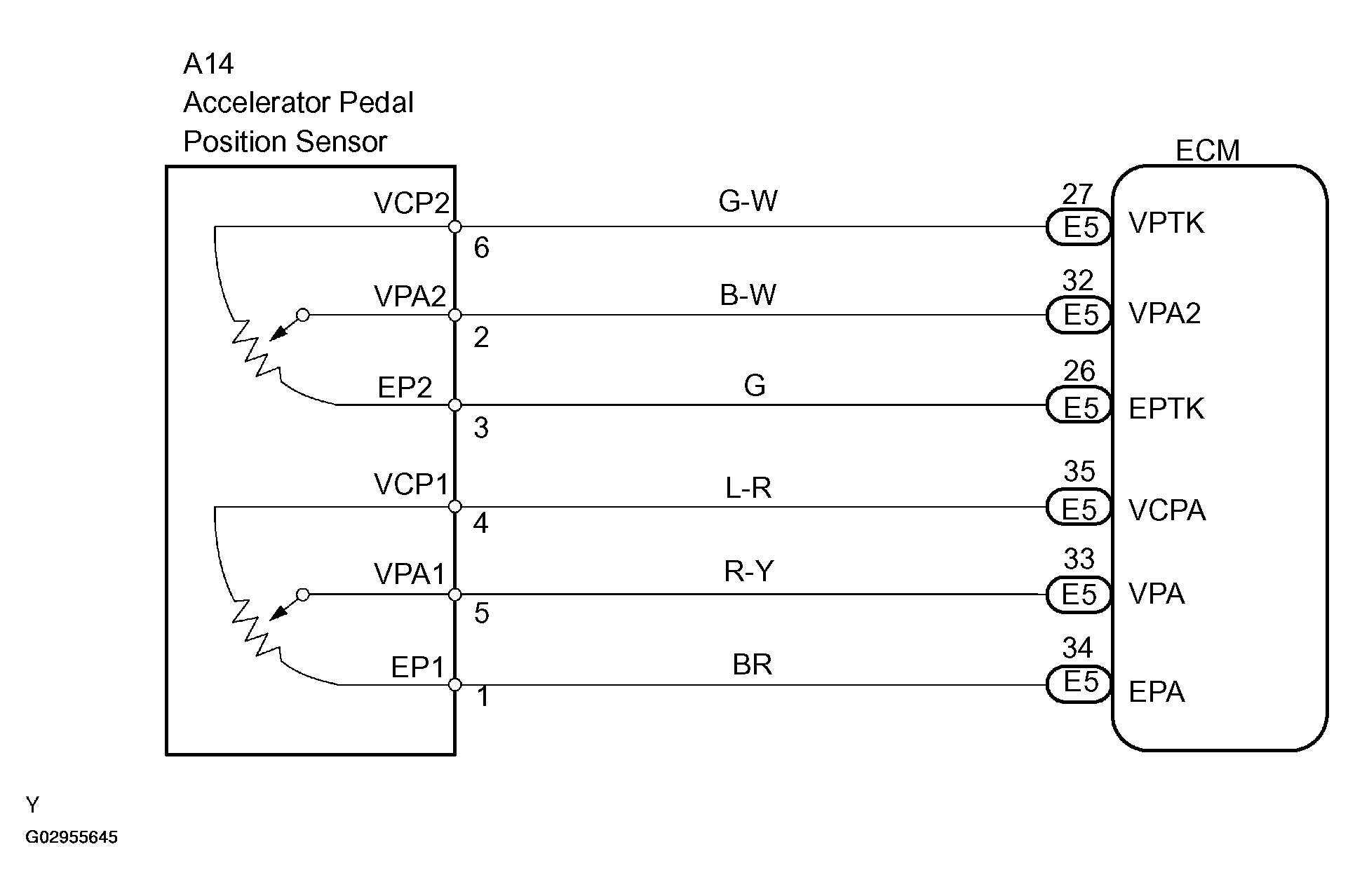

Fig 1: Throttle/Pedal Position Sensor/Switch Wiring Diagram
G02955645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
