DTC P0134, P0154: Oxygen Sensor Circuit No Activity Detected (Bank 1, Sensor 1)/(Bank 2, Sensor 1): Wiring Diagram

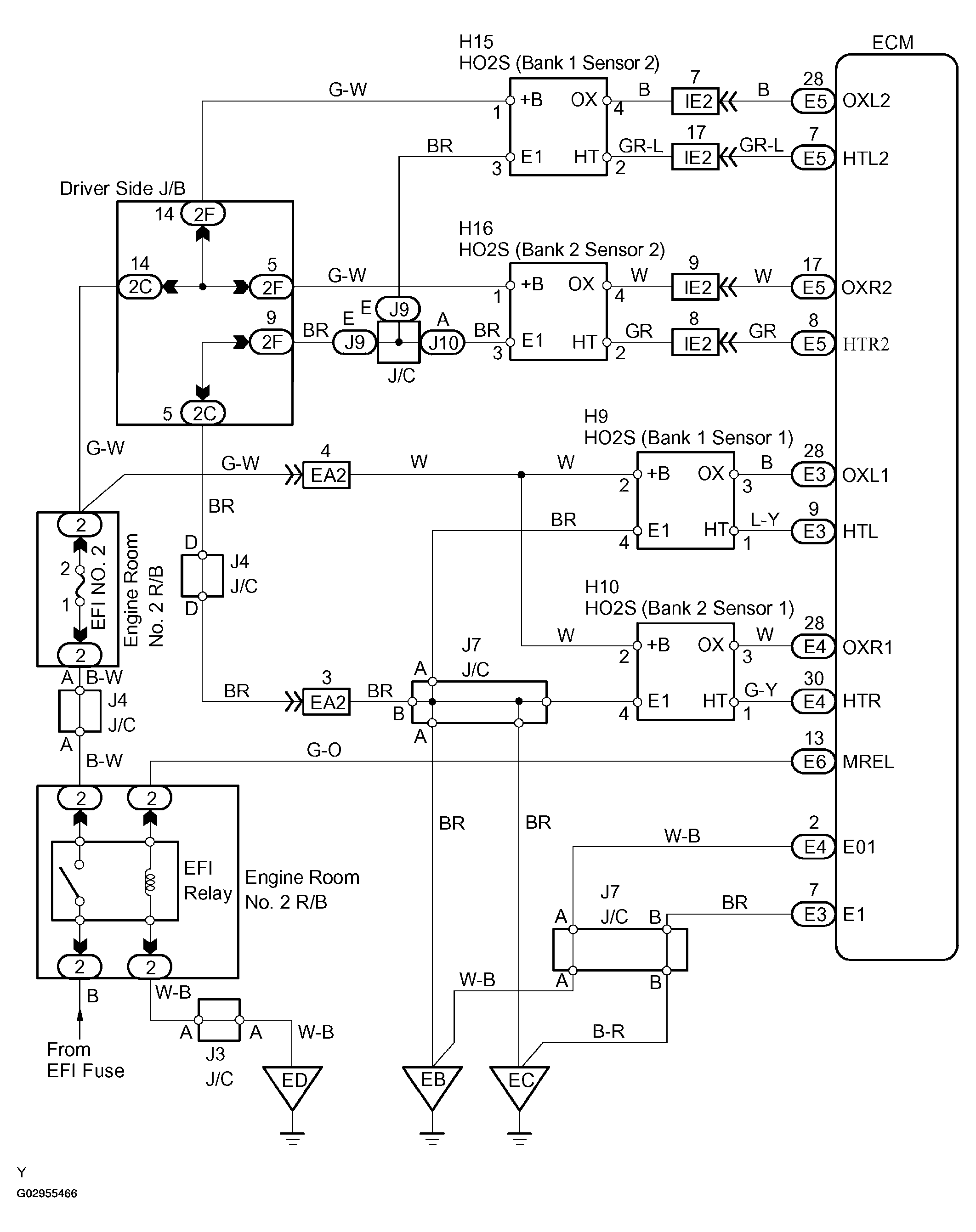

Fig 1: Oxygen Sensor Wiring Diagram

G02955466

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
