Monitor Description
The ECM uses the Heated Oxygen Sensor (HO2S) information to regulate the air-fuel ratio close to a stoichiometric ratio. This maximizes the catalytic converter's ability to purify the exhaust gases. The sensor detects oxygen levels in the exhaust gas and sends this signal to the ECM.

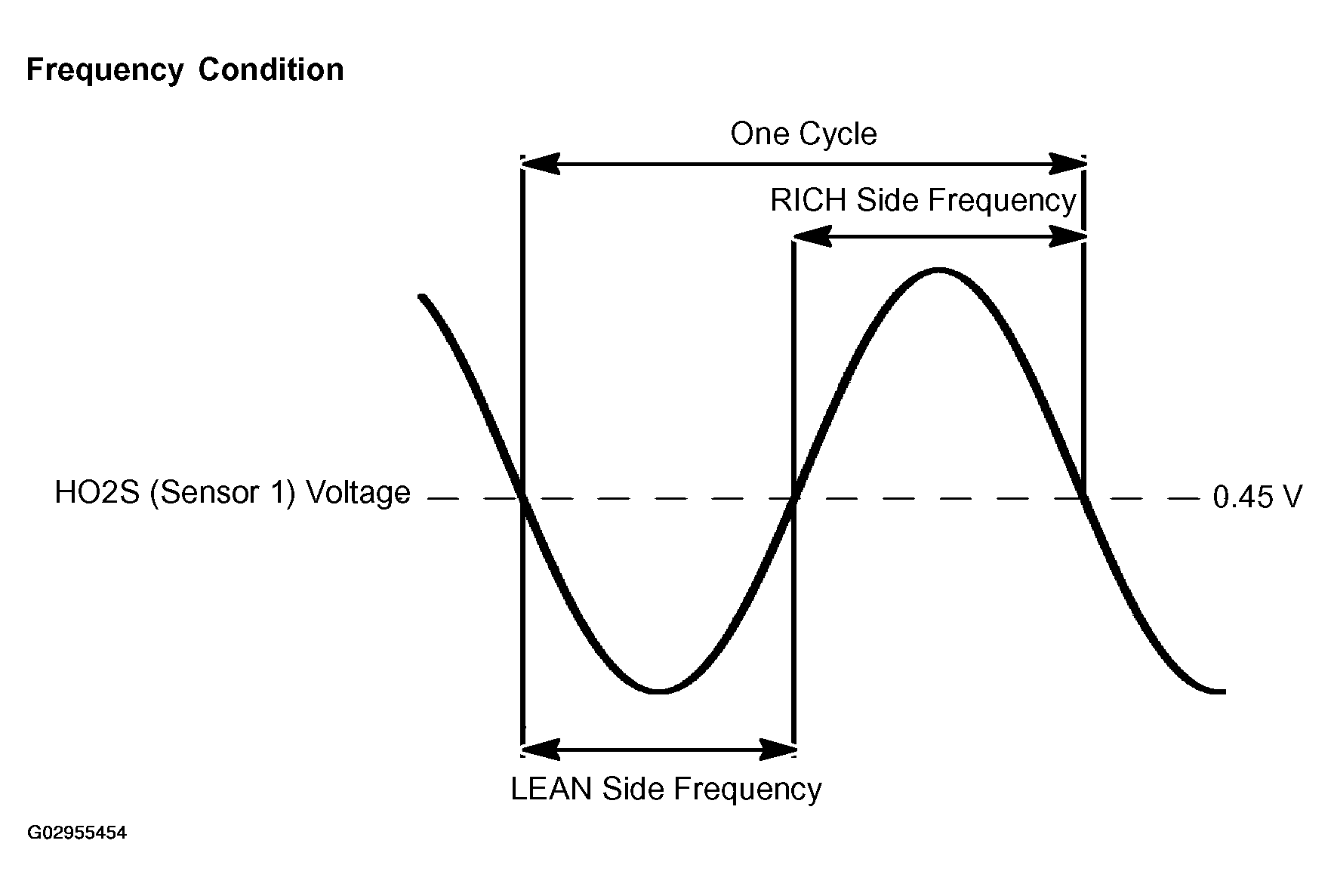

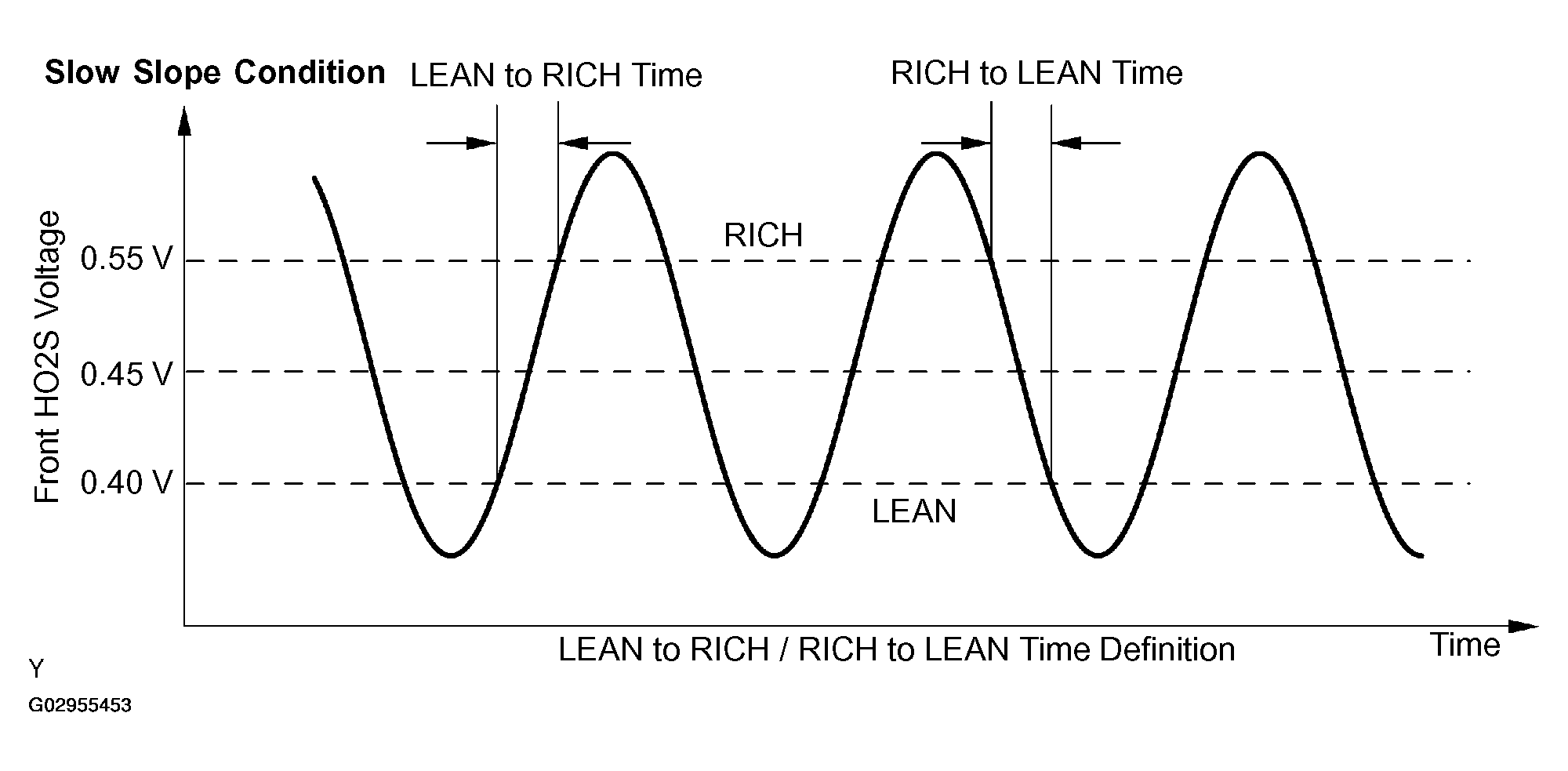

The inner surface of the sensor element is exposed to outside air. The outer surface of the sensor element is exposed to the exhaust gases. The sensor element is made of platinum coated zirconia and includes an integrated heating element. The HO2S's output voltage changes suddenly in the vicinity of the stoichiometric air-fuel ratio. The HO2S generates waveforms of a voltage between 0.1 V and 0.9 V in response to the oxygen concentration in the exhaust gas. When the HO2S voltage is 0.45 V or more, the ECM judges that the air-fuel ratio is RICH. When it is 0.45 V or less, the ECM judges that the air-fuel ratio is LEAN. The ECM monitors the response feature of the HO2S. If the response time of the HO2S status change from RICH to LEAN or vice versa becomes longer, the ECM interprets this as a malfunction in the HO2S and sets a DTC.
