Monitor Strategy

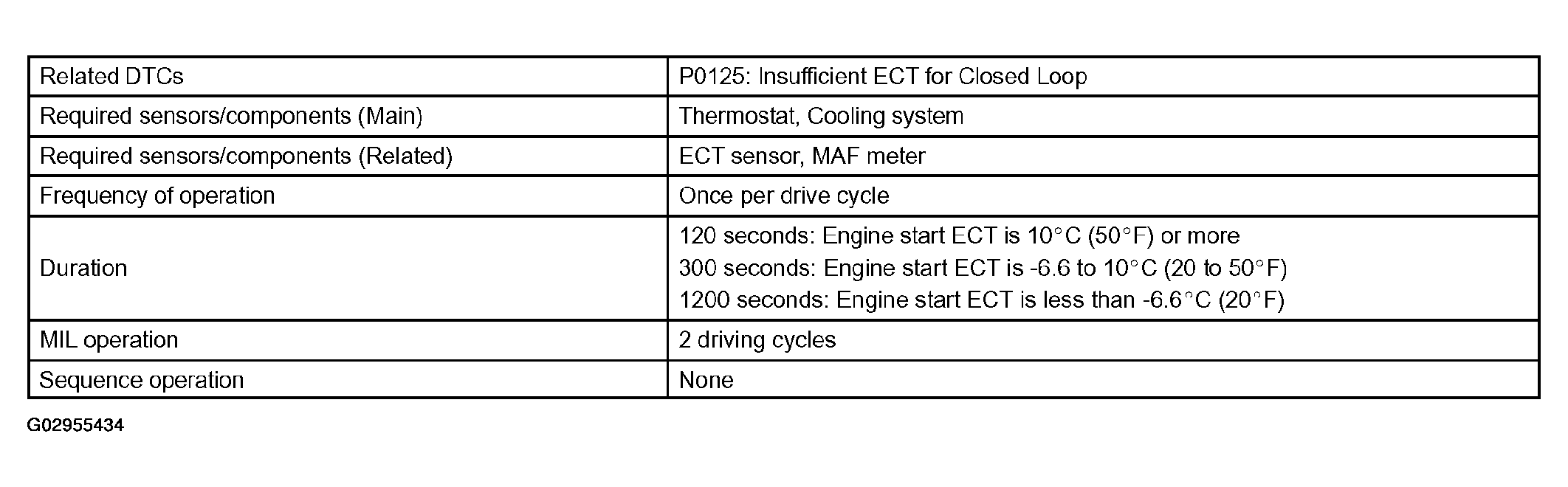

Fig 1: Monitor Strategy Table
G02955434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
