Home >> Lexus >> 2005 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> System >> SFI System - Diagnostics >> DTC P0100, P0102, P0103: Mass Or Volume Air Flow Circuit, Mass Or Volume Air Flow Circuit Low/High Input >> Monitor Strategy

Monitor Strategy

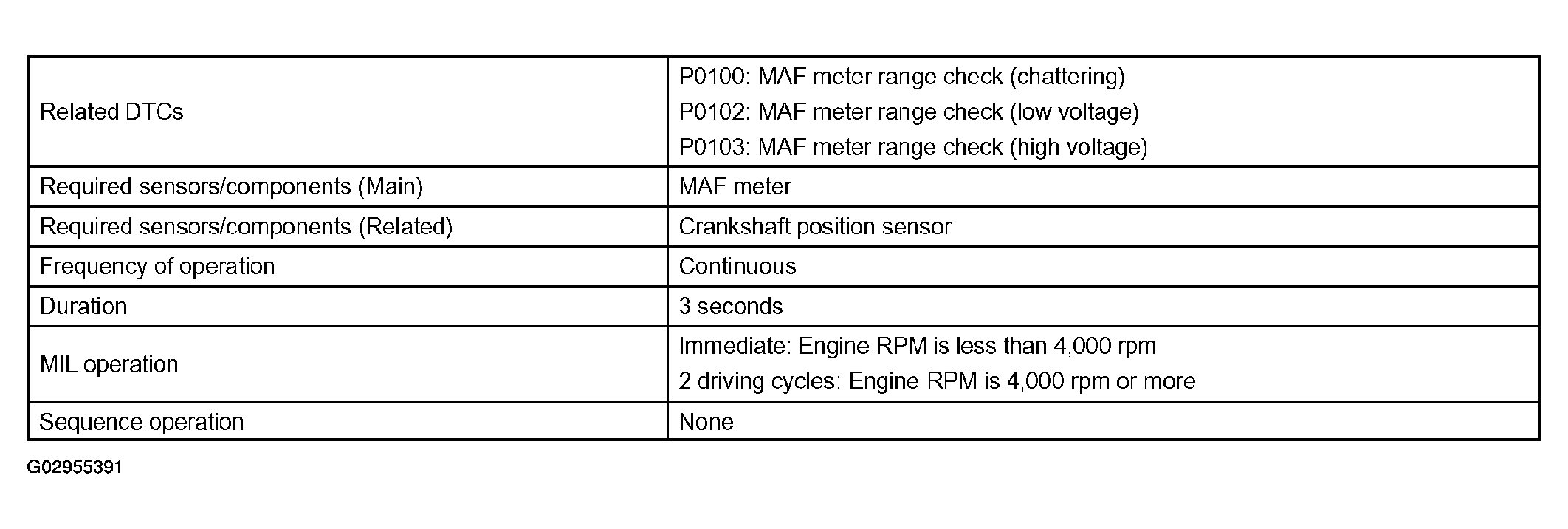

Fig 1: Monitor Strategy Table
G02955391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
