Ignition Or Starter Switch ASSY: Replacement

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO. 1 (See  REPLACEMENT  )
  3. REMOVE IGNITION OR STARTER SWITCH ASSY
    1. Disconnect the ignition switch connector and unlock warning switch connector.
    2. Remove the clamp.
    3. Remove the 2 screws and ignition switch.

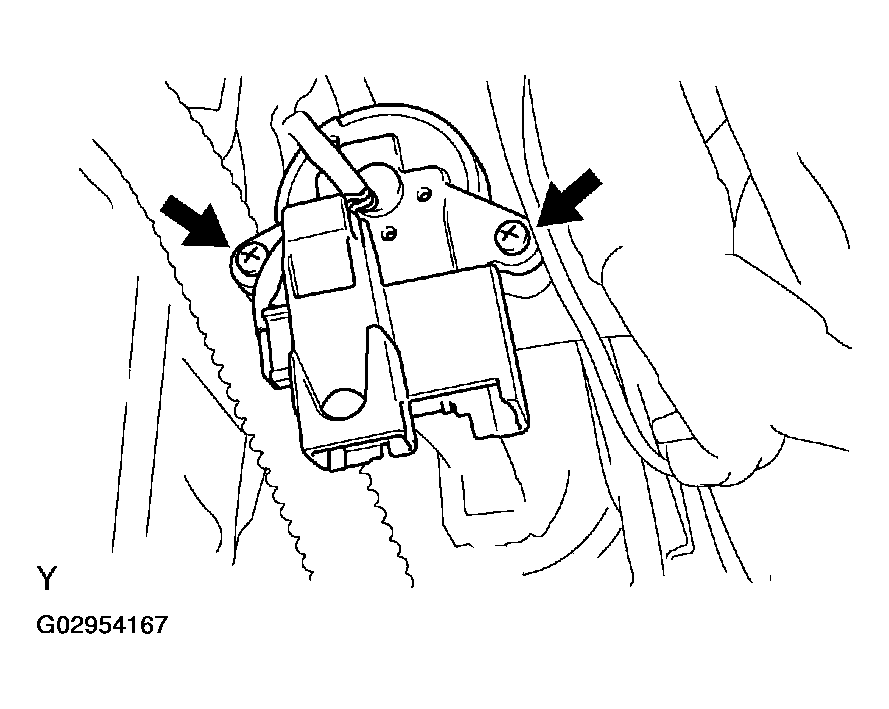

      Fig 1: Removing Ignition Or Starter Switch Assy
      G02954167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL IGNITION OR STARTER SWITCH ASSY
    1. Install the ignition switch with the 2 screws.
    2. Install the clamp.
    3. Connect the ignition switch connector and unlock warning switch connector.
  5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO. 1 (See  REPLACEMENT  )
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION (See  INITIALIZATION  )
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
