Combination Meter Inner Circuit

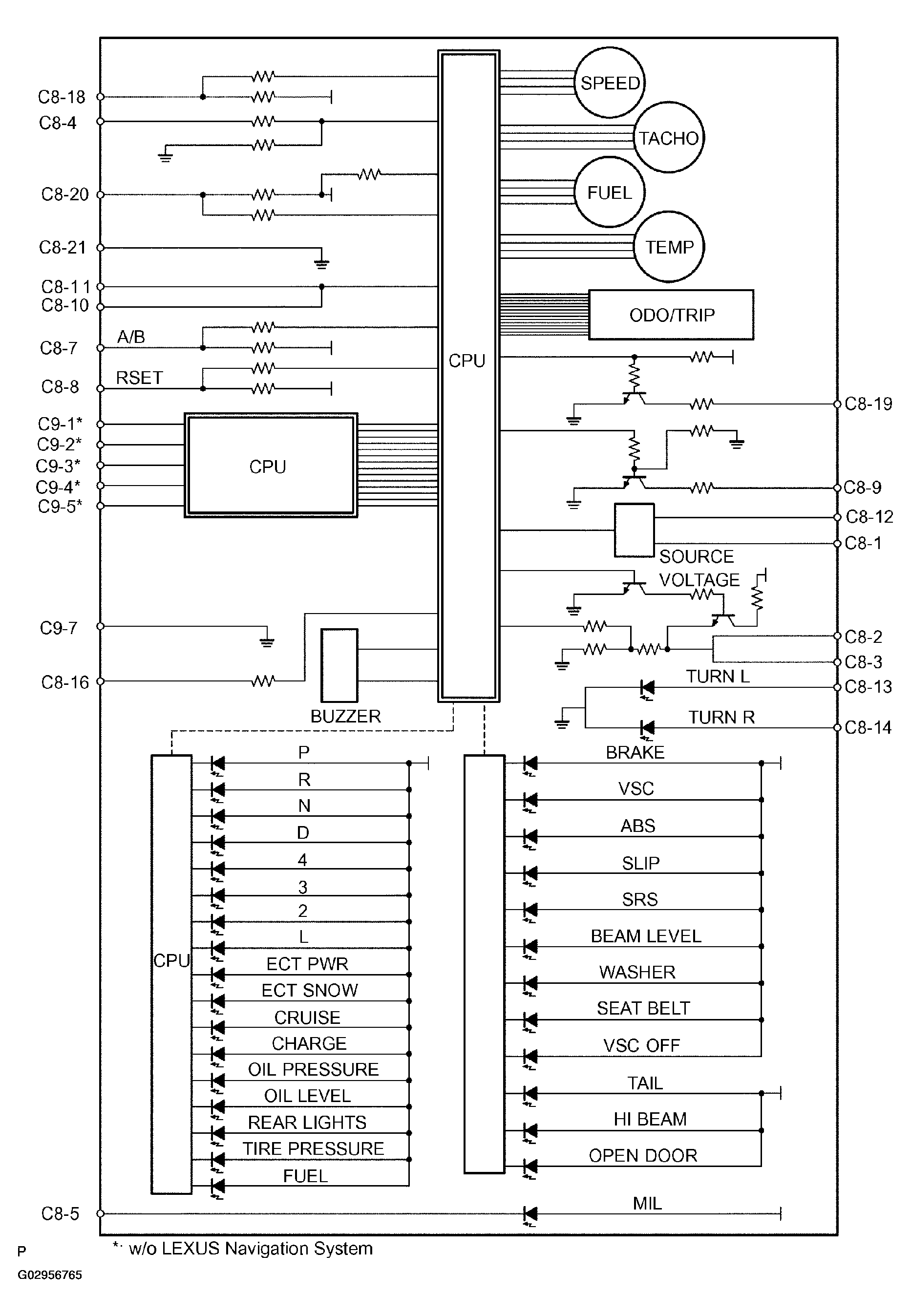

Fig 1: Identifying Combination Meter Inner Circuit Diagram (1 Of 2)
G02956765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

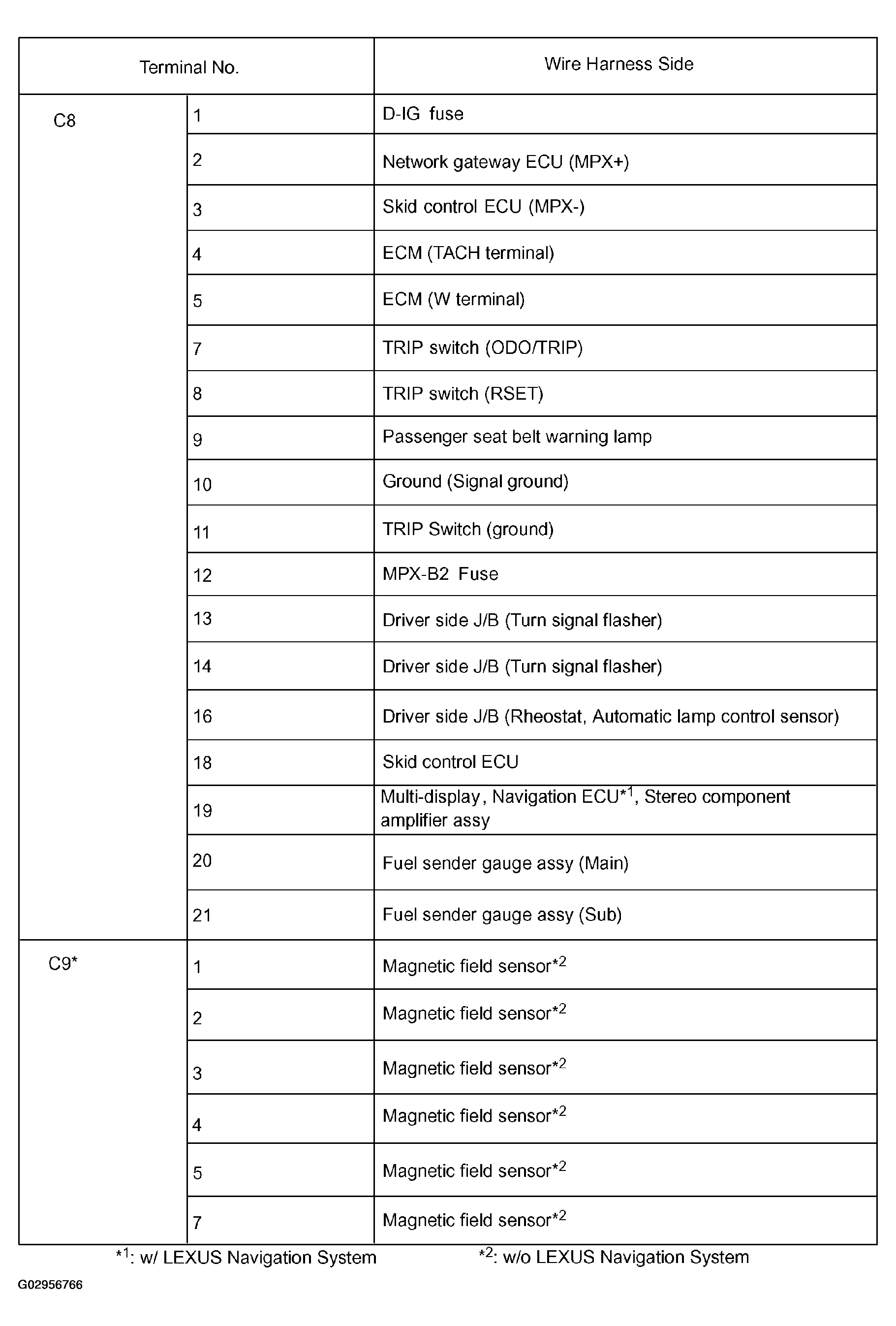

Fig 2: Identifying Combination Meter Inner Circuit Diagram (2 Of 2)
G02956766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
