Inspection Procedure

1. Select the ACTIVE TEST, use the hand-held tester to generate a control command and then check that the tachometer operates.

   Combination meter assy:

   TACHOMETER



   Item	Test Details	Diagnostic Note
   TACHOMETER	Tachometer operation (rpm) 0/1000/2000/3000/4000/5000/6000/7000	Confirm that vehicle is stopped and engine is idling

   OK: The meter operates normally.

1. NG: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
2. OK: Go to next step.

1. Check the DATA LIST for proper functioning of the tachometer.

   Combination meter assy:

   Fig 1: Tachometer Data List Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Engine speed on tester is almost equal to the actual engine speed.

1. NG: Go to step   3
2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )

1. Using an oscilloscope, check the signal waveform of the ECM.

   Standard:

   ECM (TACH)



   Tester Connection	Tester Range	Vehicle Condition
   E5-16 (TACH) - E3-7 (E1)	10 V/DIV., 20 msec./DIV.	Engine idling

   OK: As shown in  Fig 2

HINT:

• As the engine speed increases, the wavelength shortens.
• Connect the tester's positive (+) lead to TACH terminal and negative (-) lead to E1 terminal.

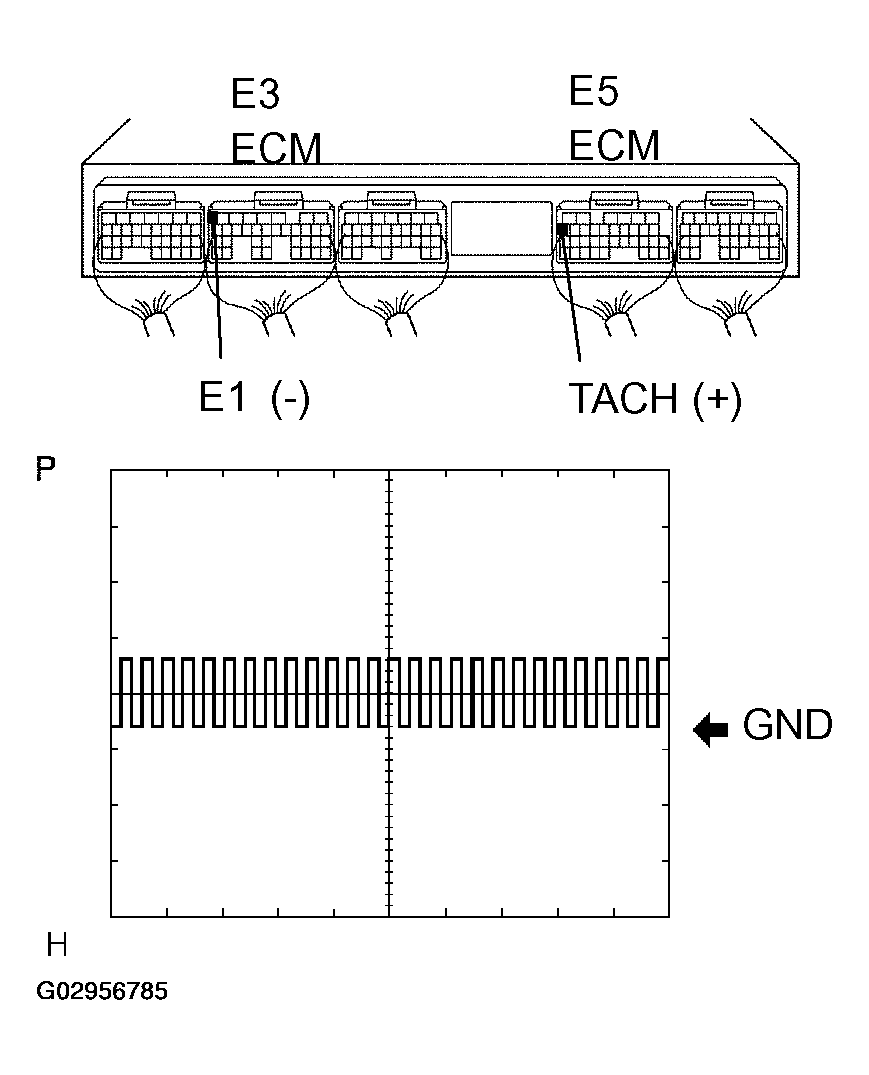

  Fig 2: Checking ECM (Tach)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: Go to  SFI SYSTEM - DIAGNOSTICS
2. OK: Go to next step.

1. Using an oscilloscope, check the signal waveform of the meter.

   Standard:

   COMBINATION METER ASSY



   Tester Connection	Tester Range	Vehicle Condition
   C8-4 (S) - Body ground	10 V/DIV., 20 msec./DIV.	Engine idling

   OK: As shown in  Fig 3

   HINT:

   As the vehicle speed increases, the wavelength shortens.

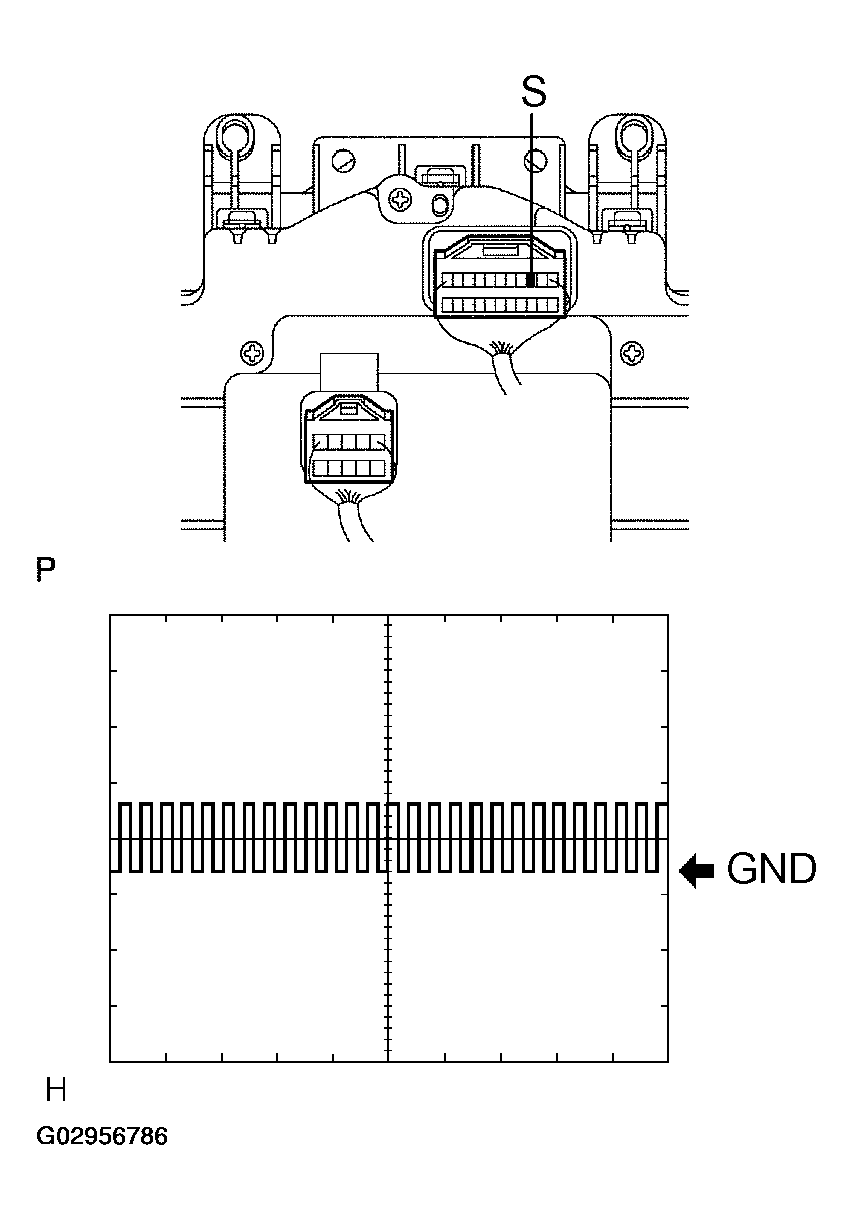

   Fig 3: Checking Combination Meter Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
