Inspection Procedure

  1. PERFORM ACTIVE TEST (SPEEDOMETER)
    1. Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the speedometer operates.

      Combination meter assy:

      SPEEDOMETER

      Item Test Details Diagnostic Note
      SPEED METER 0 (0)/25 (40)/50 (80)/75 (120)/99 (160)/124 (200)/150 (240)/175 (280) km/h (mph) Confirm that vehicle is stopped and engine is idling it is normal that doors will be locked automatically when performing speedometer Active Test. The displayed value has same units (km/h, mph) as main scale of vehicle's speedometer. Needle position should be within acceptable tolerance.

      OK: The meter operates normally.

    1. NG: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
    2. OK: Go to next step.
  2. READ DATA LIST (SPEEDOMETER)
    1. Check the DATA LIST for proper functioning of the speedometer.

      Combination meter assy:

      Fig 1: Speedometer Data List
      G02956779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Vehicle speed on tester is almost equal to the actual vehicle speed.

    1. NG: Go to step   3
    2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
  3. CHECK COMBINATION METER ASSY
    1. Remove the combination meter, but do not disconnect the connectors.
    2. Measure the voltage of the meter.

      Standard:

      Fig 2: Combination Meter Assy Table
      G02956780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

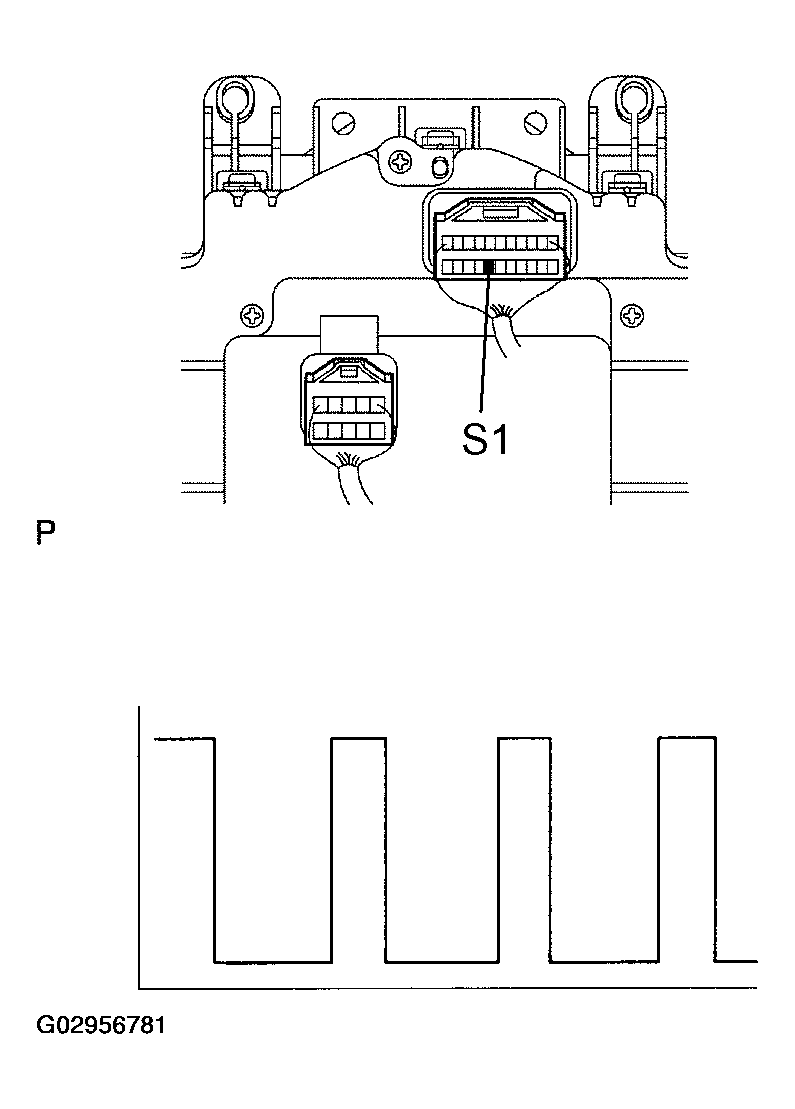

      Fig 3: Checking Combination Meter Assy
      G02956781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step   4
    2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
  4. CHECK WIRE HARNESS (SKID CONTROL ECU WITH ACTUATOR - COMBINATION METER ASSY)
    1. Disconnect the S6 ECU connector.
    2. Disconnect the C8 meter connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      SKID CONTROL ECU WITH ACTUATOR - COMBINATION METER ASSY

      Tester Connection Specified Condition
      S6-16 (SP1) - C8-18 (S1) Below 1 ohms

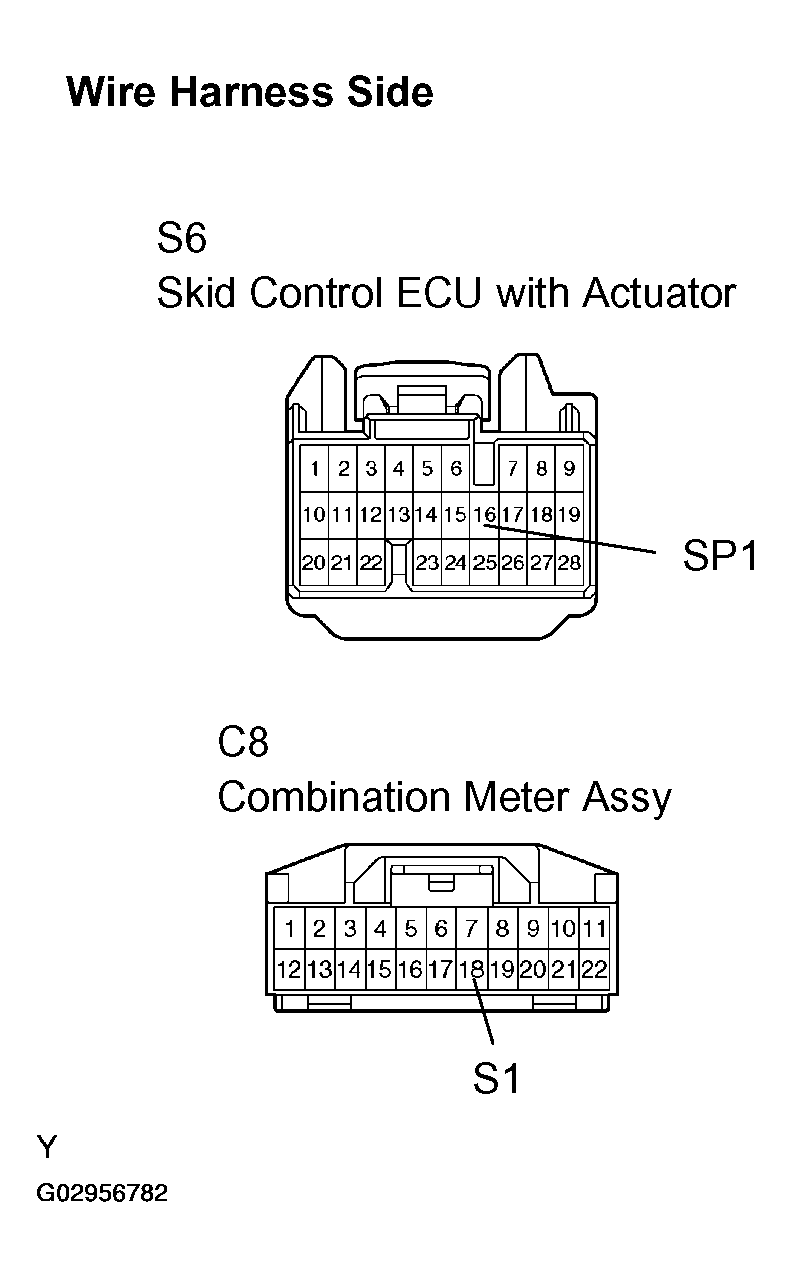

      Fig 4: Checking Wire Harness (Skid Control ECU With Actuator - Combination Meter Assy)
      G02956782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to  ABS WITH EBD & BA & TRAC & VSC SYSTEM - DIAGNOSTICS
