Combination Meter - Diagnostics: Location

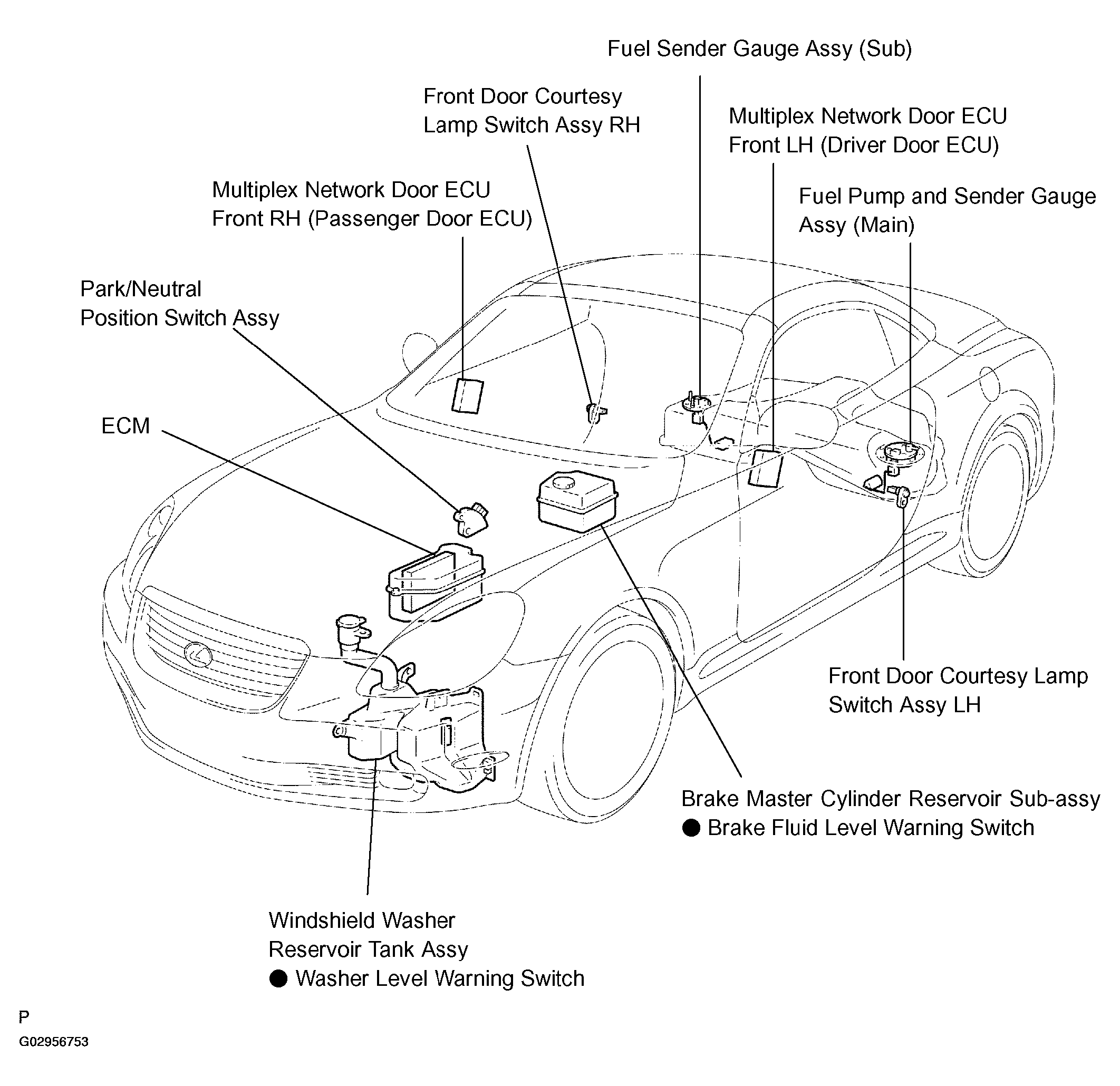

Fig 1: Location Of Combination Meter Components & Replacements (1 Of 3)
G02956753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

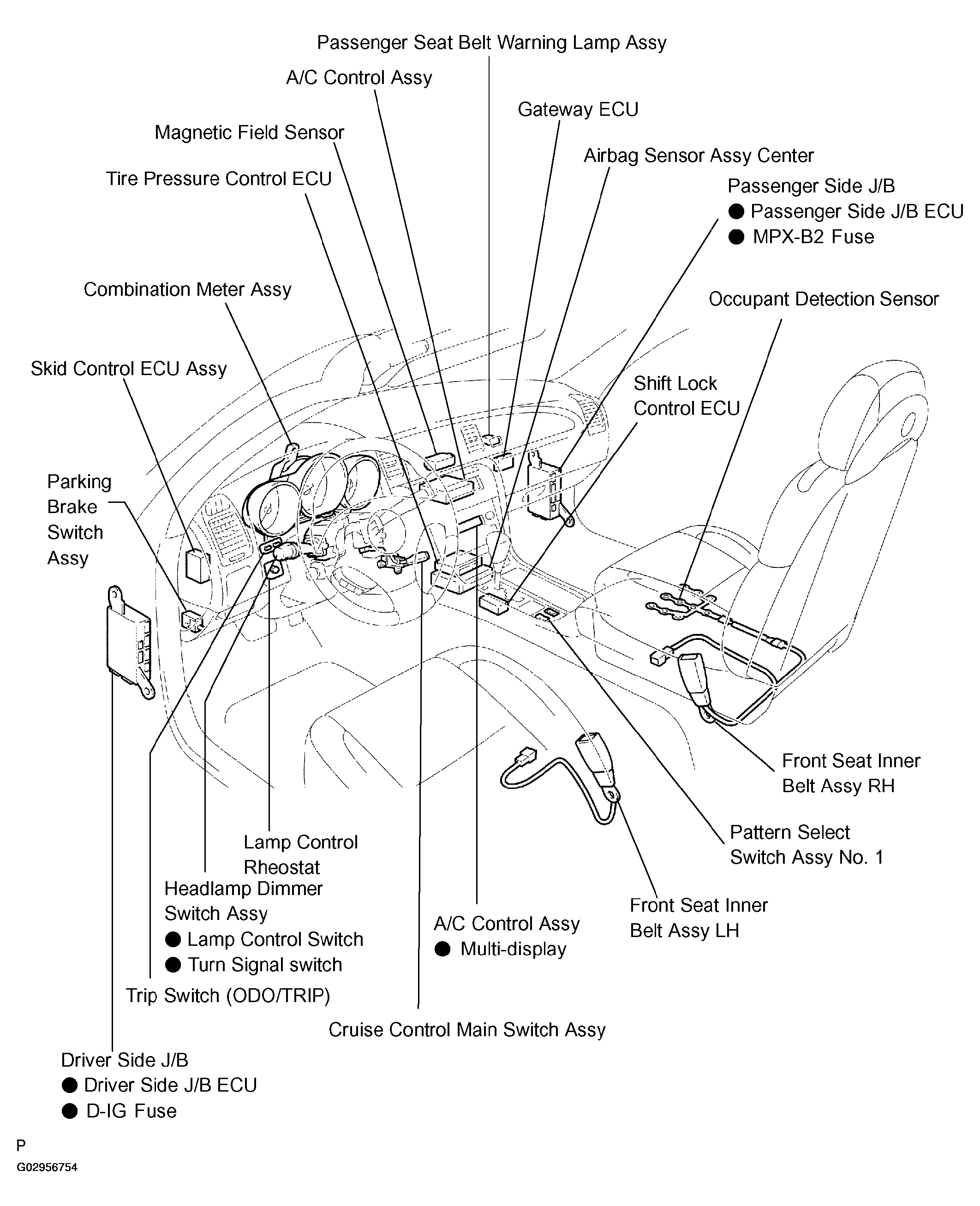

Fig 2: Location Of Combination Meter Components & Replacements (2 Of 3)
G02956754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

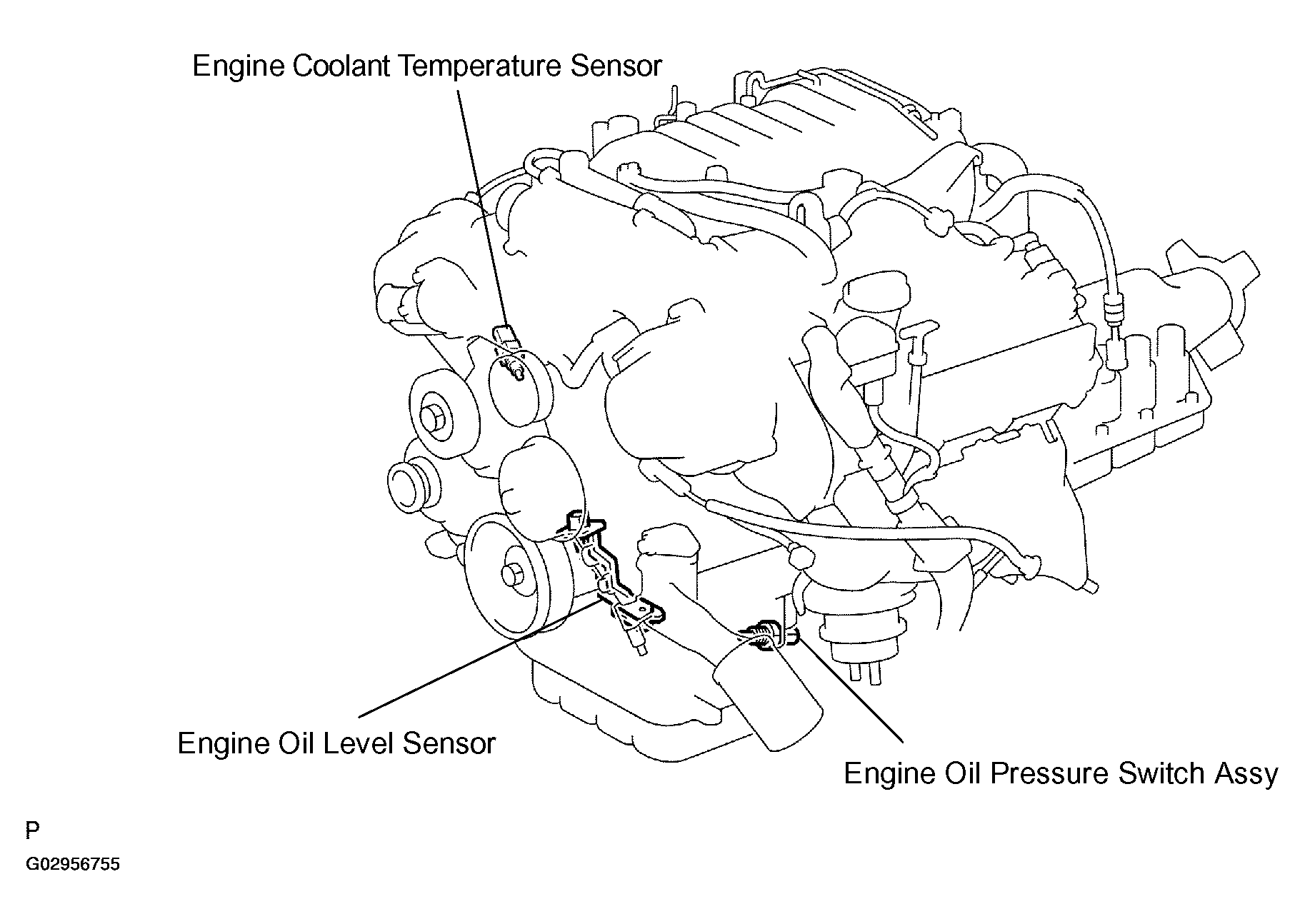

Fig 3: Location Of Combination Meter Components & Replacements (3 Of 3)
G02956755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
