Entire Combination Meter Does Not Operate: Wiring Diagram

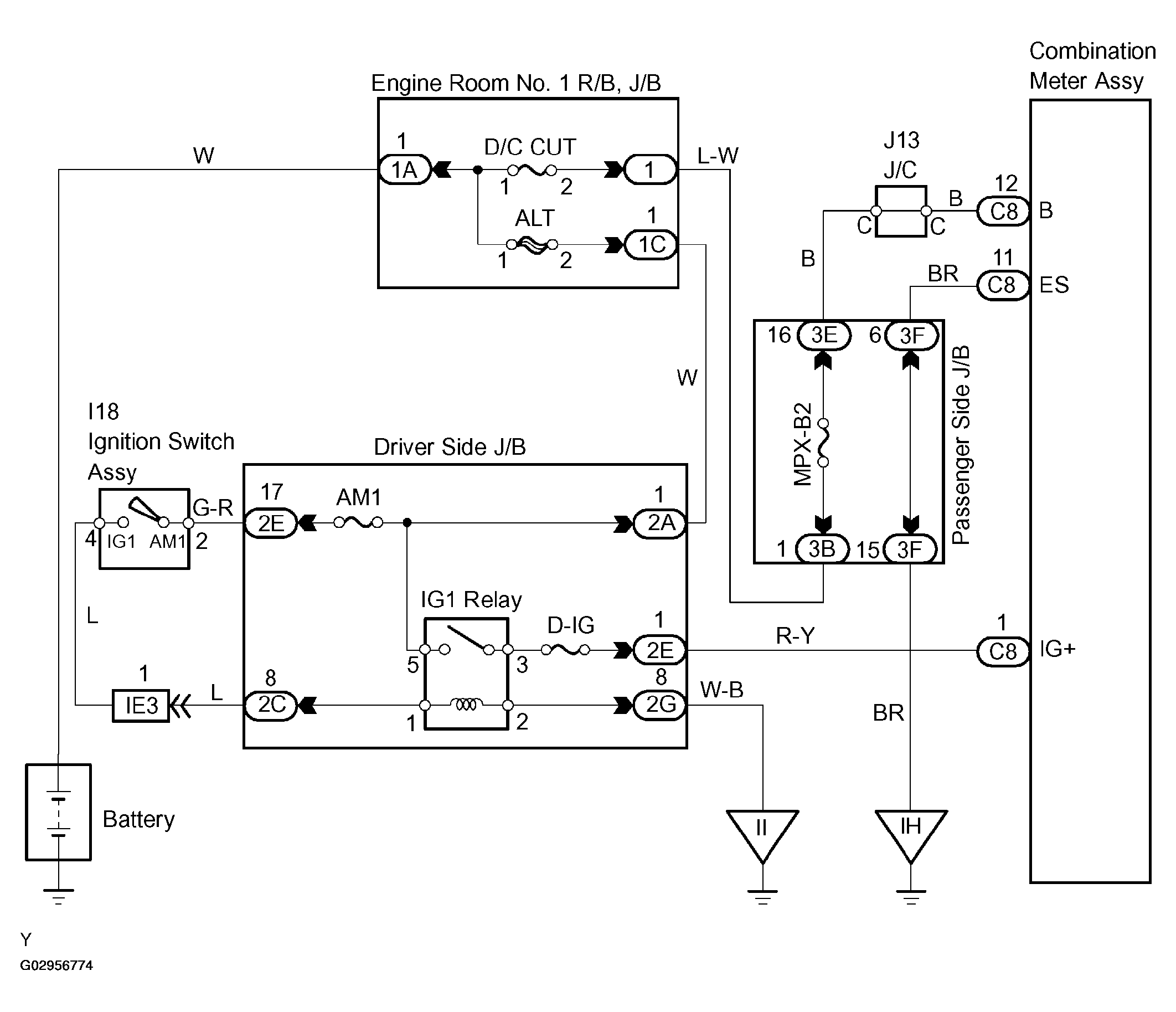

Fig 1: Combination Meter - Wiring Diagram
G02956774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
