Automatic Glare-Resistant EC Mirror
>>
System Diagram
System Diagram

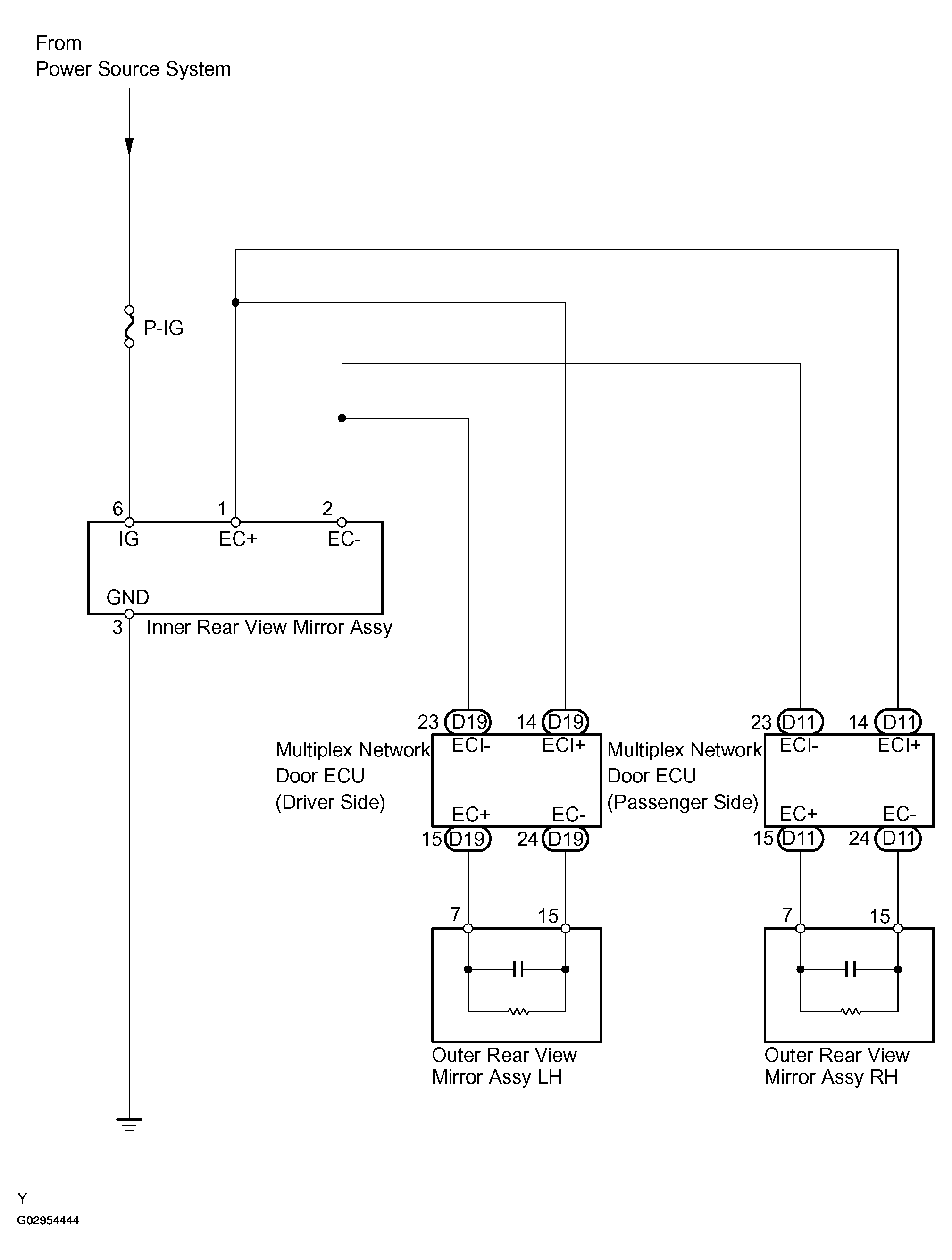

Fig 1: Automatic Glare-Resistant EC Mirror System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
