DTC B1233, B1234: Jam Protection Limit Switch Circuit On Passenger Door, Jam Protection Pulse Switch Circuit On Passenger Door: Wiring Diagram

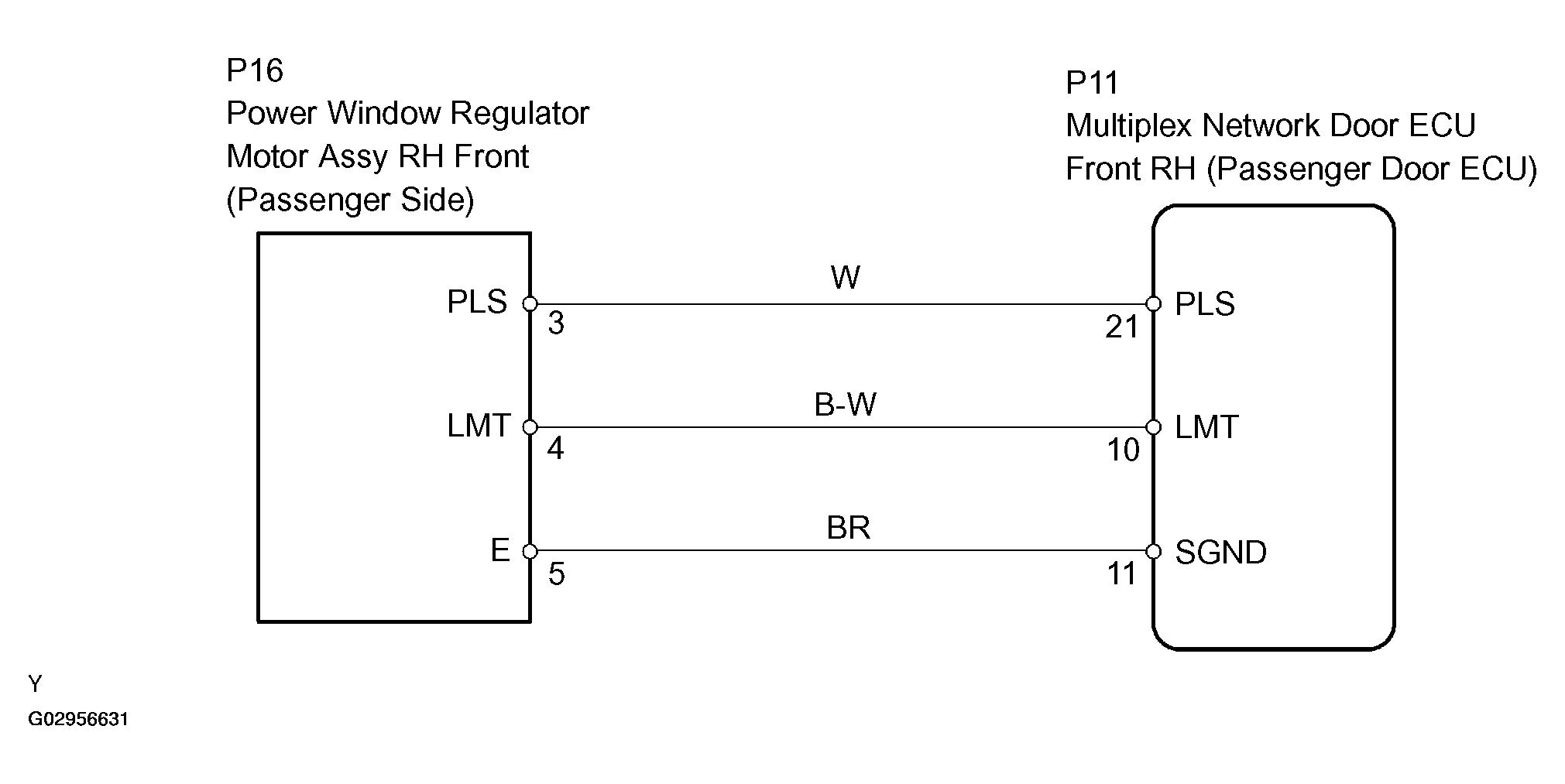

Fig 1: Jam Protection Limit/Pulse Switch Circuit On Passenger Door Wiring Diagram
G02956631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
