DTC B1231, B1232: Jam Protection Limit Switch Circuit On Driver Door, Jam Protection Pulse Switch Circuit On Driver Door: Wiring Diagram

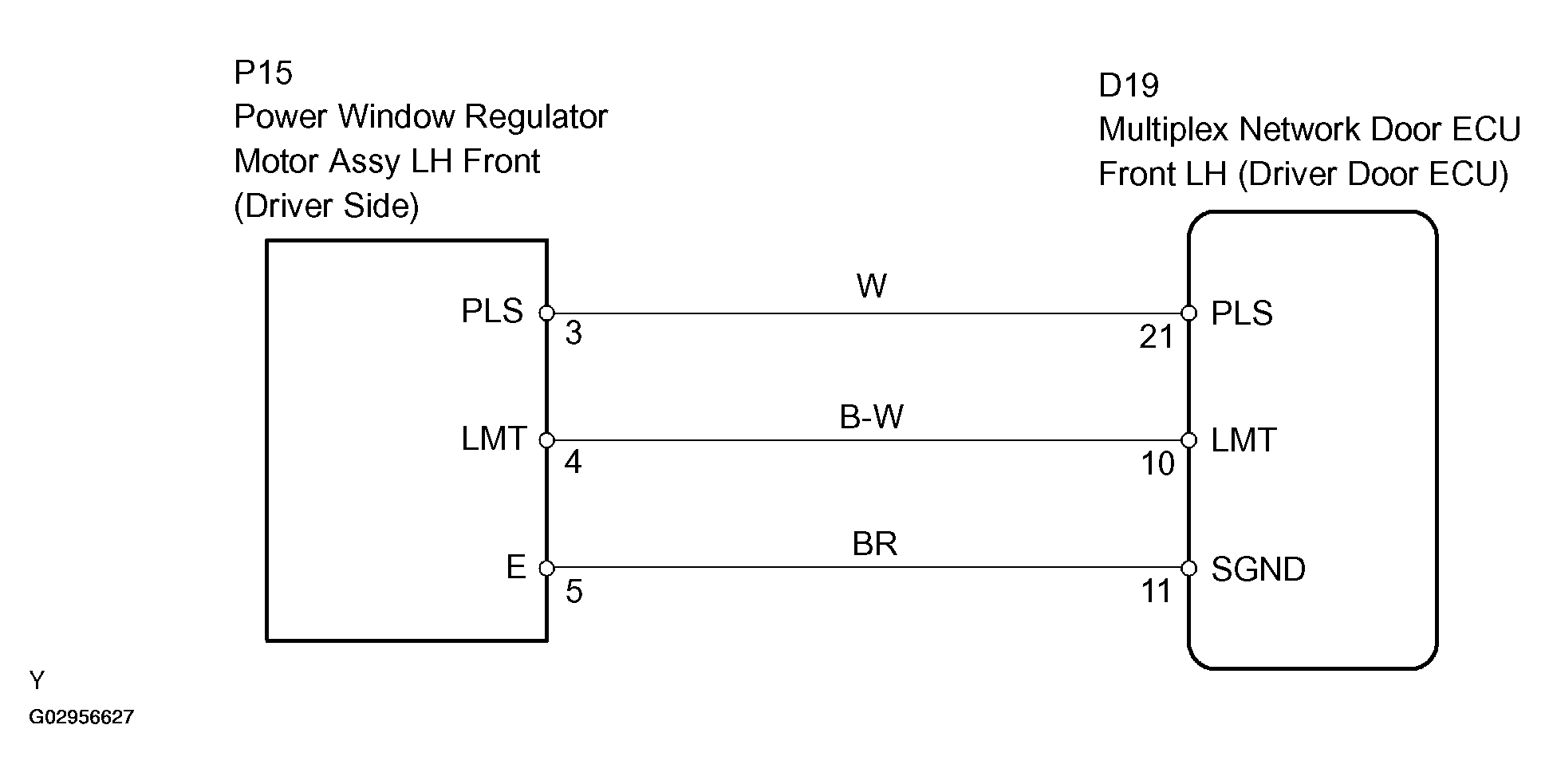

Fig 1: Jam Protection Limit/Pulse Switch Circuit On Driver Door Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
