Back Window Frame Sub-ASSY Upper: Components

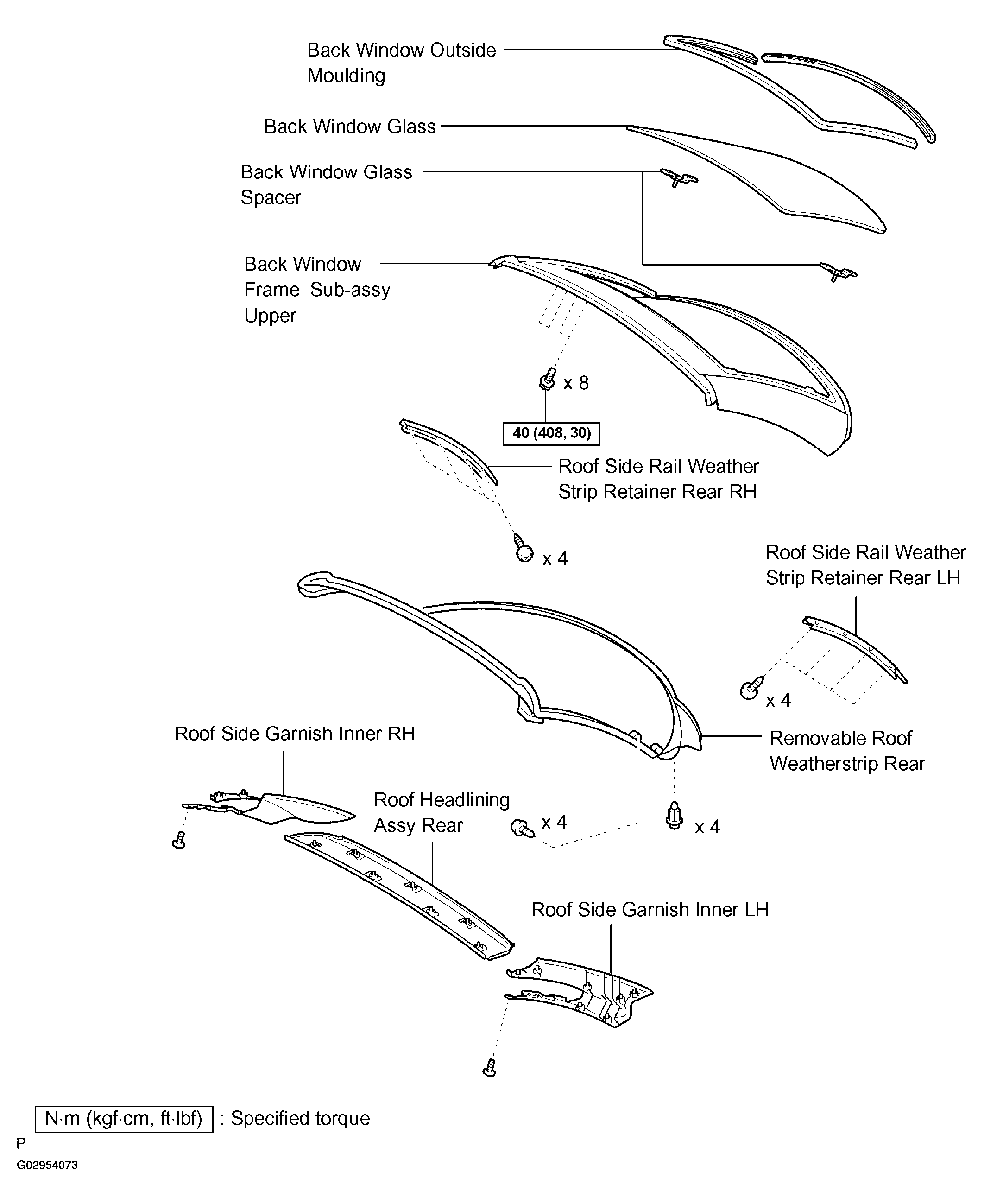

Fig 1: Exploded View Of Back Window Frame Sub-Assy Upper Components

G02954073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
