Seat Heater System: Inspection

INSPECT RELAY (Marking: IG1)

Measure the resistance of the IG1 relay.

Standard:

RELAY (MARKING: IG1)

Tester Connection	Specified Condition
3 - 5	10 k ohms or higher
3 - 5	Below 1 ohms (when battery voltage is applied to terminals 1 and 2)

If the result is not as specified, replace the relay.

Fig 1: Identifying Relay (IG1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT SEAT HEATER SWITCH

Measure the resistance of the switch.

Standard:

FRONT SEAT HEATER SWITCH

Tester Connection	Switch Condition	Specified Condition
9 (SWL) - 10 (RVL)	Switch (LH) OFF	10 k ohms or higher
9 (SWL) - 10 (RVL)	Switch (LH) ON (Min.)	2.72 to 4.08 k ohms
9 (SWL) - 10 (RVL)	Switch (LH) ON (Max.)	0.28 to 0.42 k ohms
1 (RVR) - 2 (SWR)	Switch (RH) OFF	10 k ohms or higher
1 (RVR) - 2 (SWR)	Switch (RH) ON (Min.)	2.72 to 4.08 k ohms
1 (RVR) - 2 (SWR)	Switch (RH) ON (Max.)	0.28 to 0.42 k ohms

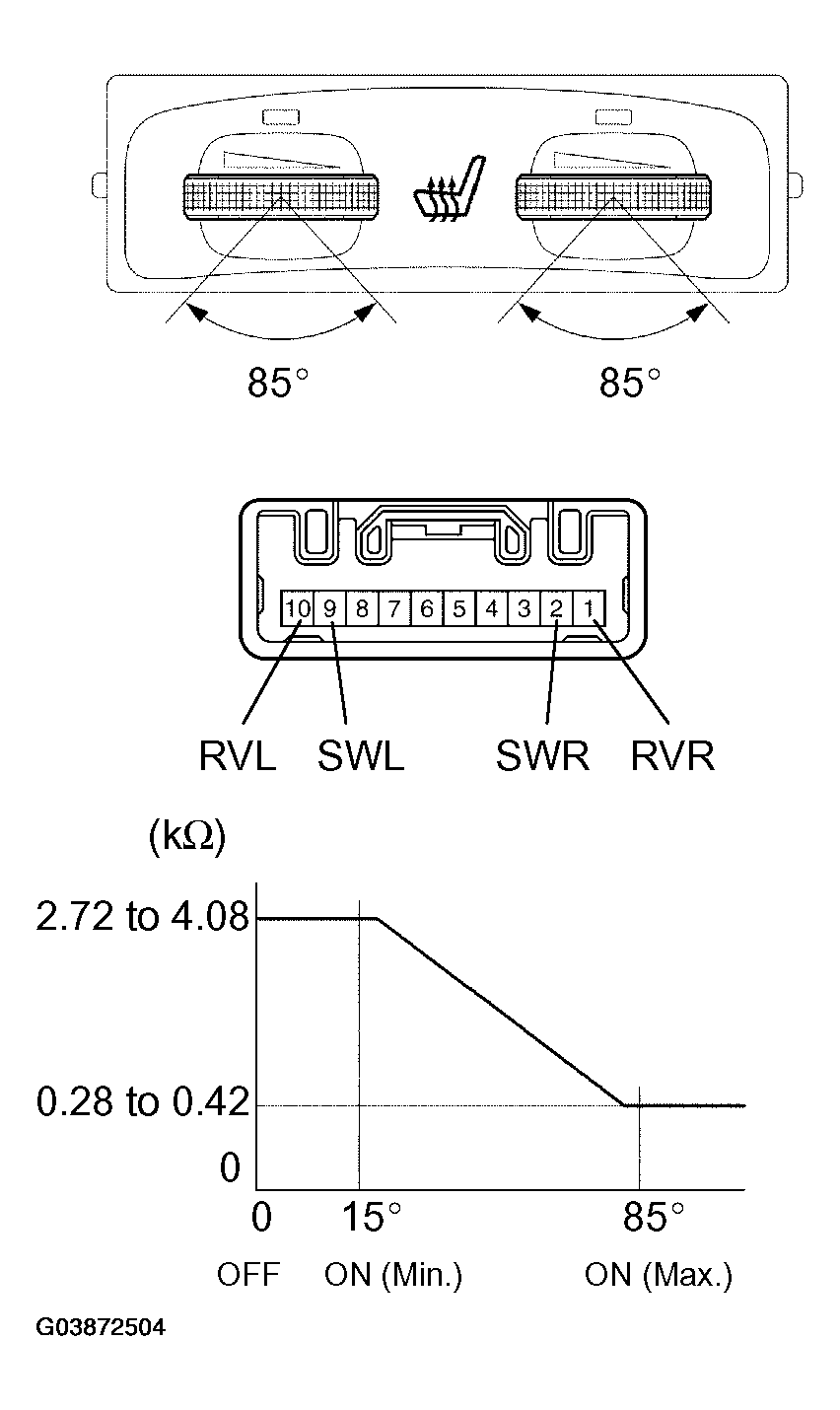

Fig 2: Inspecting Front Seat Heater Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch.

HINT:

As the dial is being turned, the resistance changes gradually.

Check that the seat heater switch indicator lamp illuminates.

OK:

SEAT HEATER SWITCH INDICATOR LAMP ILLUMINATES

Tester Connection	Switch Condition	Specified Condition
3 (IG) - Negative (-) battery 6 (E) - Positive (+) battery	Heater Switch ON	Illuminates

If the result is not as specified, replace the switch.

INSPECT FRONT SEATBACK HEATER ASSY LH

Measure the resistance of the seatback heater.

Standard:

FRONT SEATBACK HEATER ASSY LH (1 OF 2)

Tester Connection	Condition	Specified Condition
1 - 4	Seat heater temp. 20°C (68°F)	Below 1 ohms

Heat the thermostat with a light.

Measure the resistance of the seatback heater.

FRONT SEATBACK HEATER ASSY LH (2 OF 2)

Tester Connection	Condition	Specified Condition
2 - 3	Seat heater temp. 25°C (77°F)	4.9 to 5.1 k ohms
2 - 3	Seat heater temp. 37°C (98.6°F)	2.9 to 3.1 k ohms

If the result is not as specified, replace the seatback heater.

Fig 3: Inspecting Front Seatback Heater Assy LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT SEATBACK HEATER ASSY RH

Measure the resistance of the seatback heater.

Standard:

FRONT SEATBACK HEATER ASSY RH (1 OF 2)

Tester Connection	Condition	Specified Condition
1 - 4	Seat heater temp. 20°C (68°F)	Below 1 ohms

Heat the thermostat with a light.

Measure the resistance of the seatback heater.

FRONT SEATBACK HEATER ASSY RH (2 OF 2)

Tester Connection	Condition	Specified Condition
2 - 3	Seat heater temp. 25°C (77°F)	4.9 to 5.1 k ohms
2 - 3	Seat heater temp. 37°C (98.6°F)	2.9 to 3.1 k ohms

If the result is not as specified, replace the seatback heater.

Fig 4: Inspecting Front Seatback Heater Assy RH

INSPECT FRONT SEAT CUSHION HEATER ASSY LH

Measure the resistance of the seat cushion heater.

Standard:

FRONT SEAT CUSHION HEATER ASSY LH

Tester Connection	Condition	Specified Condition
1 - 2	Seat heater temp. 20°C (68°F)	Below 1.25 ohms

If the result is not as specified, replace the seat cushion heater.

Fig 5: Inspecting Front Seat Cushion Heater Assy LH

INSPECT FRONT SEAT CUSHION HEATER ASSY RH

Measure the resistance of the seat cushion heater.

Standard:

FRONT SEAT CUSHION HEATER ASSY RH

Tester Connection	Condition	Specified Condition
1 - 2	Seat heater temp. 20°C (68°F)	Below 1.25 ohms

If the result is not as specified, replace the seat cushion heater.

Fig 6: Inspecting Front Seat Cushion Heater Assy RH
