Home >> Lexus >> 2005 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Rear Seat >> Components

Rear Seat: Components

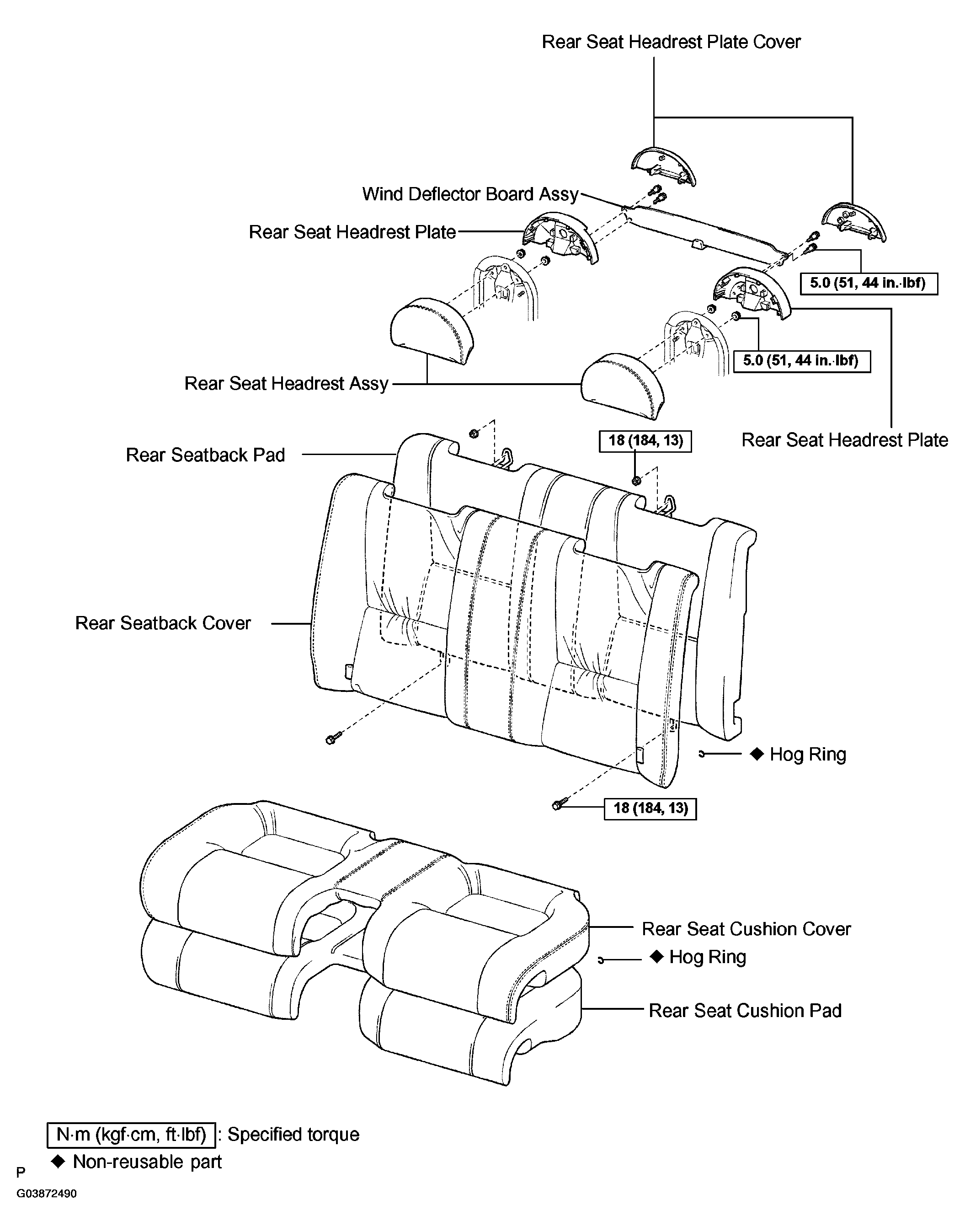

Fig 1: Identifying Rear Seat Components & Replacements

G03872490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
