Lexus
>>
2005
>>
SC 430
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Front Power Seat Control System (W/Memory) - Diagnostics
>>
System Diagram
System Diagram

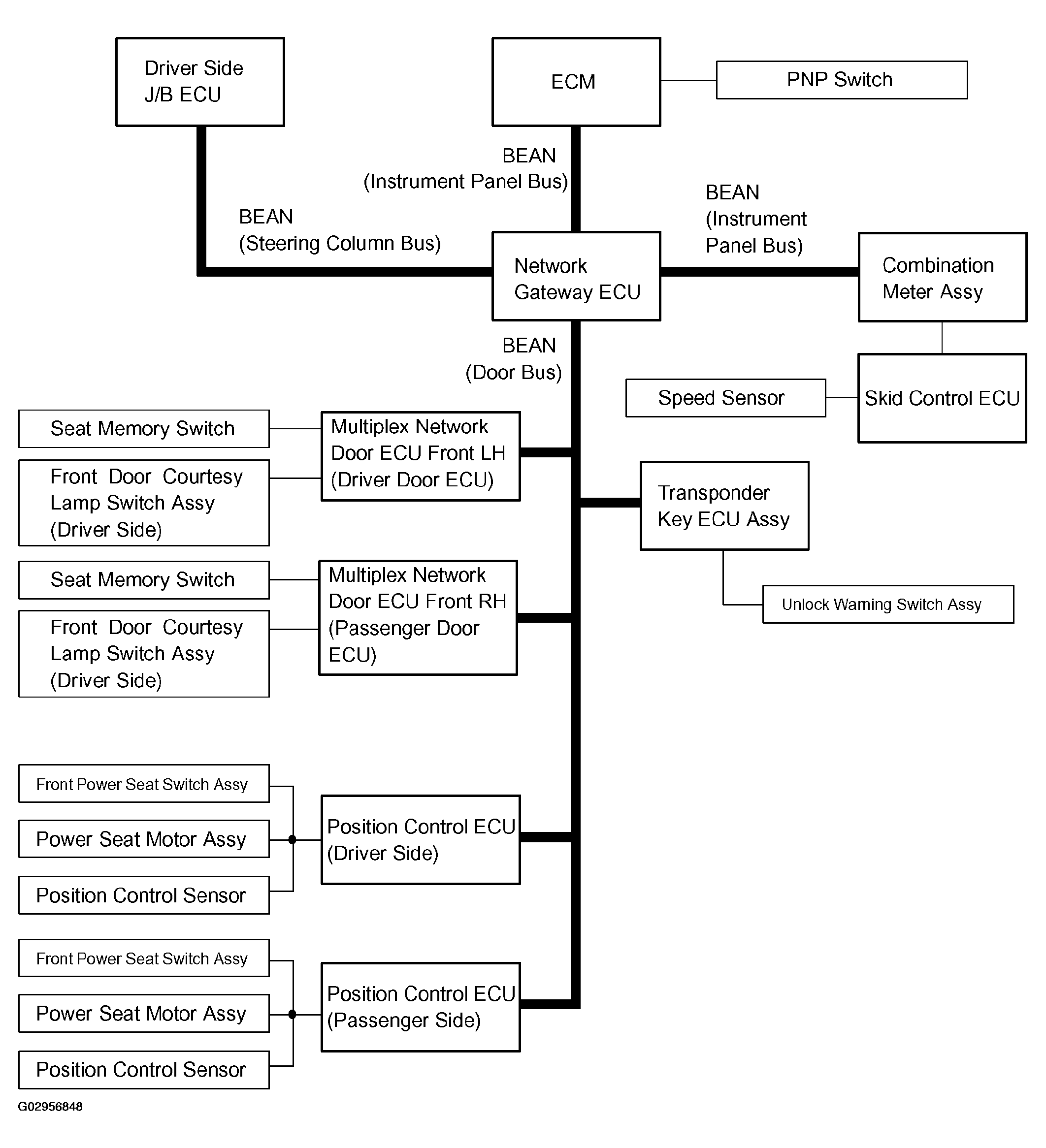

Fig 1: Front Power Seat Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
