Manual Operation Is Impossible: Wiring Diagram

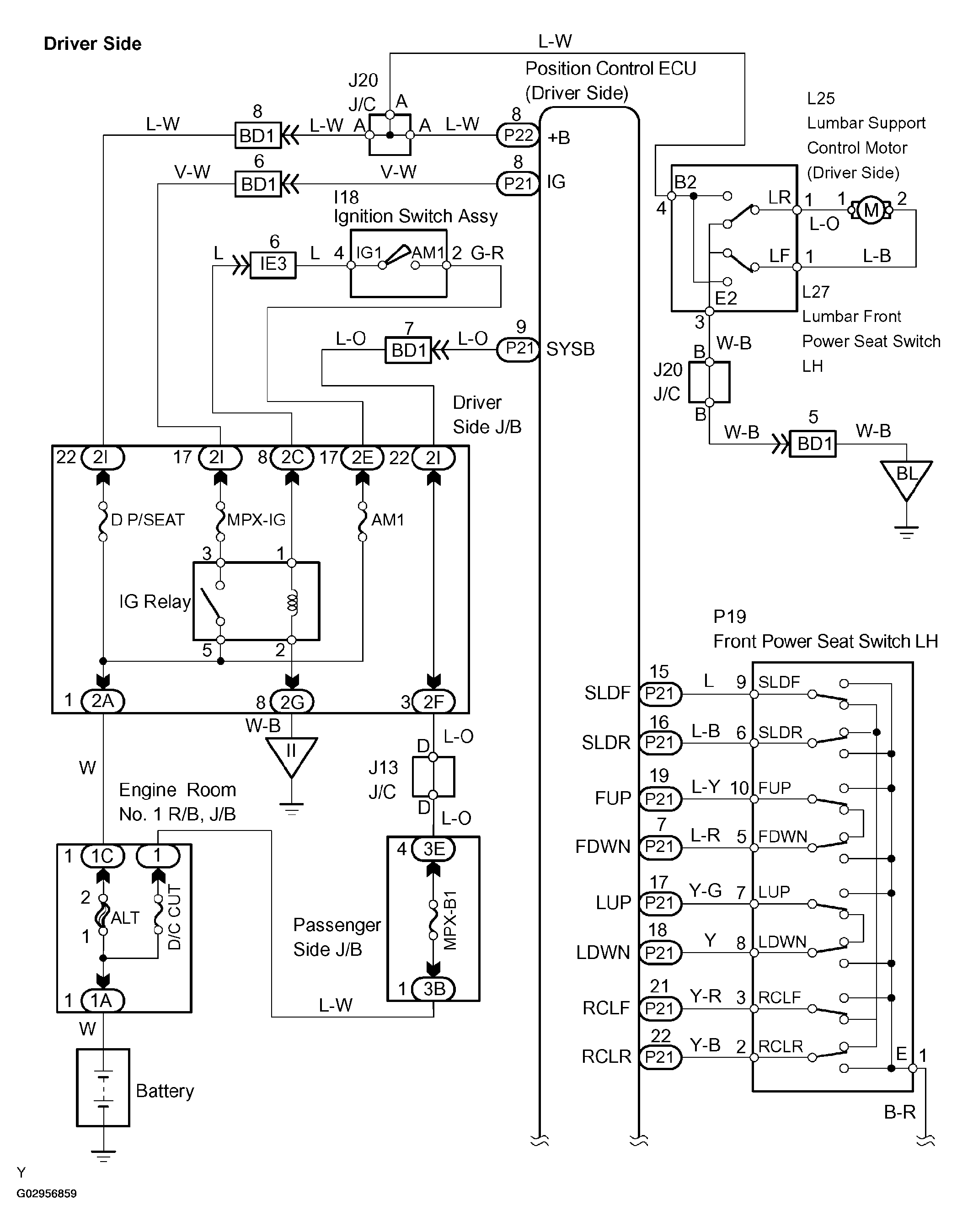

Fig 1: Manual Operation Wiring Diagram (Driver Side - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

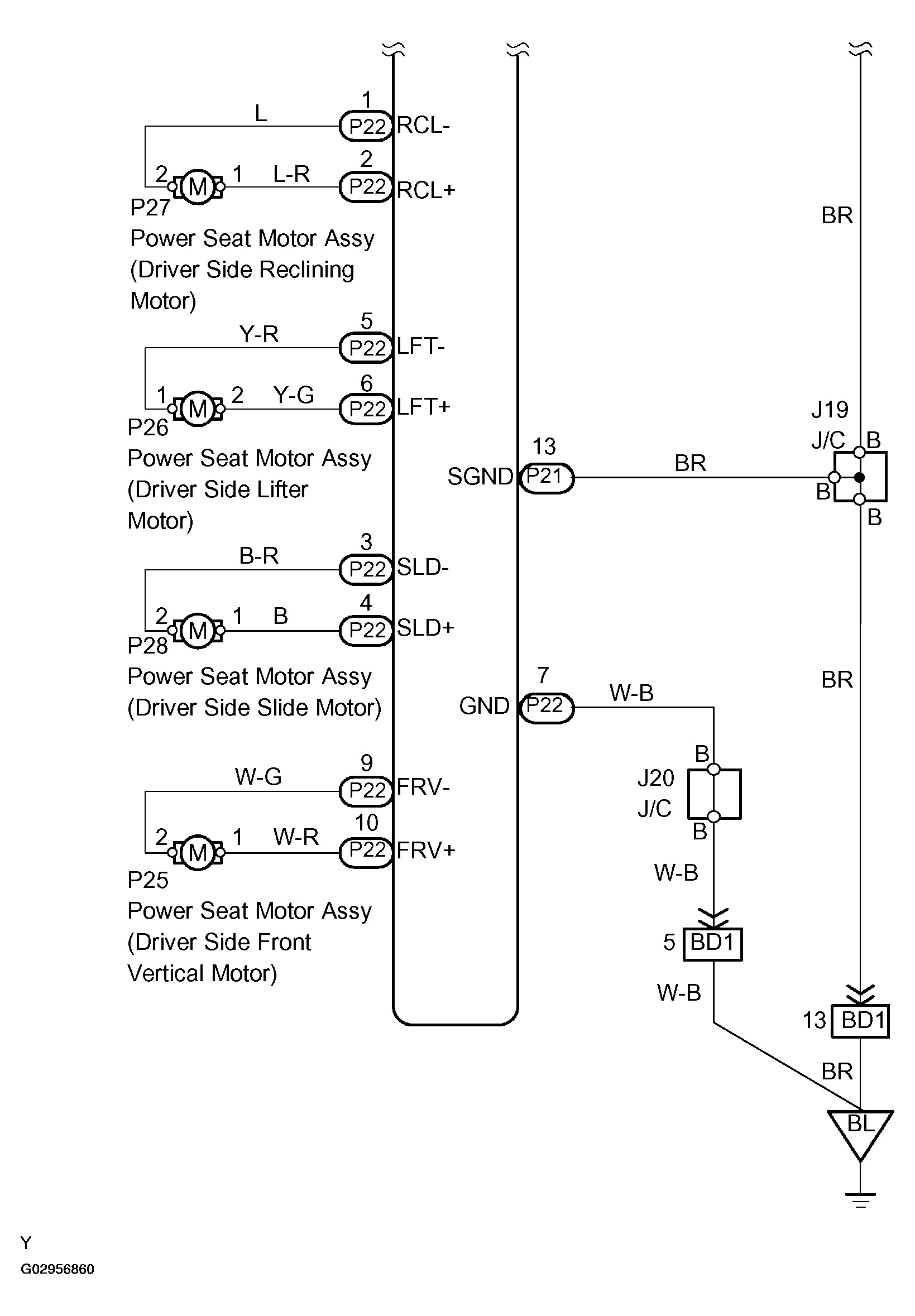

Fig 2: Manual Operation Wiring Diagram (Driver Side - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

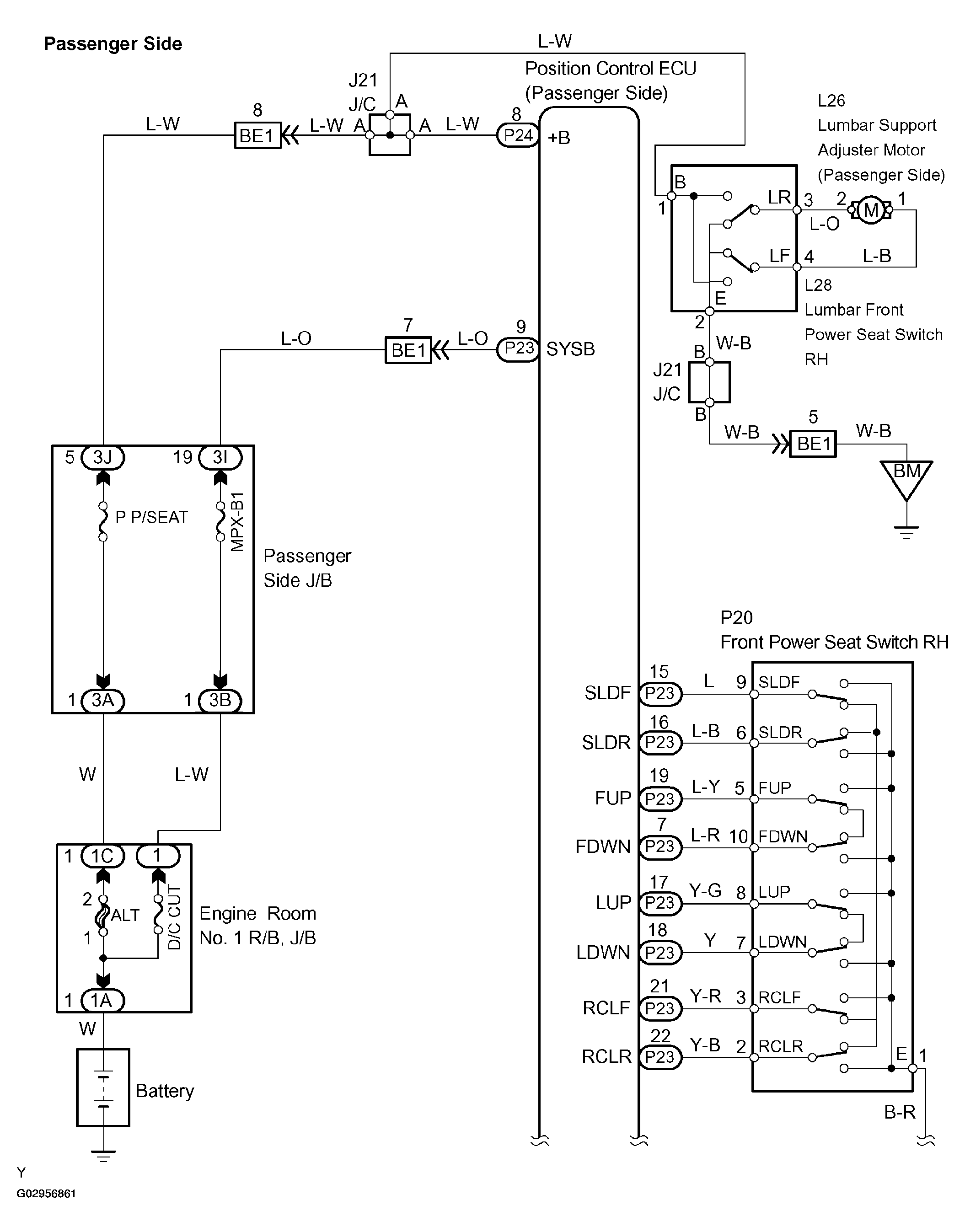

Fig 3: Manual Operation Wiring Diagram (Passenger Side - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

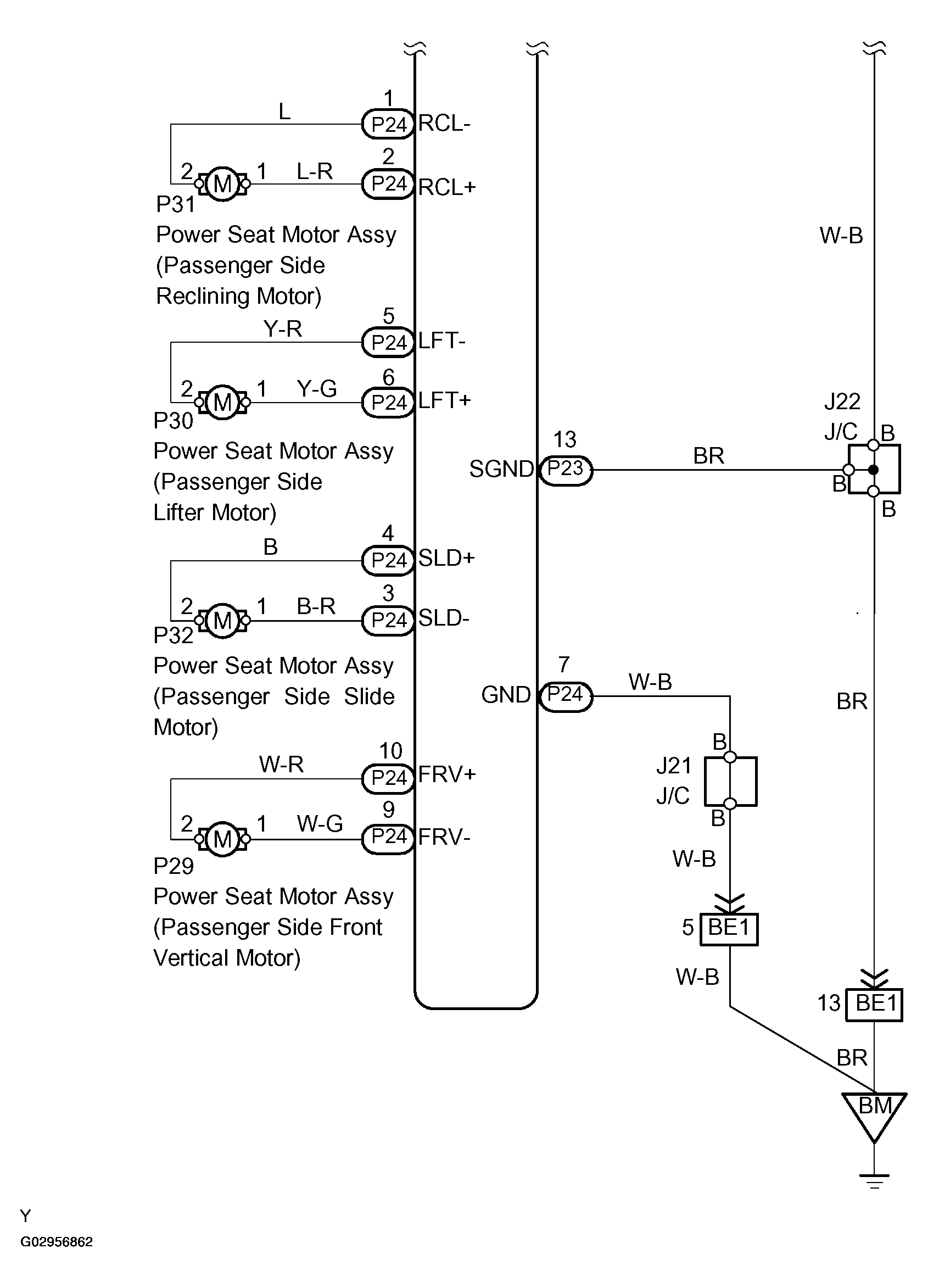

Fig 4: Manual Operation Wiring Diagram (Passenger Side - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
