Wireless Door Lock Control System - Diagnostics
>>
System Diagram
System Diagram

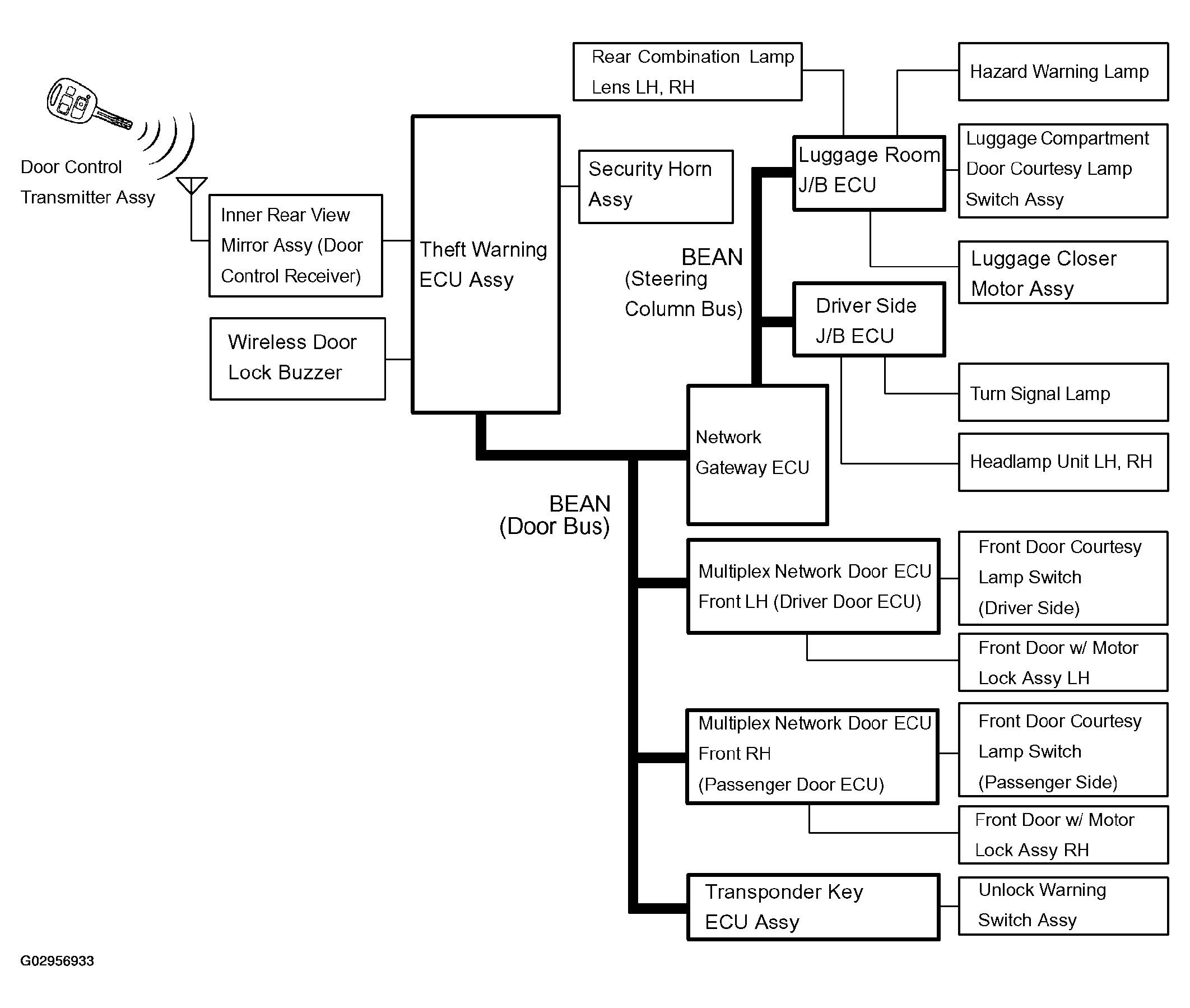

Fig 1: Wireless Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
