Home >> Lexus >> 2005 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Wireless Door Lock Control System - Diagnostics >> Only Wireless Control Function Is Inoperative >> Wiring Diagram

Only Wireless Control Function Is Inoperative: Wiring Diagram

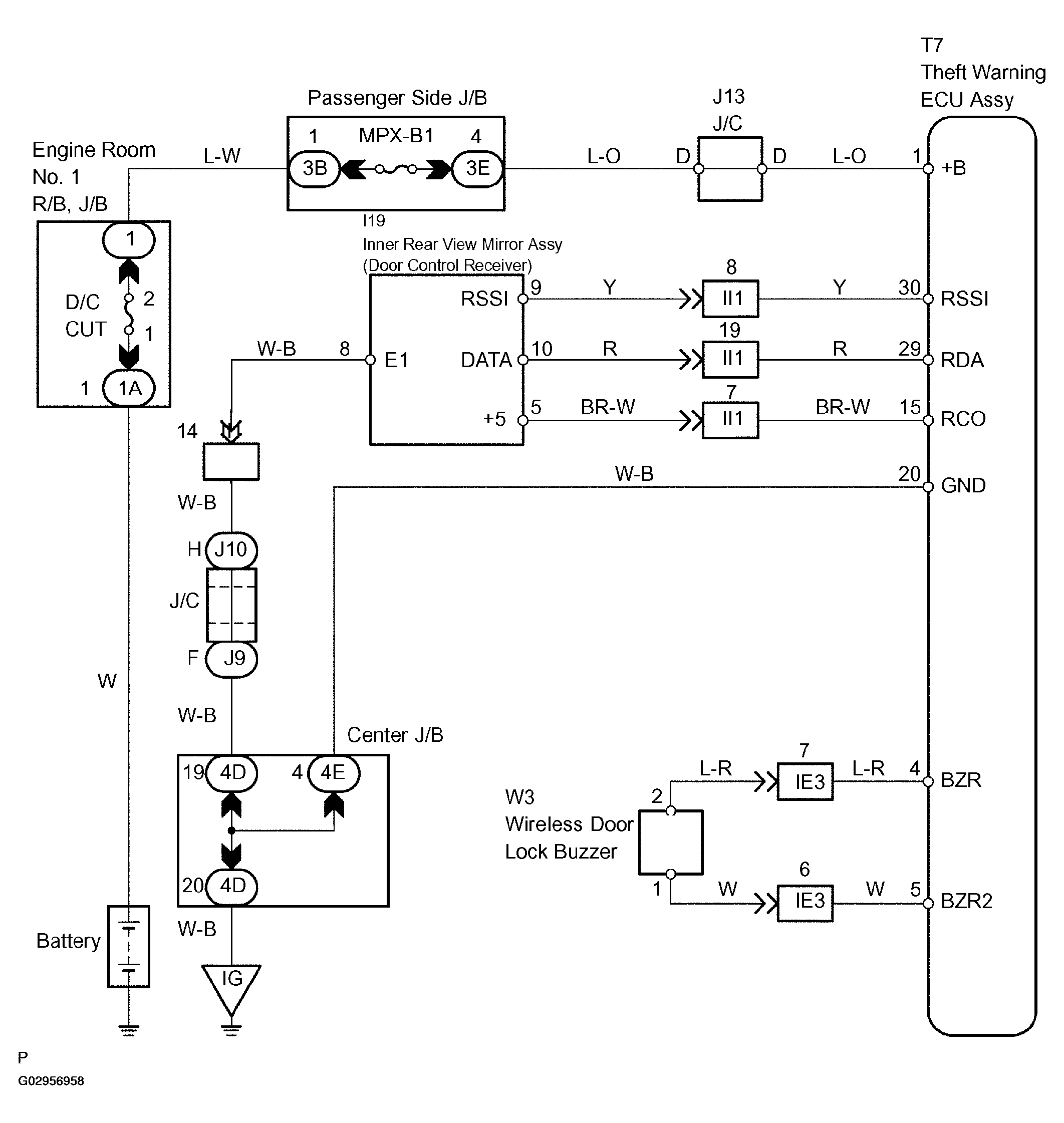

Fig 1: Wireless Control Function Inoperative - Wiring Diagram

G02956958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
