Wireless Door Lock Control System - Diagnostics: Location

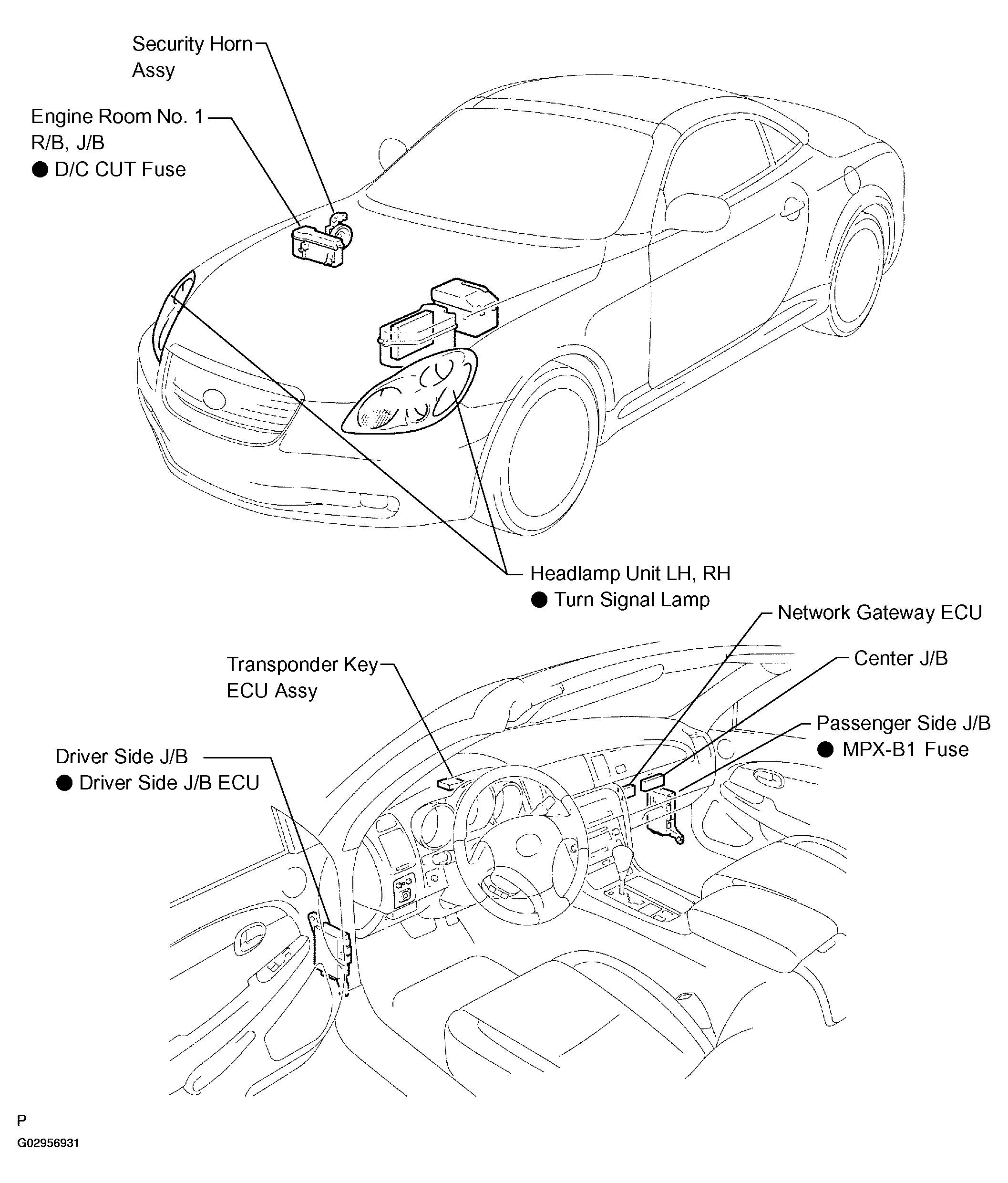

Fig 1: Identifying Location Of Wireless Door Lock Control System Components (1 Of 2)
G02956931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

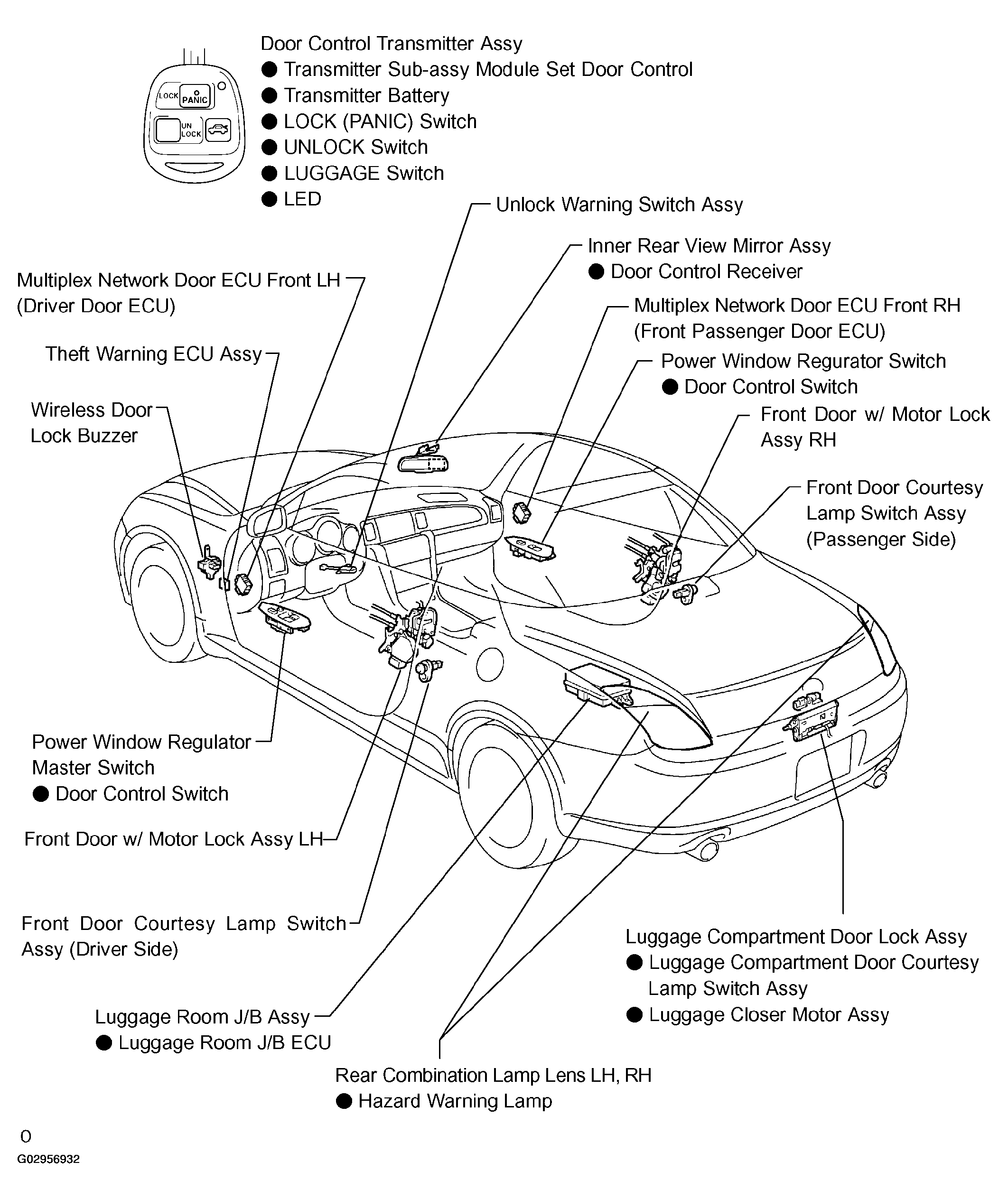

Fig 2: Identifying Location Of Wireless Door Lock Control System Components (2 Of 2)
G02956932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
