System Diagram

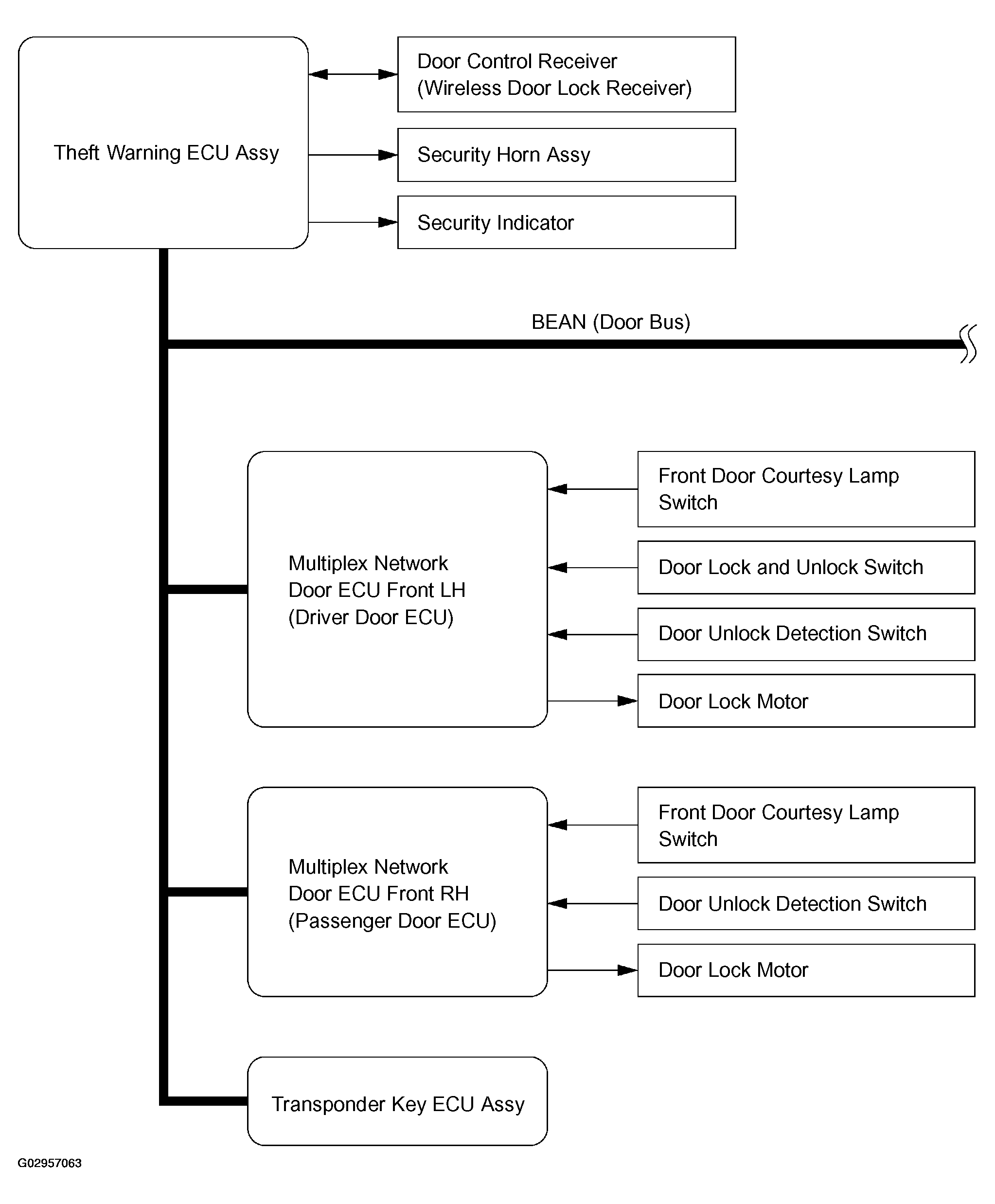

Fig 1: System Diagram - Theft Deterrent System (1 Of 2)
G02957063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

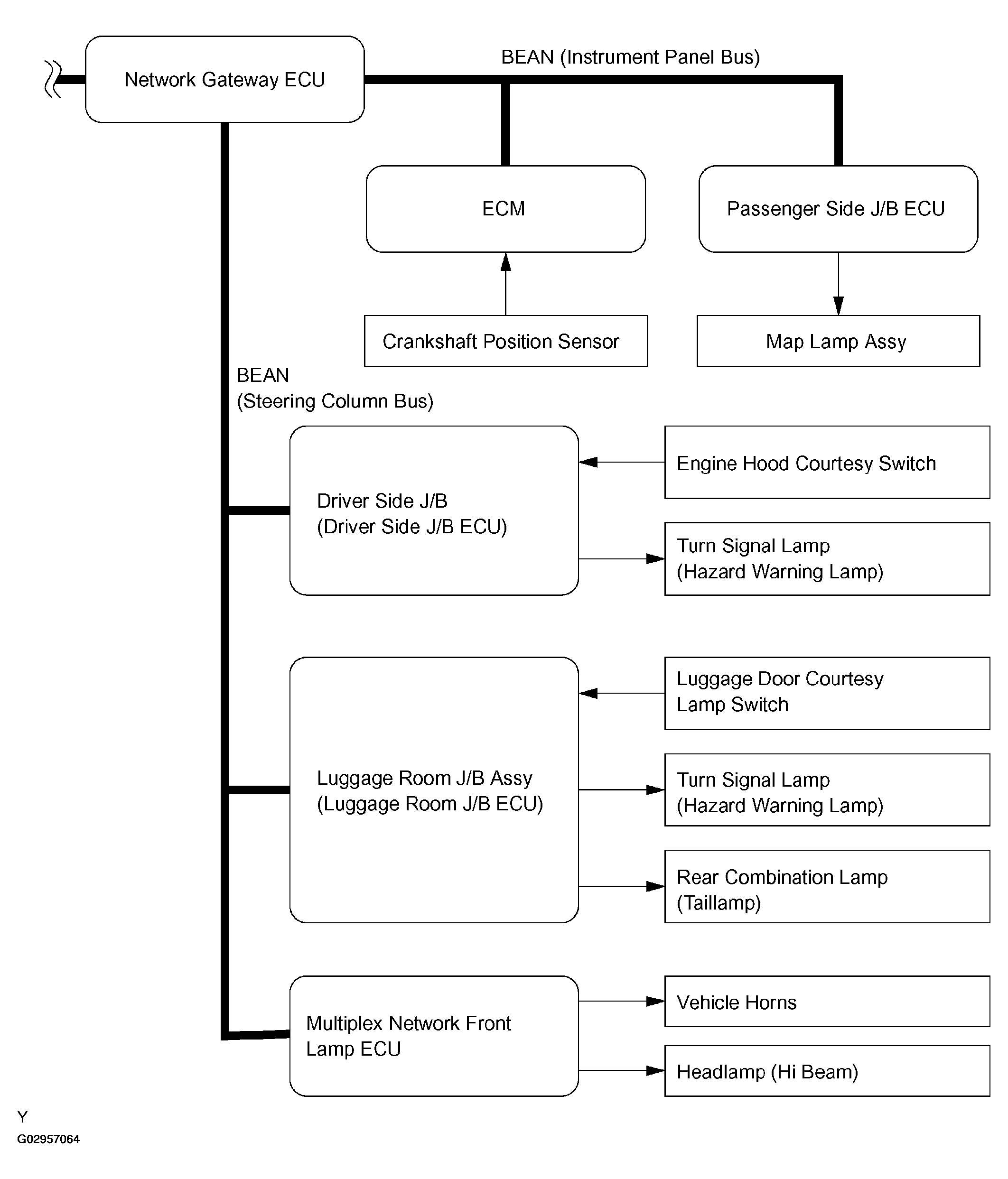

Fig 2: System Diagram - Theft Deterrent System (2 Of 2)
G02957064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
