Inspection Procedure

  1. INSPECT FUSE (AM1, MPX-IG)
    1. Remove the AM1 and MPX-IG fuses from the driver side J/B.
    2. Measure the resistance of the fuses.

      Standard: Below 1 Ω

    1. NG: REPLACE FUSE
    2. OK: Go to next step.
  2. INSPECT RELAY (Marking: IG1)
    1. Remove the IG1 relay from the driver side J/B.
    2. Measure the resistance of the relay.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      3 - 5 10 k ohms or higher
      3 - 5 Below 1 ohms (when battery voltage is applied to terminals 1 and 2)

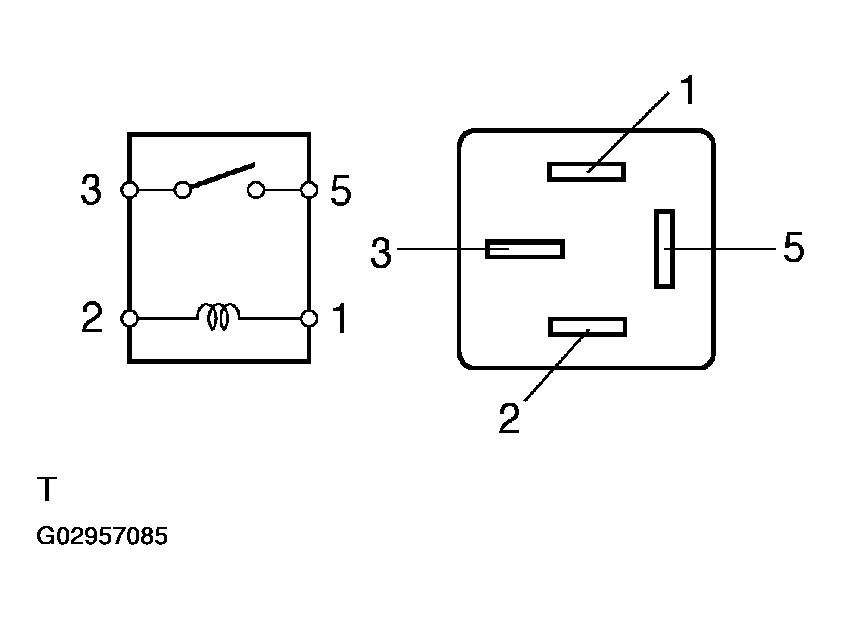

      Fig 1: Identifying IG1 Relay
      G02957085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE RELAY
    2. OK: Go to next step.
  3. INSPECT IGNITION SWITCH ASSY
    1. Measure the resistance of the switch.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Position Specified Condition
      2 (AM1) - 4 (IG1) LOCK 10 k ohms or higher
      2 (AM1) - 4 (IG1) ON Below 1 ohms

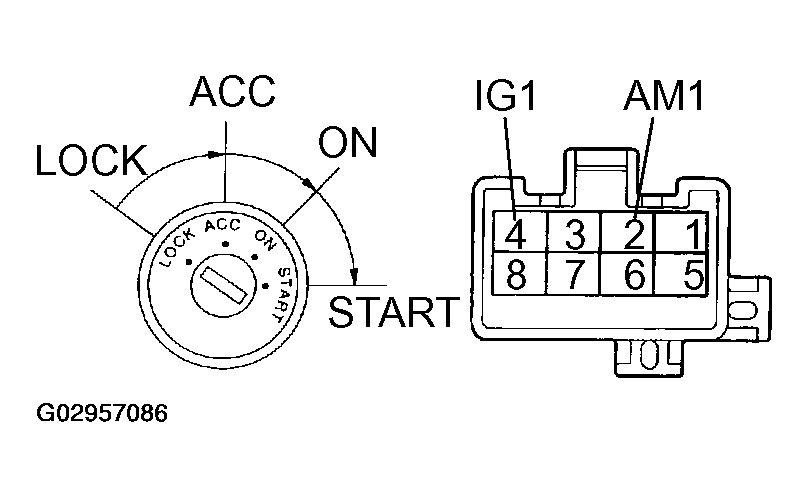

      Fig 2: Identifying Ignition Switch Assy
      G02957086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE IGNITION SWITCH ASSY
    2. OK: Go to next step.
  4. CHECK WIRE HARNESS (IGNITION SWITCH ASSY - BATTERY AND BODY GROUND)
    1. Disconnect the 118 switch connector.
    2. Measure the resistance and voltage of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      118-2 (AM1) - Body ground 10 to 14 V
      118-4 (IG1) - Body ground Below 1 ohms

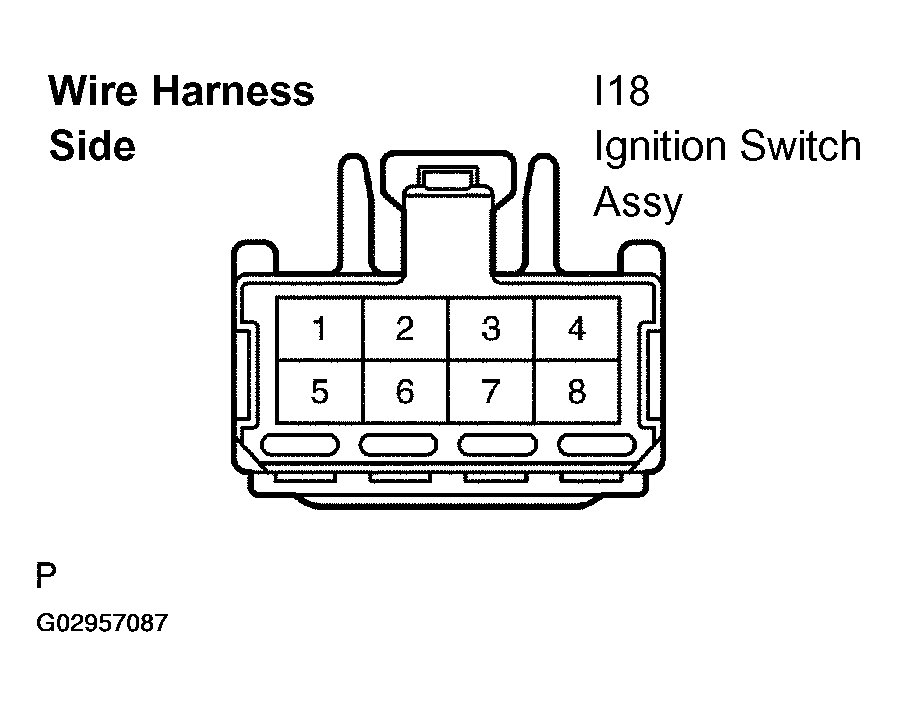

      Fig 3: Identifying Wire Harness (Ignition Switch Assy - Battery & Body Ground)
      G02957087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to next step.
  5. CHECK WIRE HARNESS (THEFT WARNING ECU ASSY - BATTERY)
    1. Disconnect the T7 ECU connector.
    2. Measure the resistance and voltage of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      17-24 (IG) - Body ground Ignition switch ON 10 to 14 V

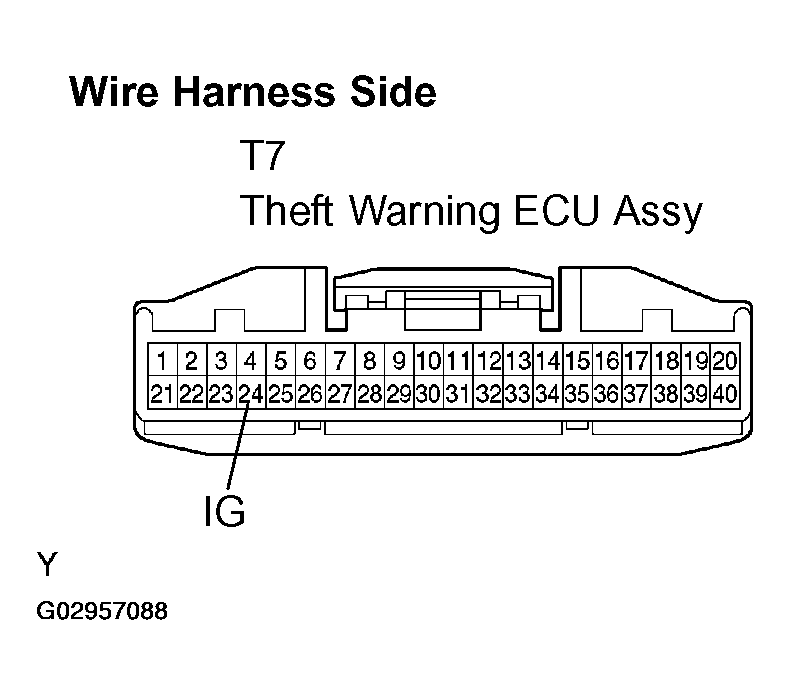

      Fig 4: Identifying Wire Harness (Theft Warning ECU Assy - Battery)
      G02957088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
