Inspection Procedure

  1. READ DATA LIST (ENGINE HOOD COURTESY SWITCH)
    1. Check the DATA LIST for proper functioning of the engine hood courtesy switch.

      Driver side J/B ECU:

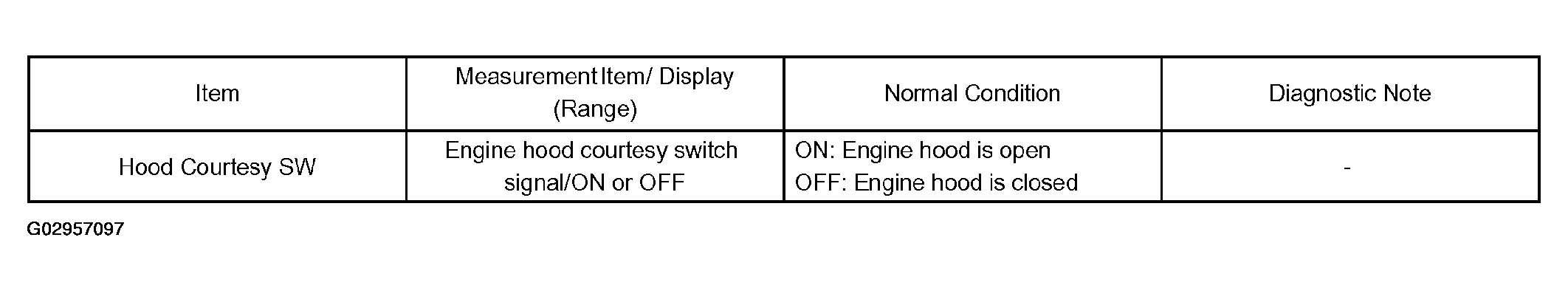

      Fig 1: Diagnostic Table
      G02957097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: ON (engine hood is open) appears on screen.

    1. NG: Go to step   2
    2. OK: REPLACE DRIVER SIDE JUNCTION BLOCK (DRIVER SIDE J/B ECU)
  2. INSPECT ENGINE HOOD COURTESY SWITCH
    1. Remove the courtesy switch from the hood lock.
    2. Measure the resistance of the switch.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      1 - 2 Pushed (OFF) 10 k ohms or higher
      1 - 2 Not Pushed (ON) Below 1 ohms

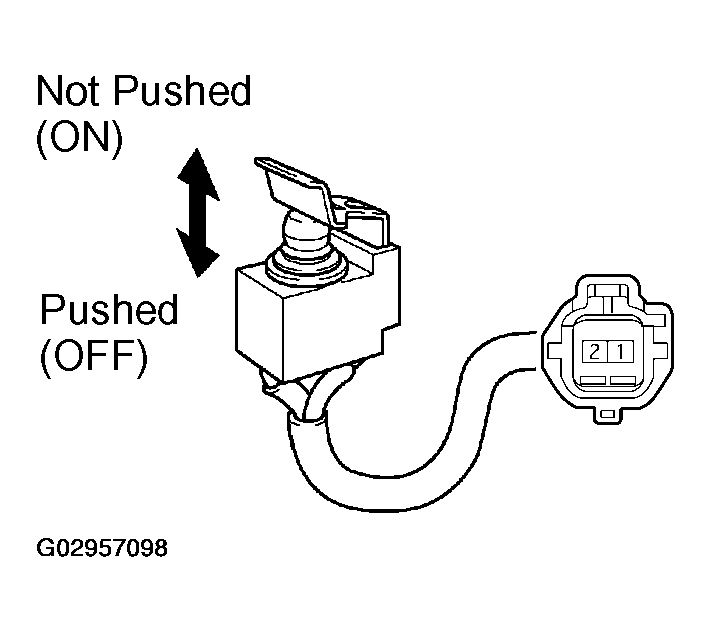

      Fig 2: Identifying Engine Hood Courtesy Switch
      G02957098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE ENGINE HOOD COURTESY SWITCH
    2. OK: Go to next step.
  3. CHECK WIRE HARNESS (DRIVER SIDE J/B ECU - ENGINE HOOD COURTESY SWITCH AND BODY GROUND)
    1. Disconnect the D2 ECU connector.
    2. Disconnect the E8 switch connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      D2-16 (HDCY) - E8-1 Below 1 ohms
      E8-2 - Body ground Below 1 ohms
      D2-16 (HDCY) or E8-1 - Body ground 10 k ohms or higher

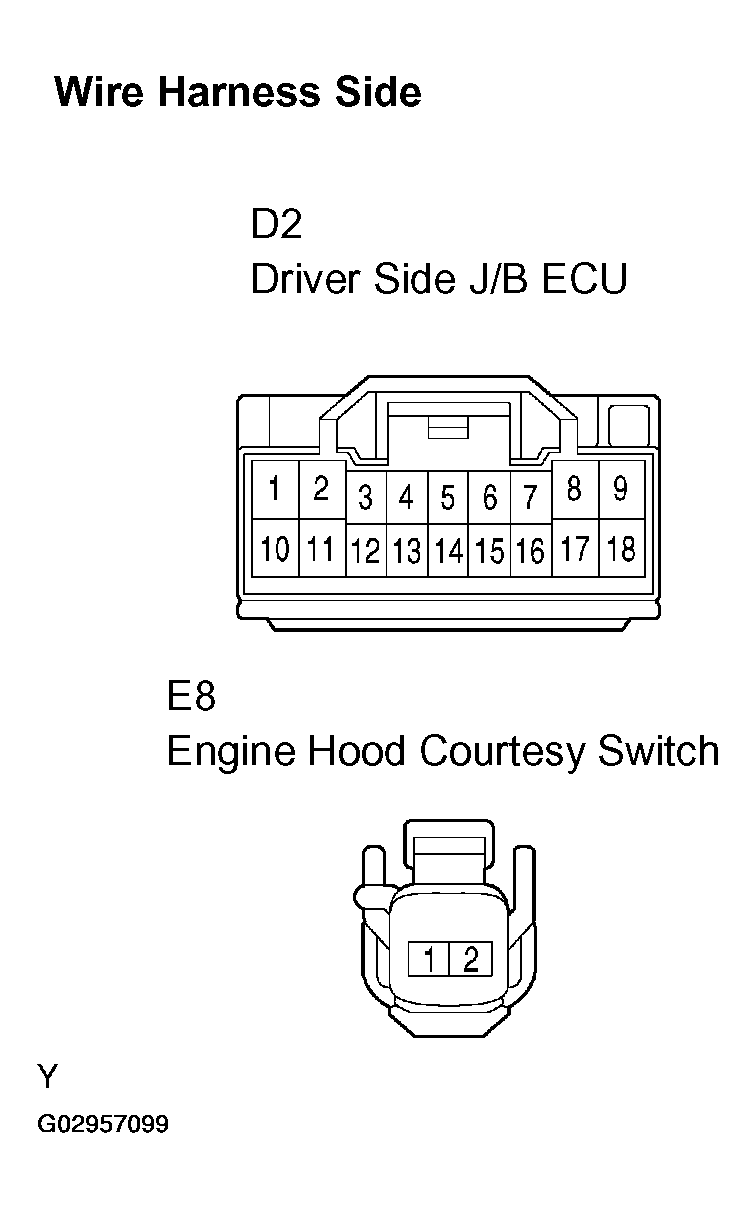

      Fig 3: Identifying Wire Harness (Driver Side J/B ECU - Engine Hood Courtesy Switch)
      G02957099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON  PROBLEM SYMPTOMS TABLE
