Key Reminder Warning System - Diagnostics: Location

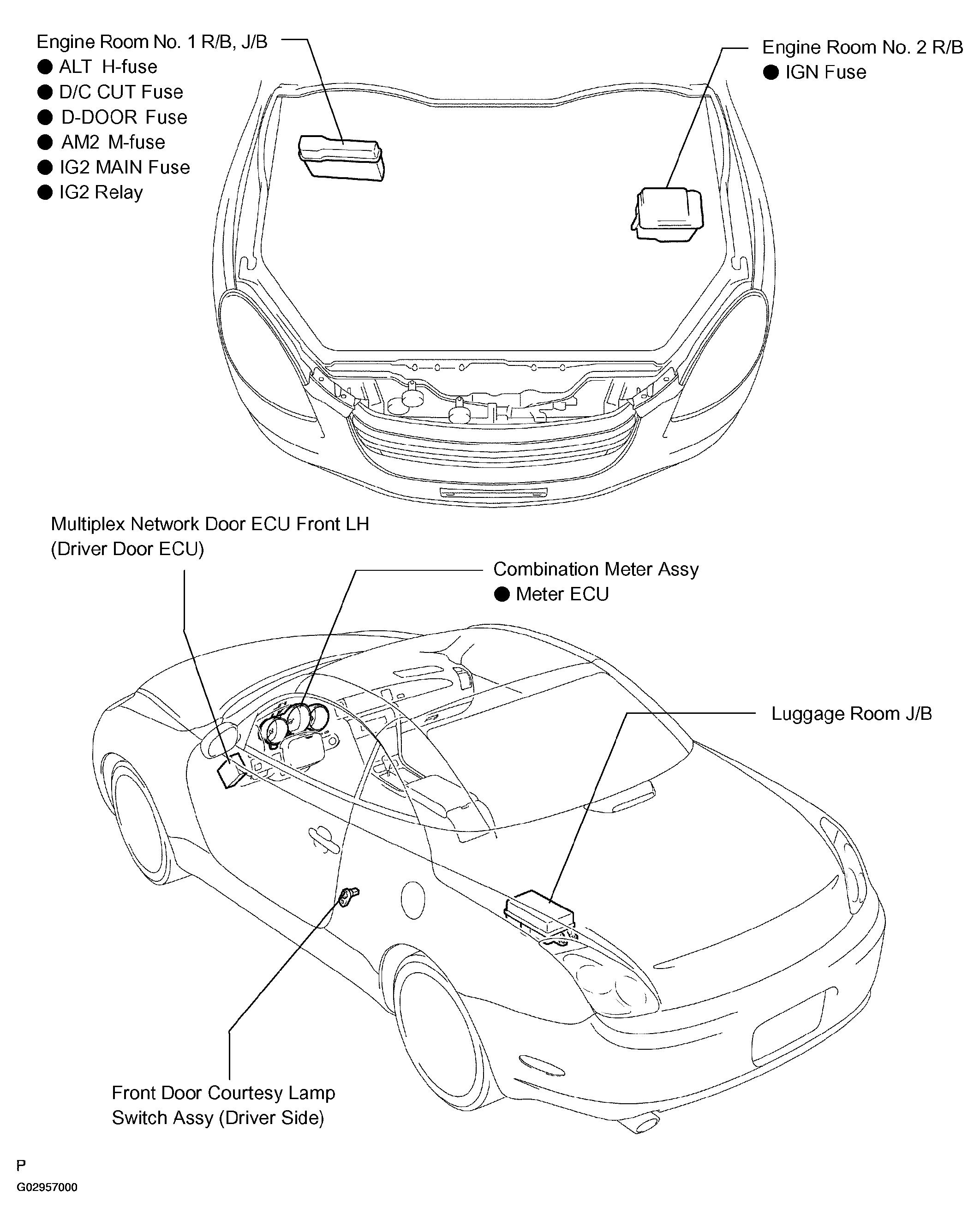

Fig 1: Identifying Location Of Key Reminder Warning System Components & Replacements (1 Of 2)
G02957000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

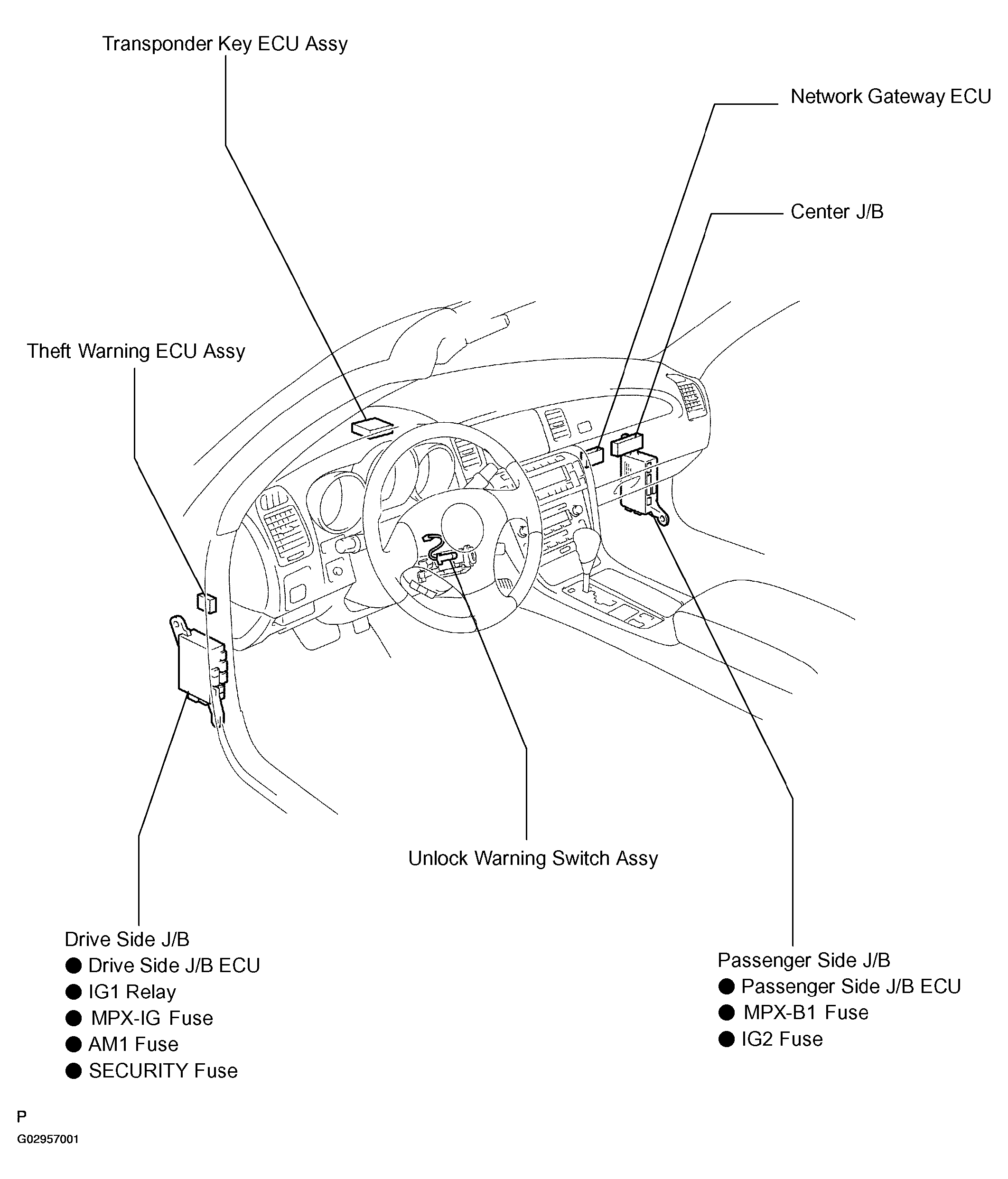

Fig 2: Identifying Location Of Key Reminder Warning System Components & Replacements (1 Of 2)
G02957001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
