Engine Immobilizer System - Diagnostics: Location

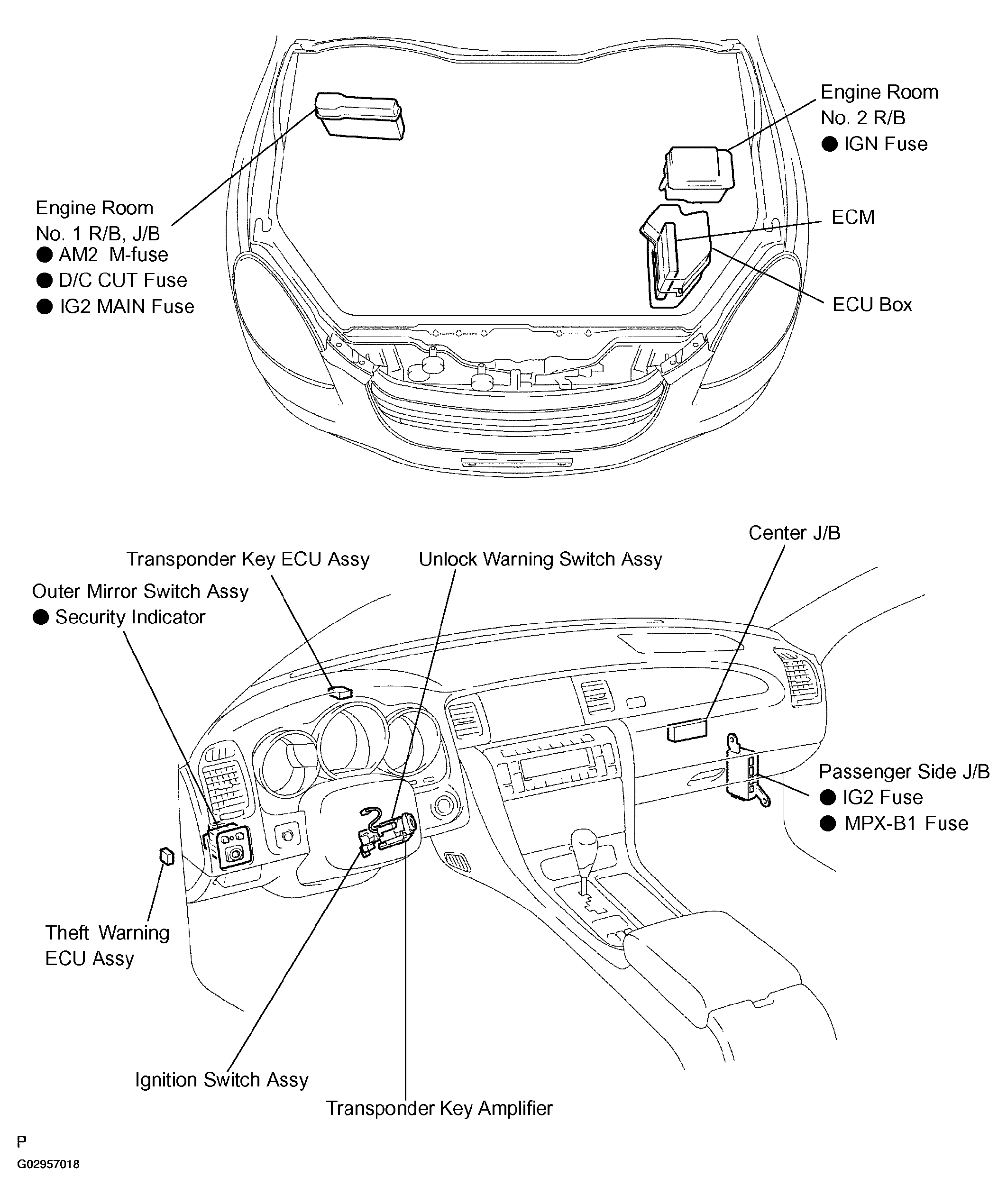

Fig 1: Identifying Location Of Engine Immobilizer System Components

G02957018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
