Rear Combination Lamp Lens: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE TONNEAU COVER STOPPER SUB-ASSY LH (See  REPLACEMENT  )
2. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  REPLACEMENT  ).
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  REPLACEMENT  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  REPLACEMENT  )
6. REMOVE SPARE WHEEL COVER ASSY (See  REPLACEMENT  )
7. REMOVE TOOL BOX COVER (See  REPLACEMENT  )
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  REPLACEMENT  )
9. REMOVE TONNEAU COVER ASSY (See  REPLACEMENT  )
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  REPLACEMENT  )
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  REPLACEMENT  )
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH (See  REPLACEMENT  )
13. REMOVE REAR LAMP COVER LH
    1. Using a screwdriver, pry out the lamp cover.

       HINT:

       Tape the screwdriver tip before use.

14. REMOVE REAR COMBINATION LAMP LENS LH
    1. Remove the bolt.
    2. Pull out the lamp lens, and then disconnect the 2 pins and lamp guide of the body side.
    3. Remove the 2 sockets and lamp lens.

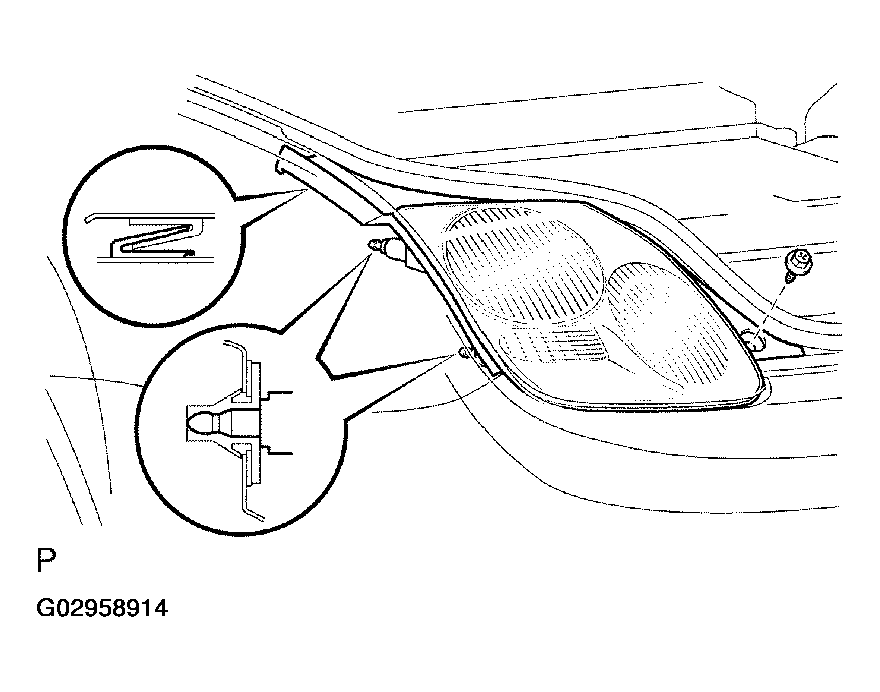

       Fig 1: Removing Rear Combination Lamp Lens LH
