Headlamp ASSY: Components

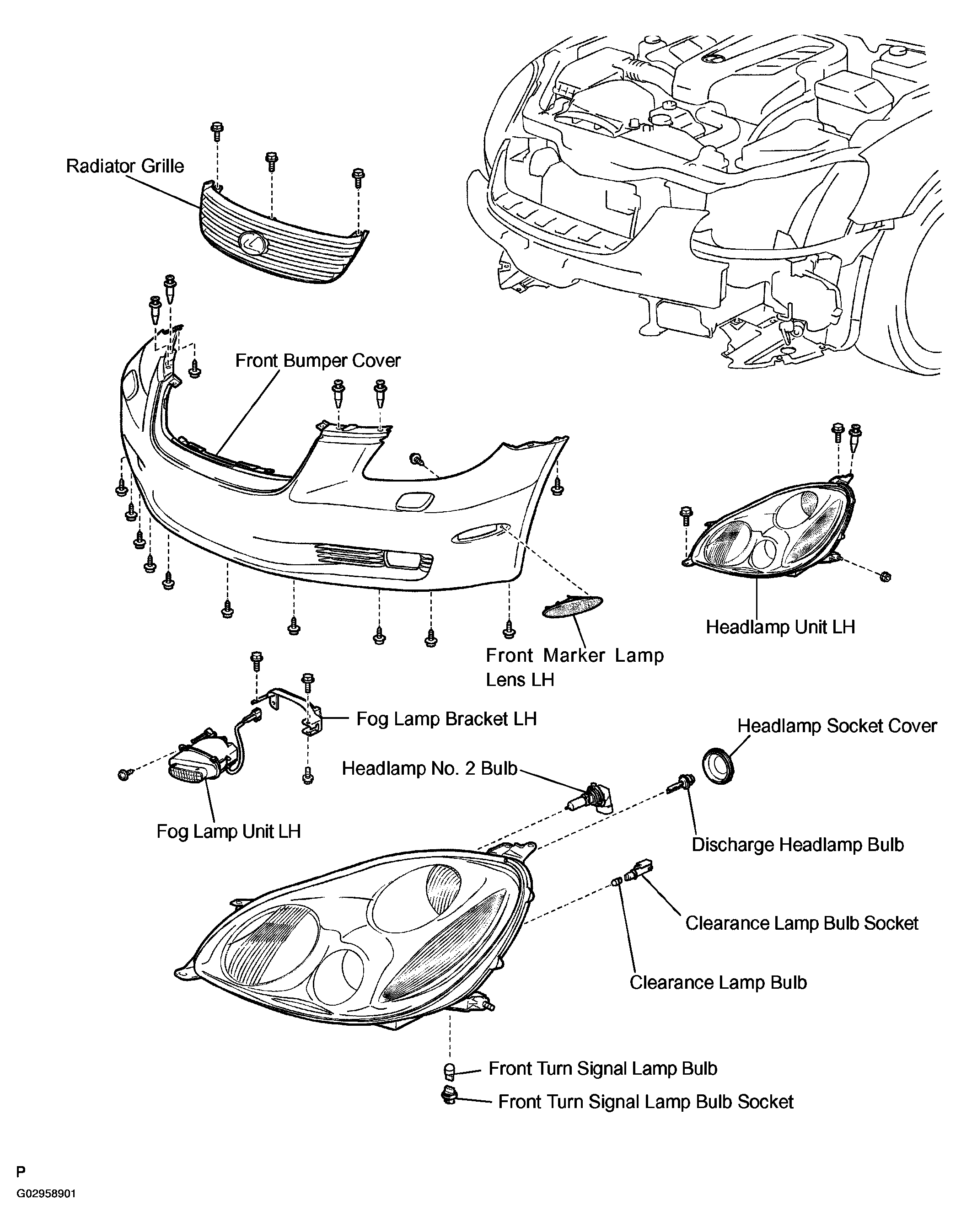

Fig 1: Identifying Headlamp Assy Components & Replacements
G02958901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
