Navigation Antenna ASSY: Replacement

HINT:

• See COMPONENTS  .
• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. TABLE OF BOLT, SCREW AND NUT (See  REPLACEMENT  )
2. SET RADIO RECEIVER ASSY TO SHIPMENT MODE (See  REPLACEMENT   )
3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
4. INSPECT CENTER FRONT WHEEL (See  OVERHAUL  )
5. REMOVE STEERING WHEEL COVER LOWER NO.2 (See  OVERHAUL  )
6. REMOVE SWITCH & VOLUME CASE (See  REPLACEMENT  )
7. REMOVE STEERING PAD SWITCH MODULATOR (See  REPLACEMENT  )
8. REMOVE HORN BUTTON ASSY (See  OVERHAUL  )
9. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )
10. REMOVE DOOR SCUFF PLATE ASSY RH (See  REPLACEMENT  )
11. REMOVE DOOR SCUFF PLATE ASSY LH (See  REPLACEMENT  )
12. REMOVE FRONT DOOR OPENING TRIM COVER RH (See  REPLACEMENT  )
13. REMOVE FRONT DOOR OPENING TRIM COVER LH (See  REPLACEMENT  )
14. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1 (See  REPLACEMENT  )
15. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See  REPLACEMENT  )
16. REMOVE STEERING COLUMN COVER LWR (See  OVERHAUL  )
17. REMOVE STEERING COLUMN COVER UPR (See  OVERHAUL  )
18. REMOVE TURN SIGNAL SWITCH ASSY (See  REPLACEMENT  )
19. REMOVE COMBINATION METER ASSY (See  OVERHAUL  )
20. REMOVE CONSOLE UPPER PANEL GARNISH REAR (See  REPLACEMENT  )
21. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
22. REMOVE AIR CONDITIONER CONTROL ASSY (See  REPLACEMENT  )
23. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER (See  REPLACEMENT   )
24. CONFIRM RADIO RECEIVER ASSY SHIPMENT MODE SETTING (See  REPLACEMENT   )
25. w/ LEXUS Navigation System: REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (See  REPLACEMENT  )
26. w/ LEXUS Navigation System: REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY NO.2 (See  REPLACEMENT  )
27. w/ LEXUS Navigation System: REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  COMBINATION METER ASSY  )
28. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (See  OVERHAUL  )
29. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
30. REMOVE CONSOLE BOX CARPET (See  REPLACEMENT  )
31. REMOVE BOX PANEL NO.3 (See  REPLACEMENT  )
32. REMOVE CONSOLE BOX ASSY (See  REPLACEMENT  )
33. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.2 (See  REPLACEMENT  )
34. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.1 (See  REPLACEMENT  )
35. REMOVE FRONT PILLAR GARNISH RH (See  REPLACEMENT  )
36. REMOVE FRONT PILLAR GARNISH LH (See  REPLACEMENT  )
37. REMOVE INSTRUMENT SIDE PANEL RH (See  REPLACEMENT  )
38. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See  REPLACEMENT  )
39. REMOVE HEATER TO REGISTER DUCT NO.4 (See  REPLACEMENT  )
40. REMOVE STEERING COLUMN ASSY (See  REPLACEMENT  )
41. REMOVE INSTRUMENT PANEL PIN NO.1 (See  REPLACEMENT  )
42. REMOVE DEFROSTER NOZZLE GARNISH NO.1 (See  REPLACEMENT  )
43. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.1 (See  REPLACEMENT  )
44. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.2 (See  REPLACEMENT  )
45. REMOVE DEFROSTER NOZZLE FRONT (See  REPLACEMENT  )
46. REMOVE HEATER TO REGISTER DUCT NO.1 (See  REPLACEMENT  )
47. REMOVE HEATER TO REGISTER DUCT NO.3 (See  REPLACEMENT  )
48. REMOVE HEATER TO REGISTER DUCT NO.2 (See  REPLACEMENT  )
49. REMOVE INSTRUMENT PANEL REINFORCEMENT (See  REPLACEMENT  )
50. REMOVE NAVIGATION ANTENNA ASSY
    1. Remove the 2 clamps.
    2. Remove the 2 screws and antenna.

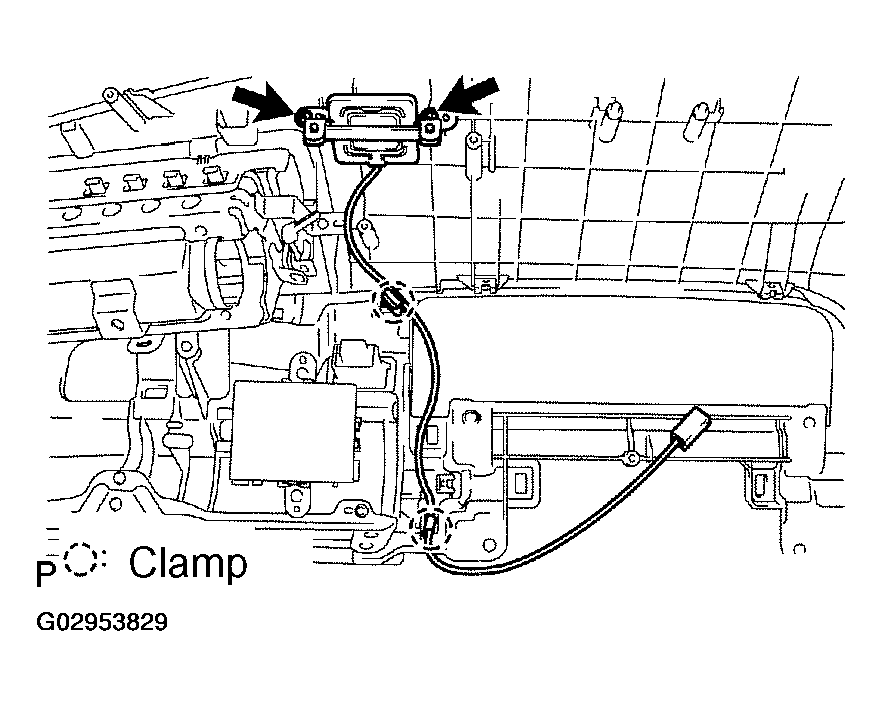

       Fig 1: Removing Navigation Antenna With Clamps & Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
51. INSTALL INSTRUMENT PANEL REINFORCEMENT (See  REPLACEMENT  )
52. INSTALL STEERING COLUMN ASSY (See  REPLACEMENT  )
53. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See  REPLACEMENT  )
54. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.2 (See  REPLACEMENT  )
55. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.1 (See  REPLACEMENT  )
56. INSTALL CONSOLE BOX ASSY (See  REPLACEMENT  )
57. CENTER SPIRAL CABLE (See  OVERHAUL  )
58. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
59. INSPECT STEERING WHEEL CENTER POINT (See  OVERHAUL  )
60. INSPECT HORN BUTTON ASSY (See  OVERHAUL  )
61. INSTALL HORN BUTTON ASSY (See  OVERHAUL  )
62. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
63. PERFORM INITIALIZATION (See  INITIALIZATION  )
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
64. CHECK SRS WARNING LAMP (See  ON-VEHICLE INSPECTION  )
