Cigarette Lighter ASSY: Replacement

HINT:

• See COMPONENTS  .
• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE CONSOLE UPPER PANEL GARNISH REAR (See  REPLACEMENT  )
3. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
4. REMOVE CIGARETTE LIGHTER ASSY
   1. Rotate the socket cap counterclockwise to remove it.
   2. Remove the cigarette lighter from the hole bezel.

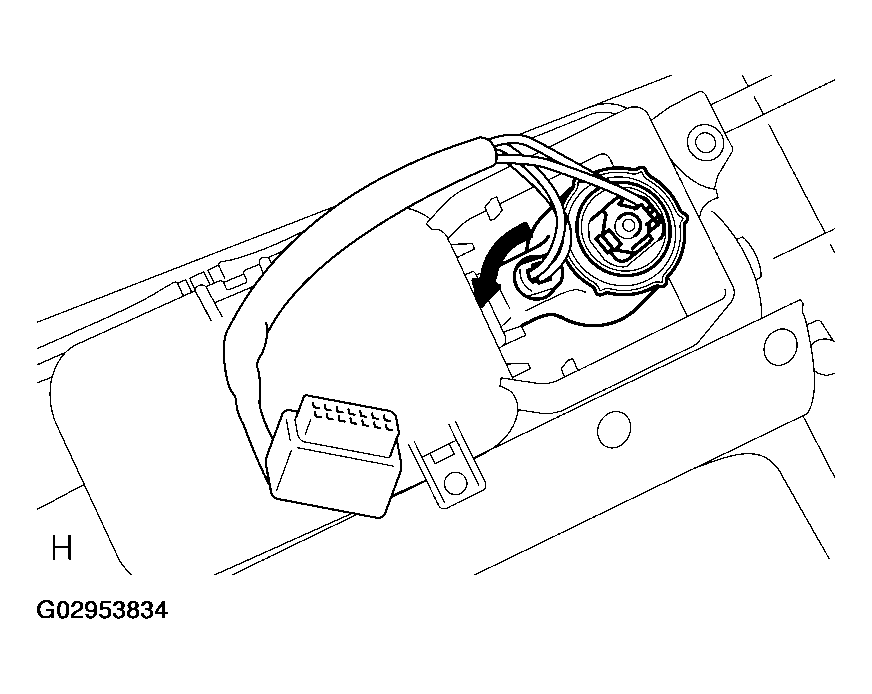

      Fig 1: Removing Cigarette Lighter From Hole Bezel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL CIGARETTE LIGHTER ASSY
   1. Properly position the socket and ring at the cutout of the hole bezel and insert them.
   2. Rotate the socket cap clockwise from the backside.
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION (See  INITIALIZATION  )
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
