System Diagram

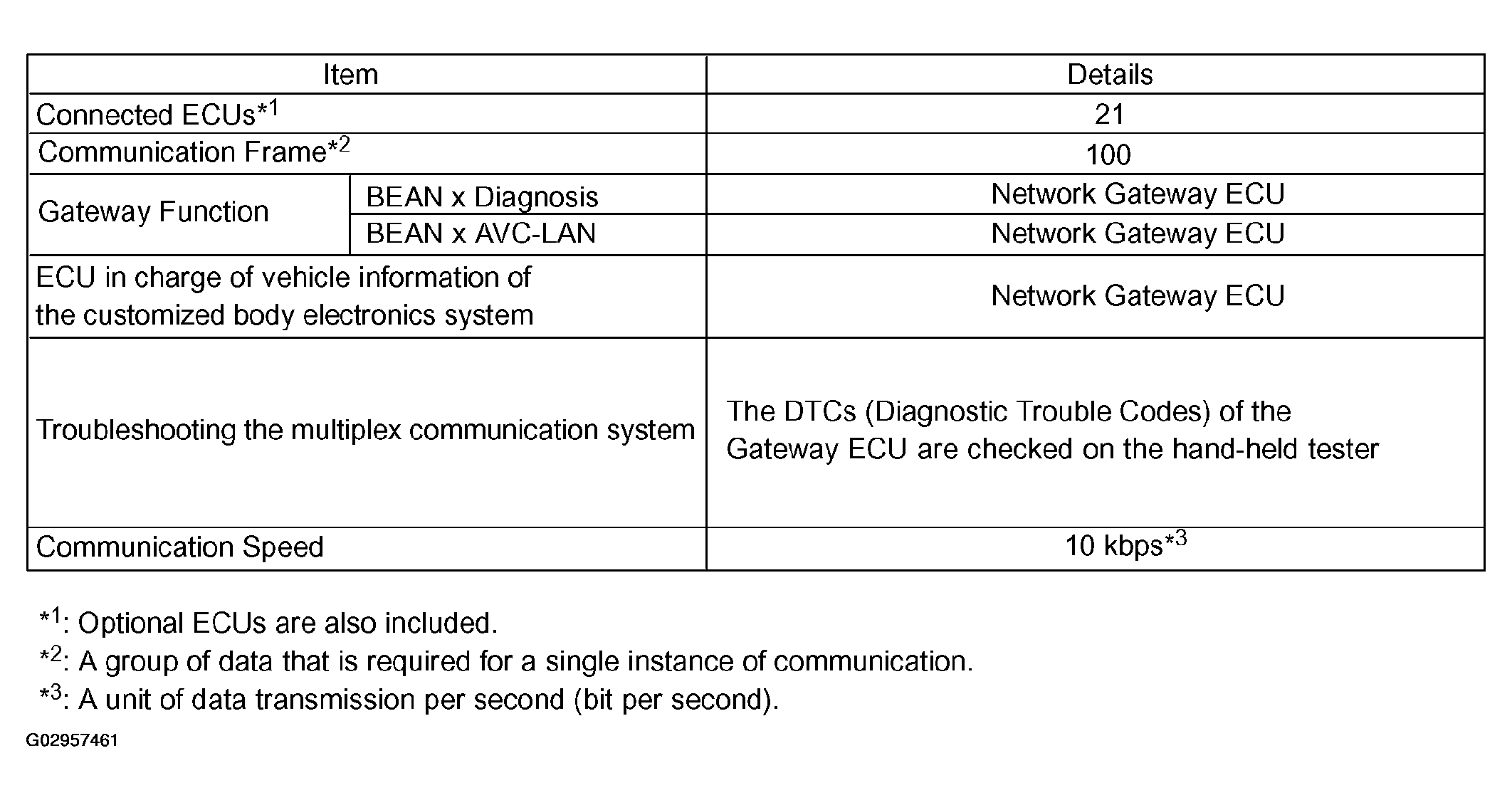

Fig 1: Multiplex Communication - System Diagram
G02957461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

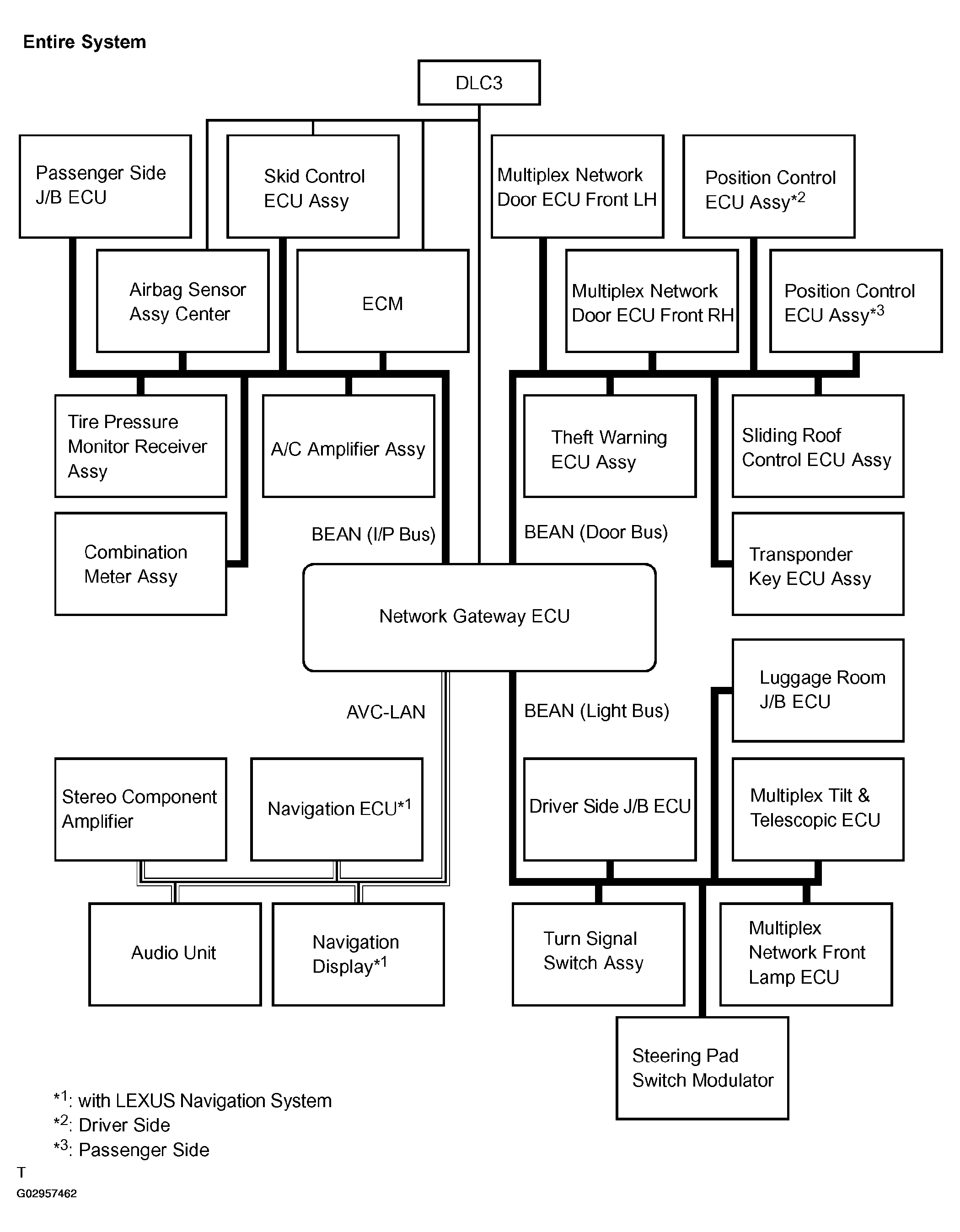

Fig 2: Multiplex Communication - Entire System Diagram
G02957462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

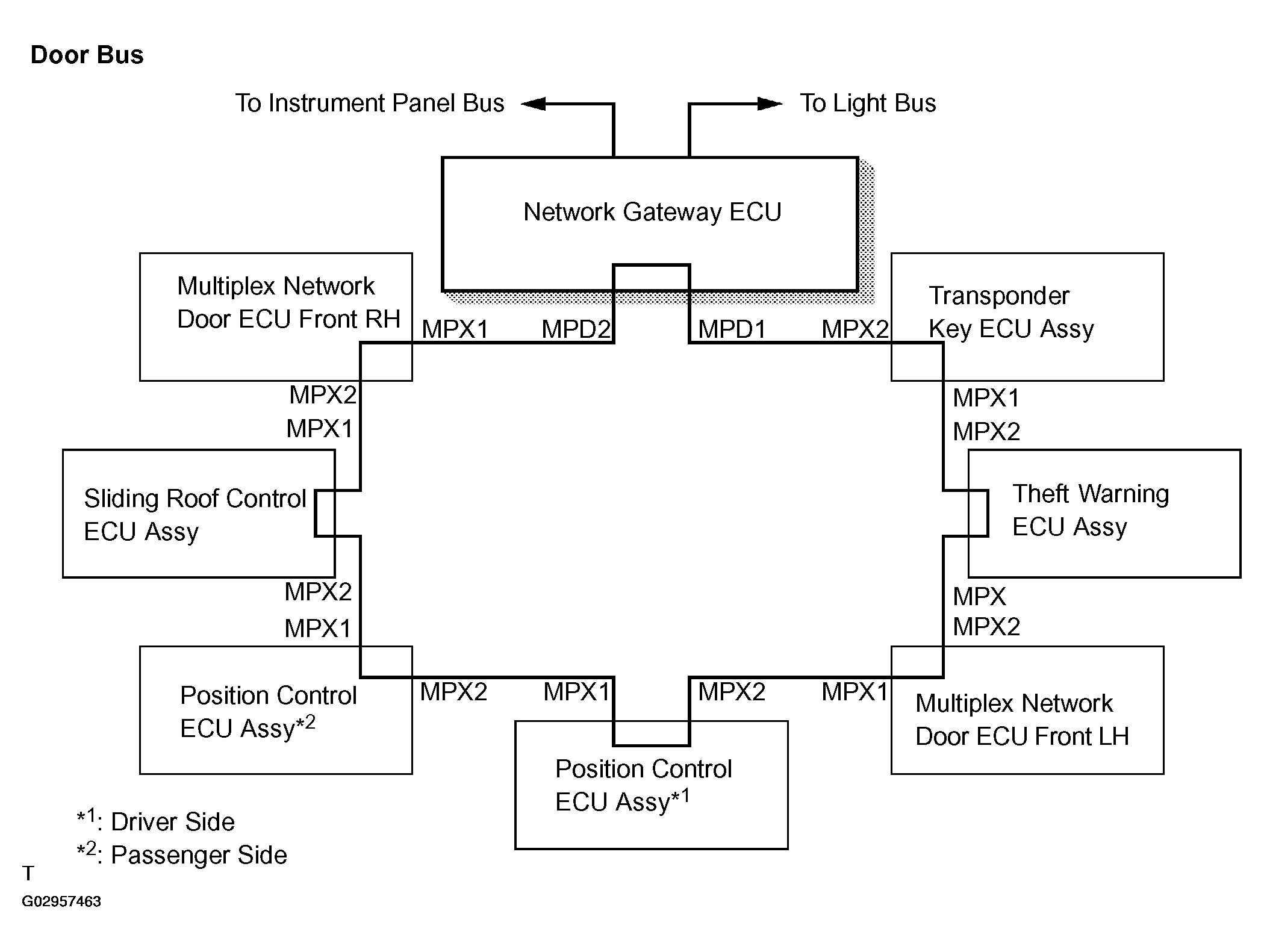

Fig 3: Multiplex Communication - Door Bus System Diagram
G02957463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

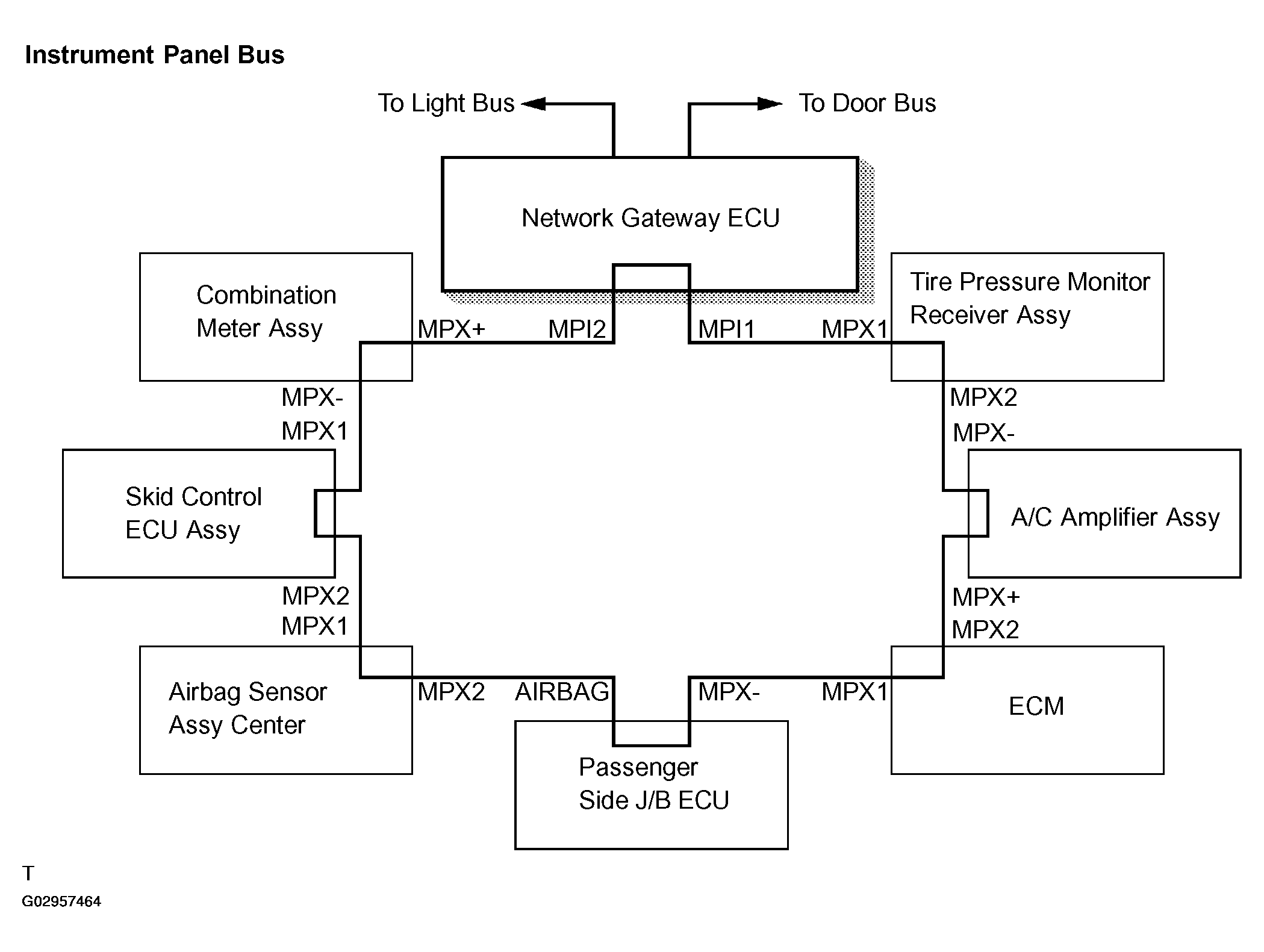

Fig 4: Multiplex Communication - Instrument Panel Bus System Diagram
G02957464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

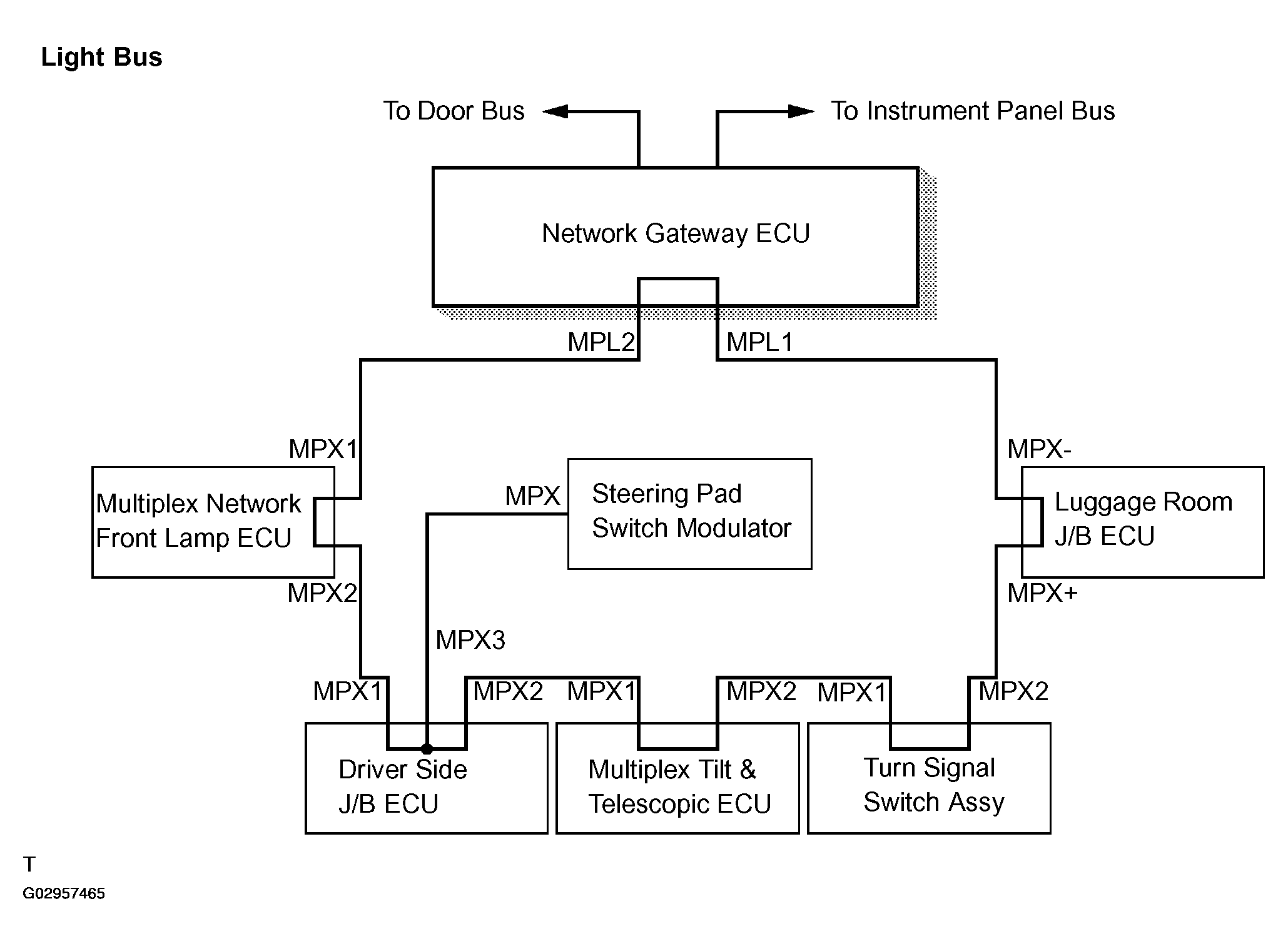

Fig 5: Multiplex Communication - Light Bus System Diagram
G02957465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

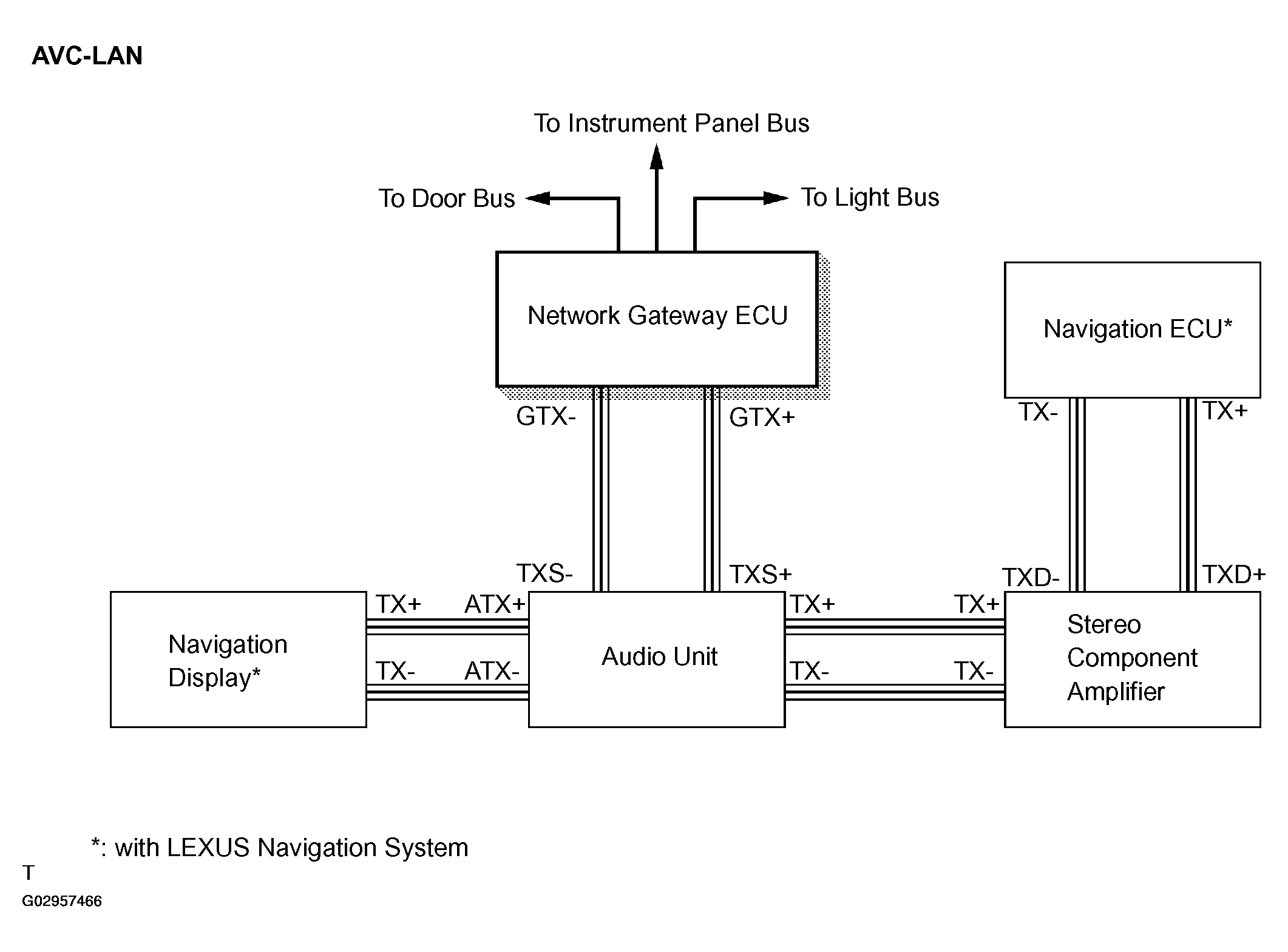

Fig 6: Multiplex Communication - AVC-LAN System Diagram
G02957466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
