Multiplex Communication System - Diagnostics: Location

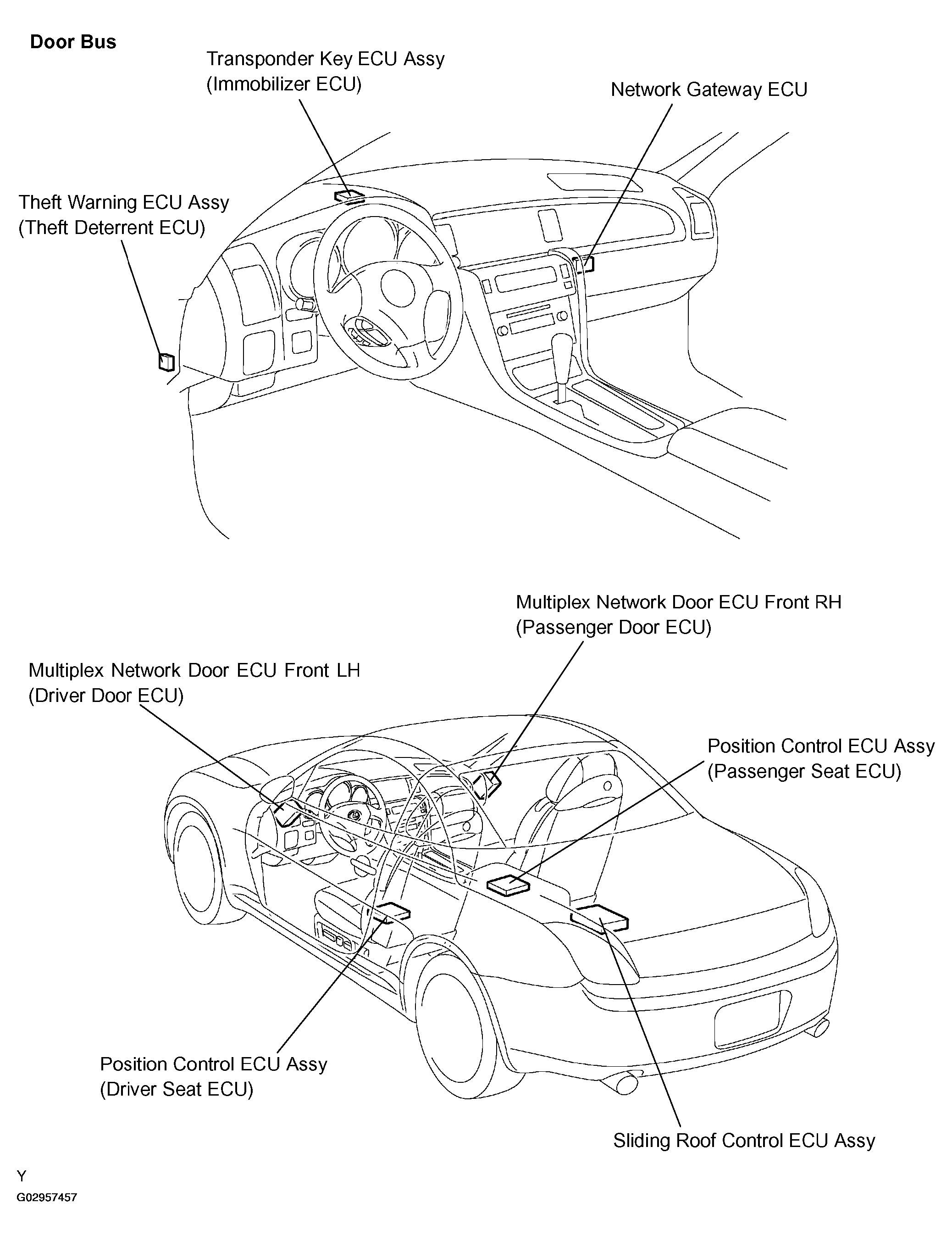

Fig 1: Identifying Location Of Multiplex Communication System Components & Replacements (Door Bus)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

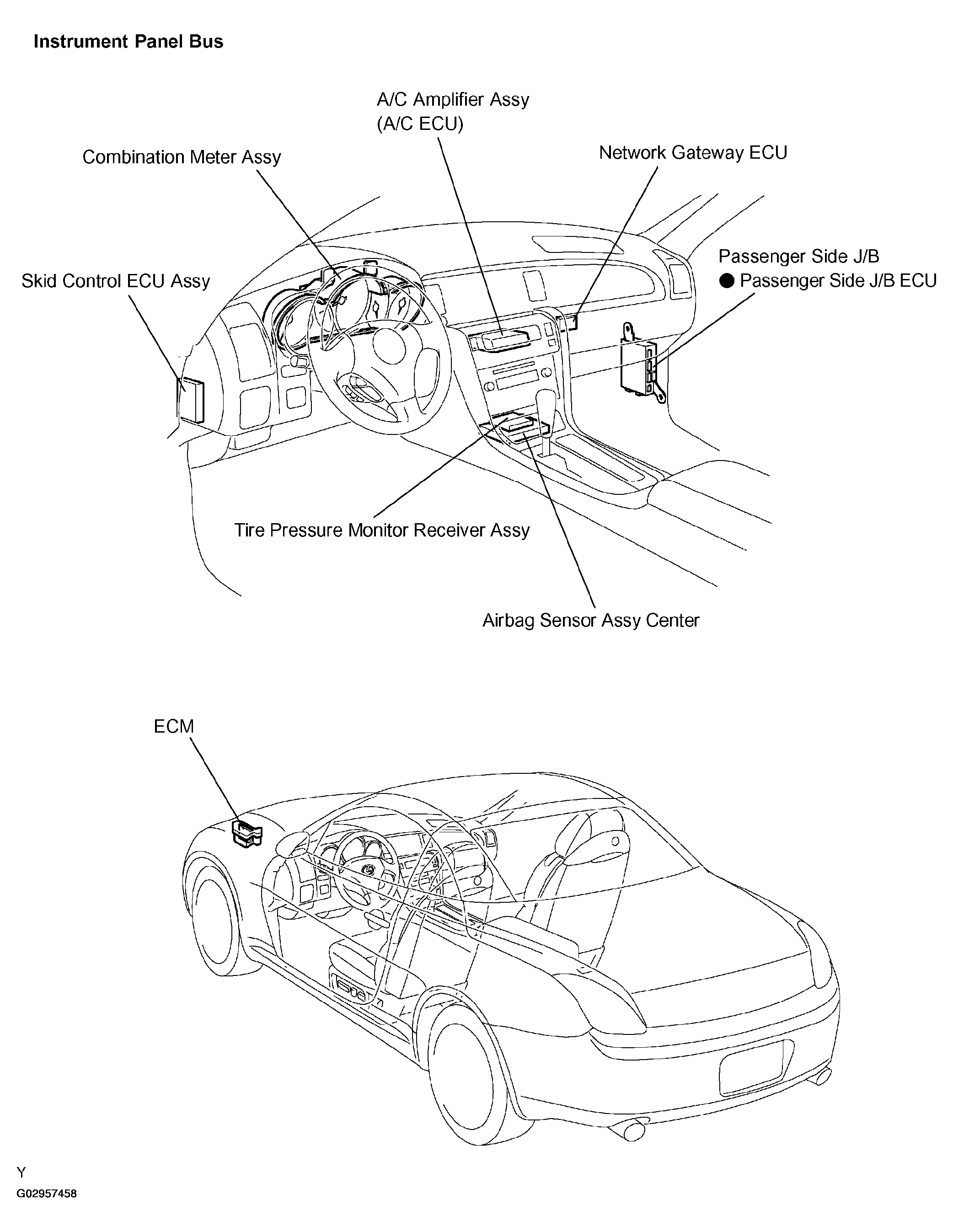

Fig 2: Identifying Location Of Multiplex Communication System Components & Replacements (Instrument Panel Bus)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

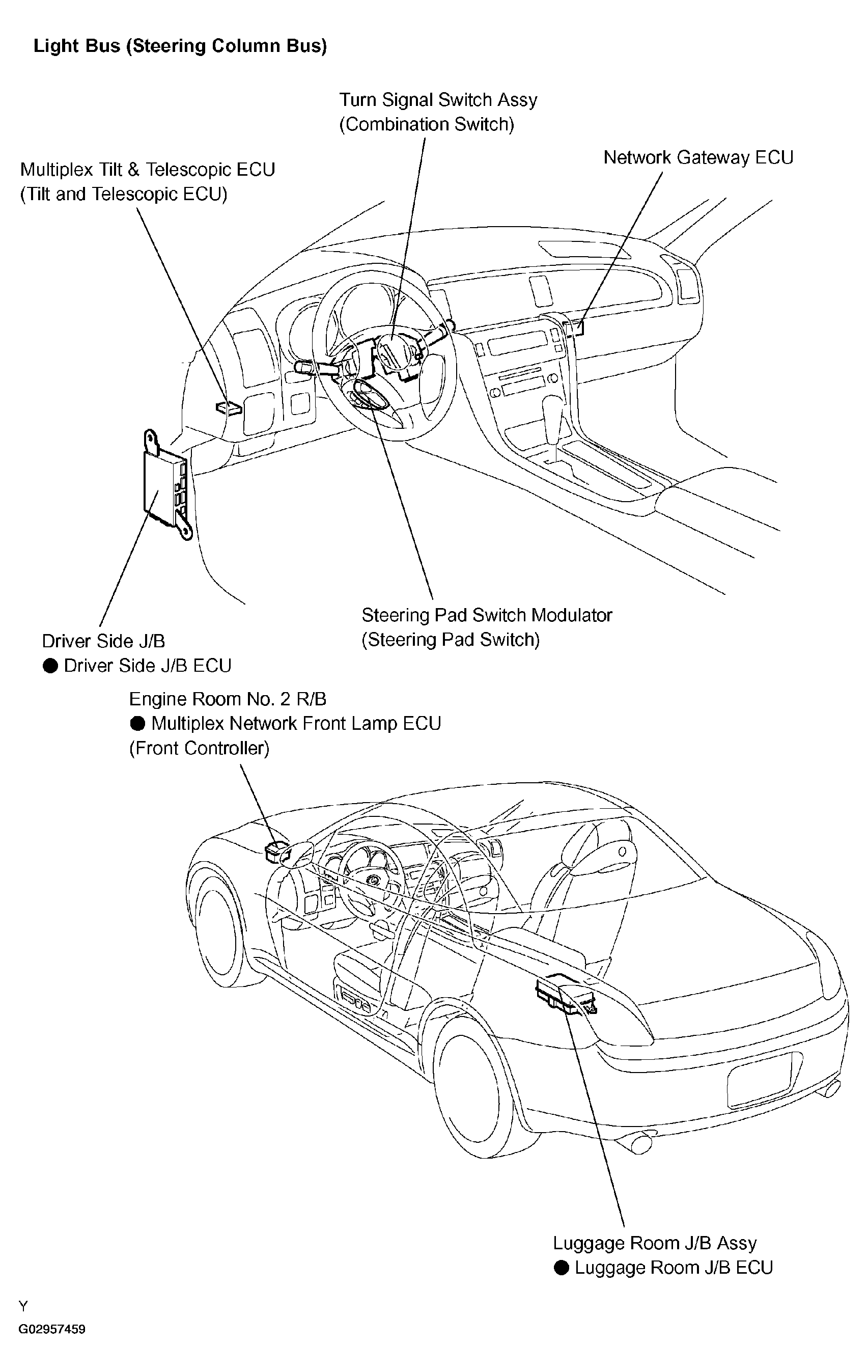

Fig 3: Identifying Location Of Multiplex Communication System Components & Replacements (Light Bus (Steering Column Bus))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

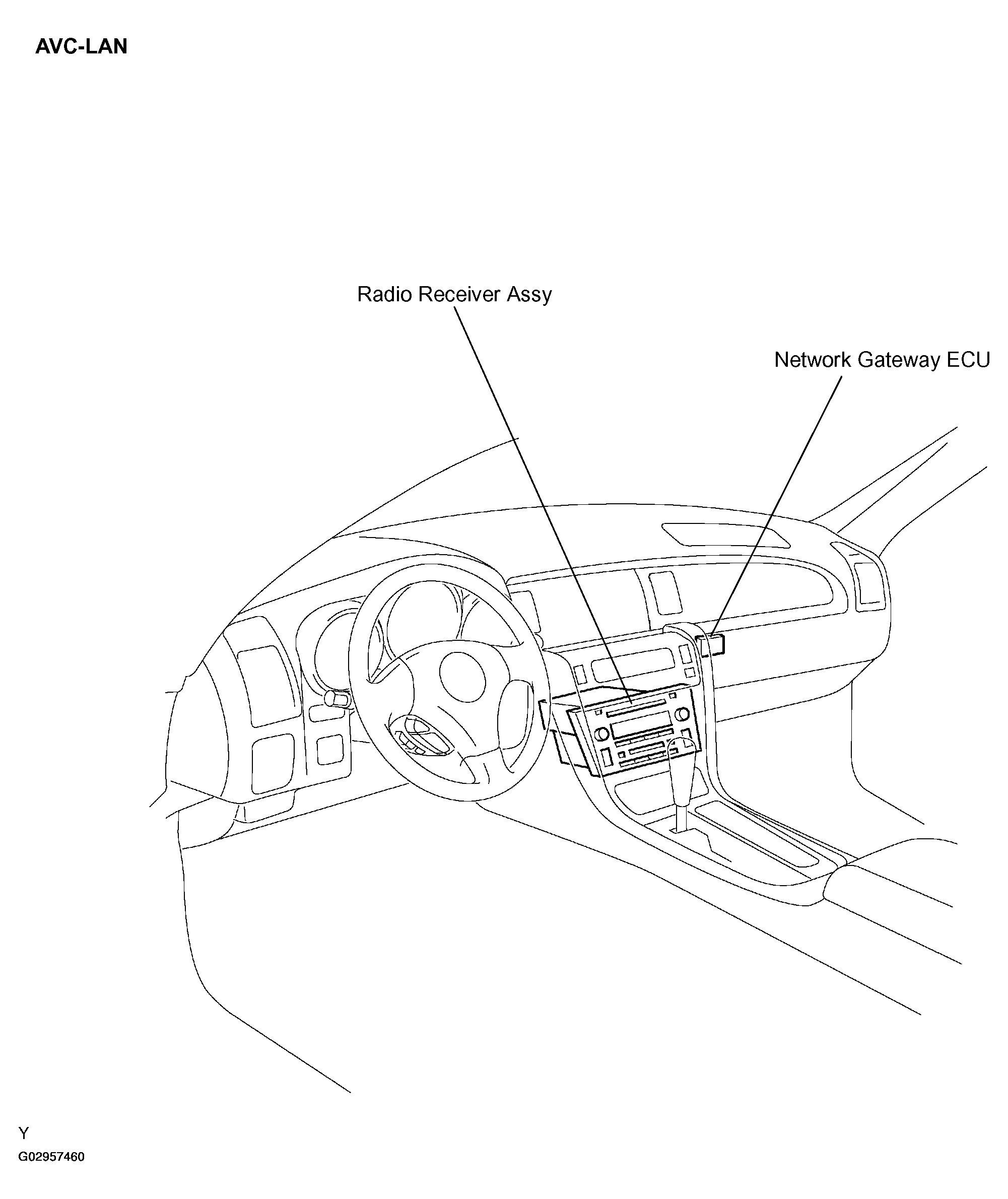

Fig 4: Identifying Location Of Multiplex Communication System Components & Replacements (AVC-LAN)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
