Chapter 1: Electronic Circuit Matrix Table

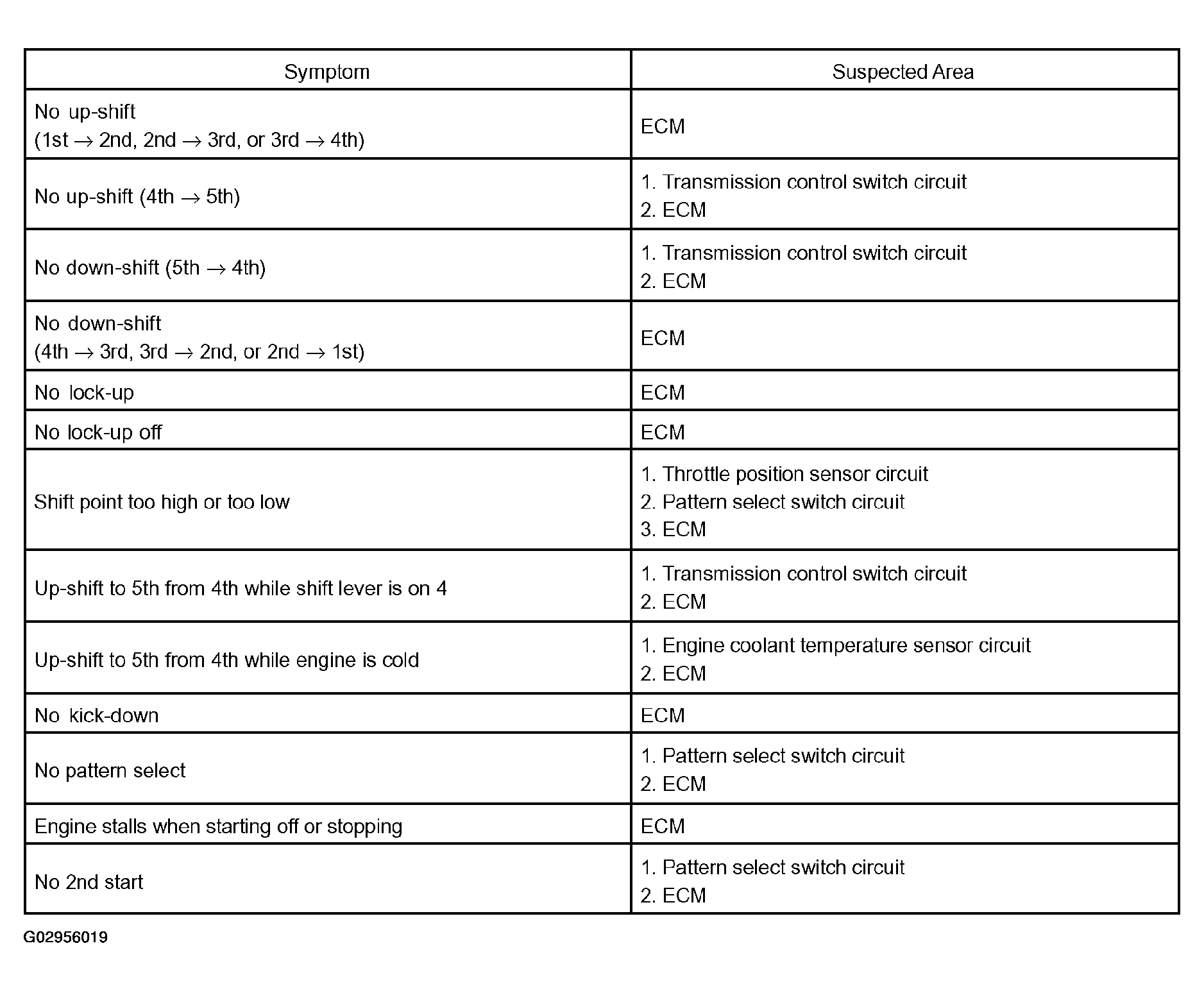

Fig 1: Problem Symptoms Table (1 Of 5)

G02956019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
