Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
SFI System - Diagnostics
>>
DTC P0121: Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem
>>
Wiring Diagram
DTC P0121: Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem: Wiring Diagram

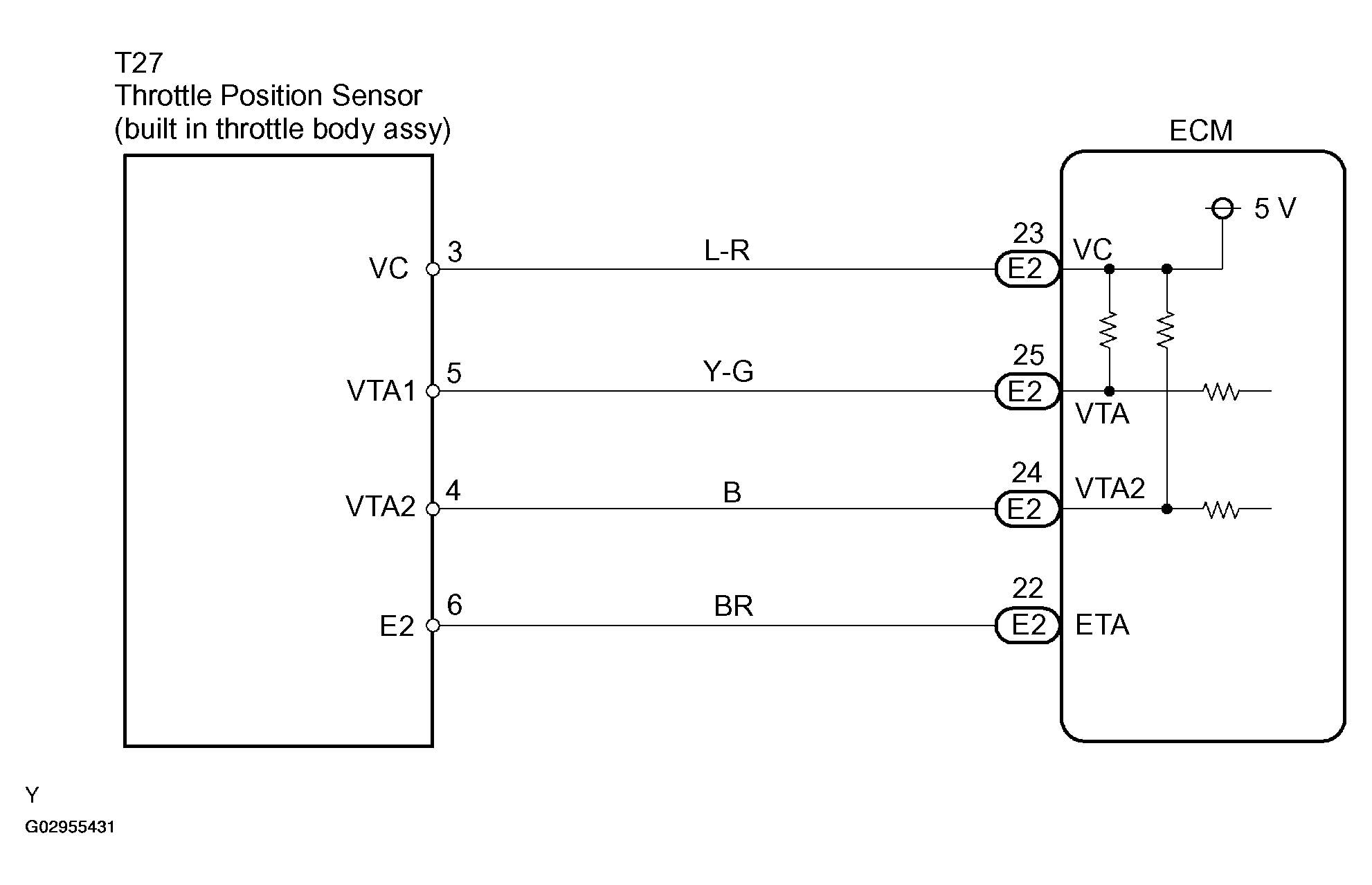

Fig 1: Throttle/Pedal Position Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
