Circuit Description

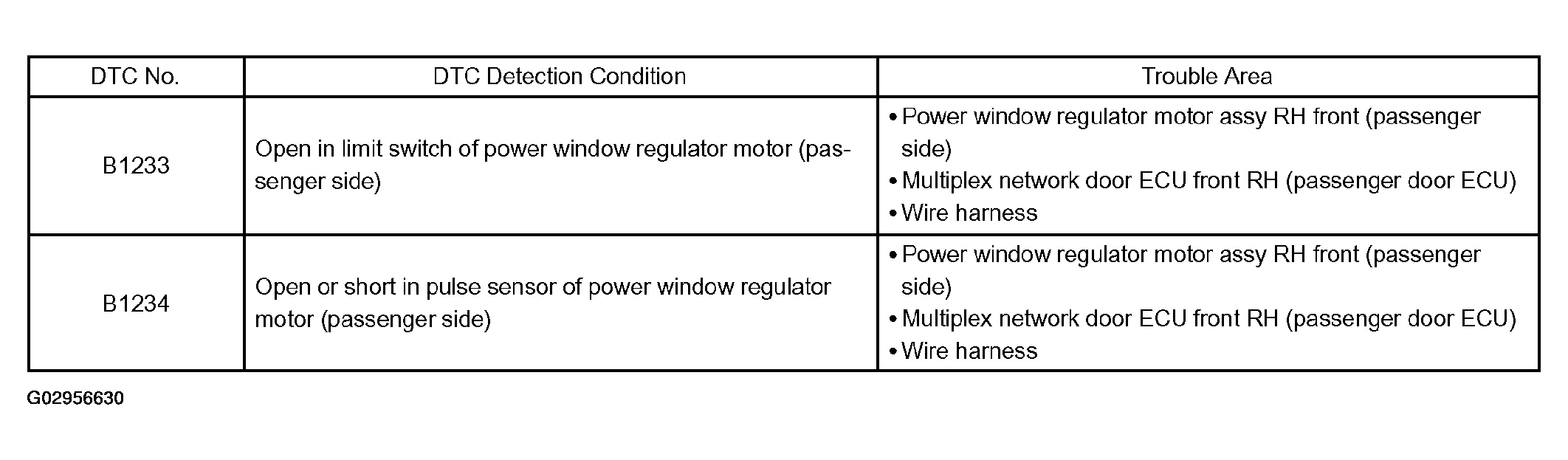

These DTCs are output when the passenger door power window regulator motor circuit is malfunctioning.

Fig 1: Jam Protection Limit/Pulse Switch Circuit On Passenger Door Circuit Description

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
