Power Source Circuit (Navigation Ecu): Wiring Diagram

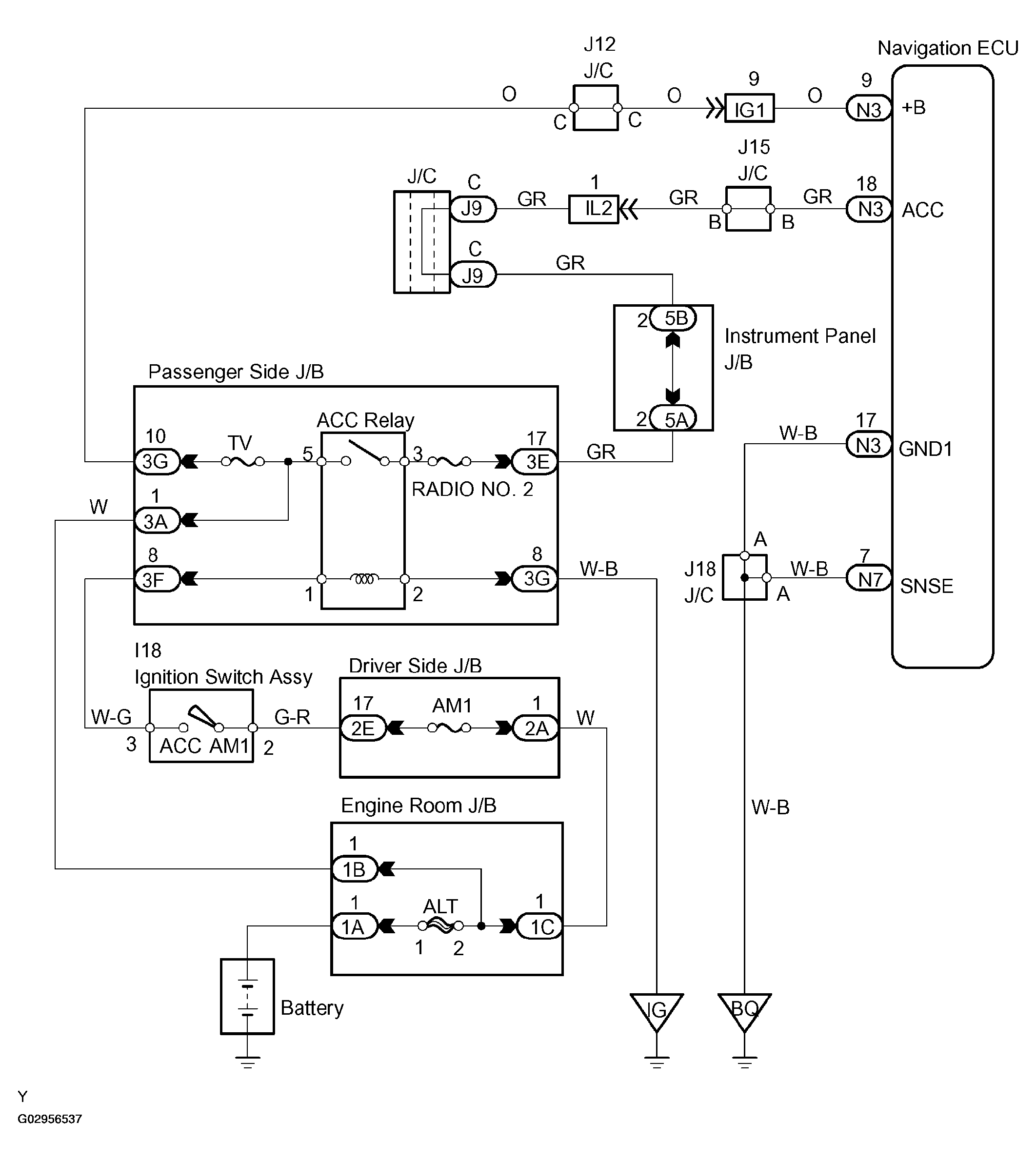

Fig 1: Power Source (Navigation ECU) Wiring Diagram

G02956537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
