Navigation Check Mode (Microphone Check)

HINT:

• This mode checks the microphone.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM MICROPHONE CHECK
   1. Start the diagnostic mode (see DIAGNOSTIC START-UP/FINISH  )
   2. Select "Navigation Check" from "Diagnosis MENU".

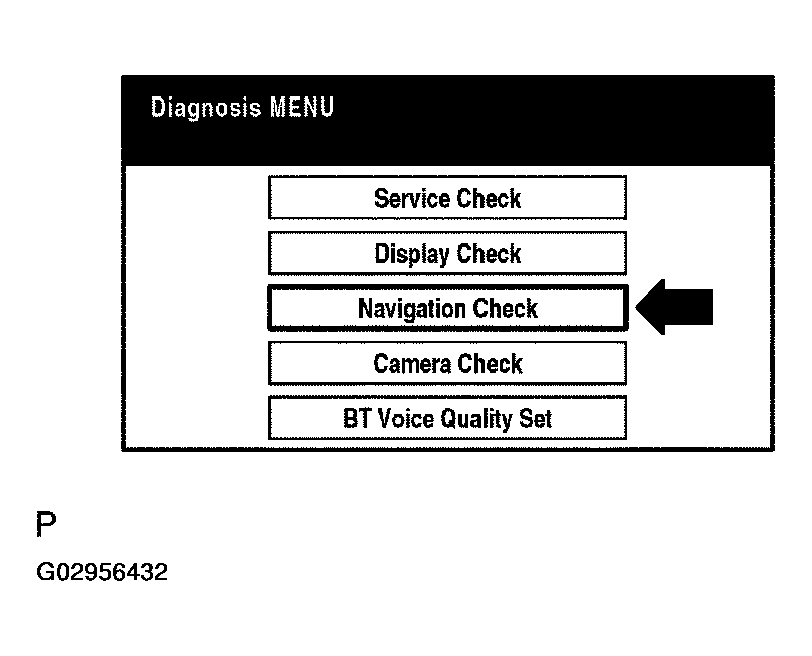

      Fig 1: Selecting Navigation Check From Diagnosis MENU Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select "Microphone Check" from "Navigation Check".

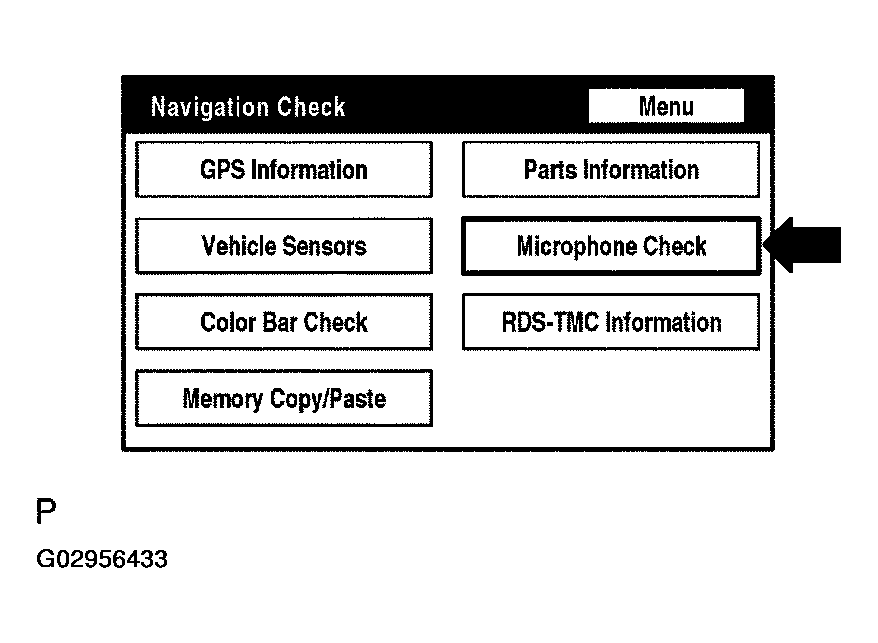

      Fig 2: Selecting Microphone Check From Navigation Check Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Perform the microphone check by following the directions on the "Microphone Check" screen.

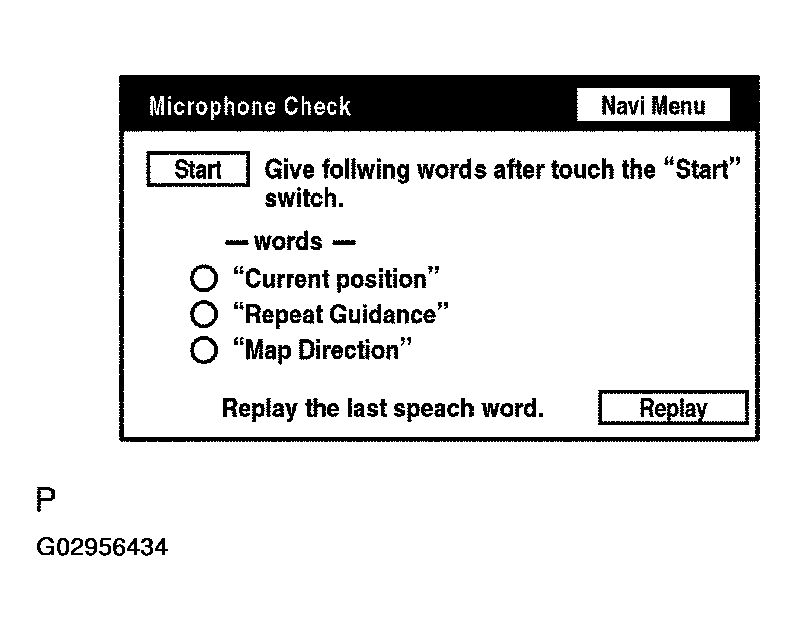

      Fig 3: Identifying Microphone Check Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
