LEXUS Navigation System - Diagnostics
>>
Display Signal Circuit (Navigation Ecu - Multi-Display)
>>
Wiring Diagram
Display Signal Circuit (Navigation Ecu - Multi-Display): Wiring Diagram

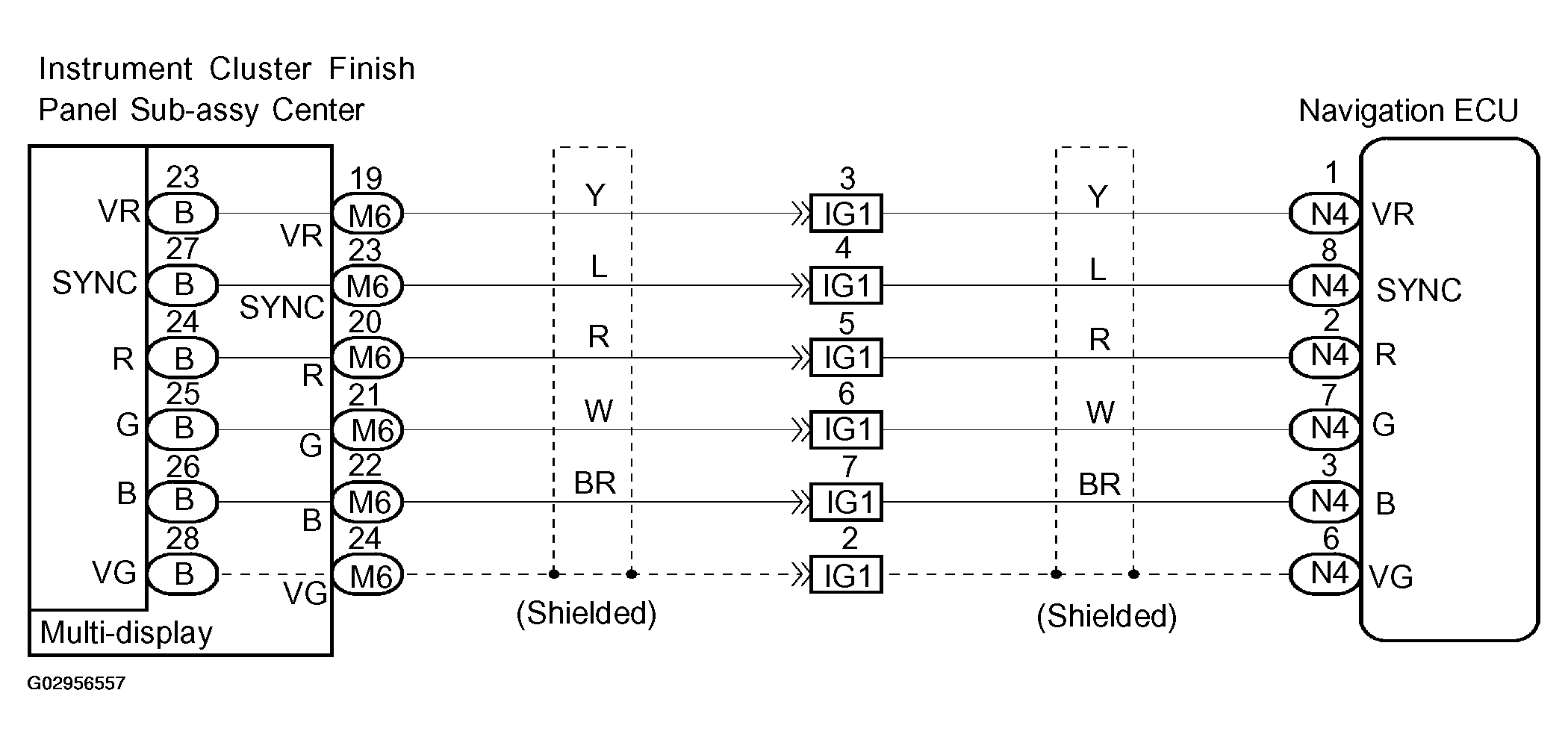

Fig 1: Display Signal (Navigation ECU - Multi-Display) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
