Display Check Mode (Color Bar Check)

HINT:

This mode checks the color display of the multi-display.
Illustrations may differ from the actual vehicle depending on the device settings and options.

HOW TO PERFORM COLOR BAR CHECK
1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
2. Select "Display Check" from the "Diagnosis MENU" screen.

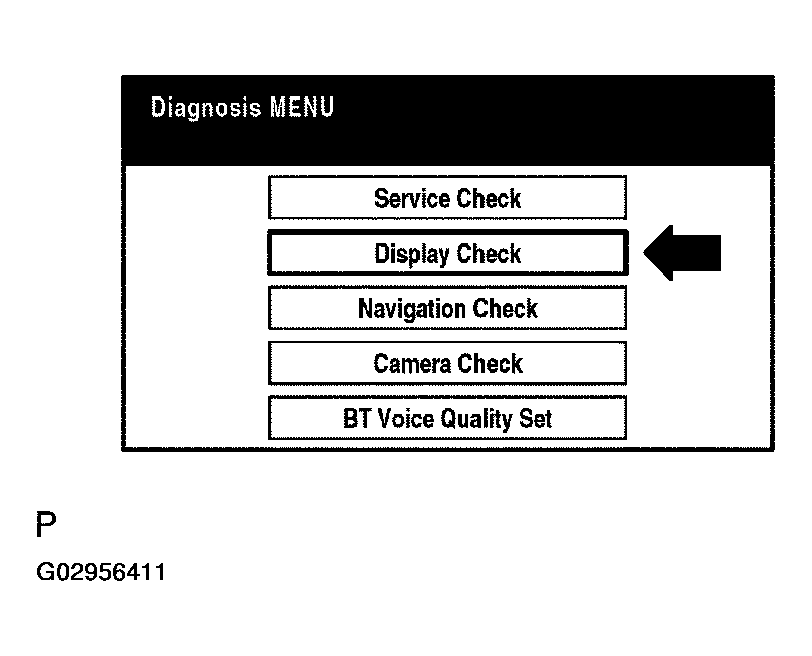

  Fig 1: Selecting "Display Check" From "Diagnosis MENU" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Color Bar Check" from the "Display Check" screen.

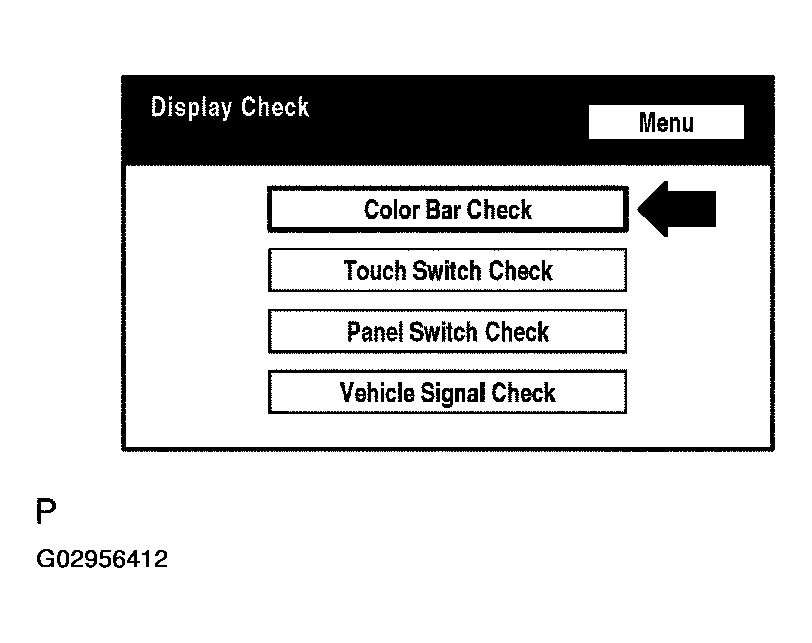

  Fig 2: Selecting "Color Bar Check" From "Display Check" Screen
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Select color bar from the "Color Bar Check Mode" screen.
  HINT:
  - The entire screen turns to the color or stripe selected.
  - Touching the display will return to the "Color Bar Check" screen.

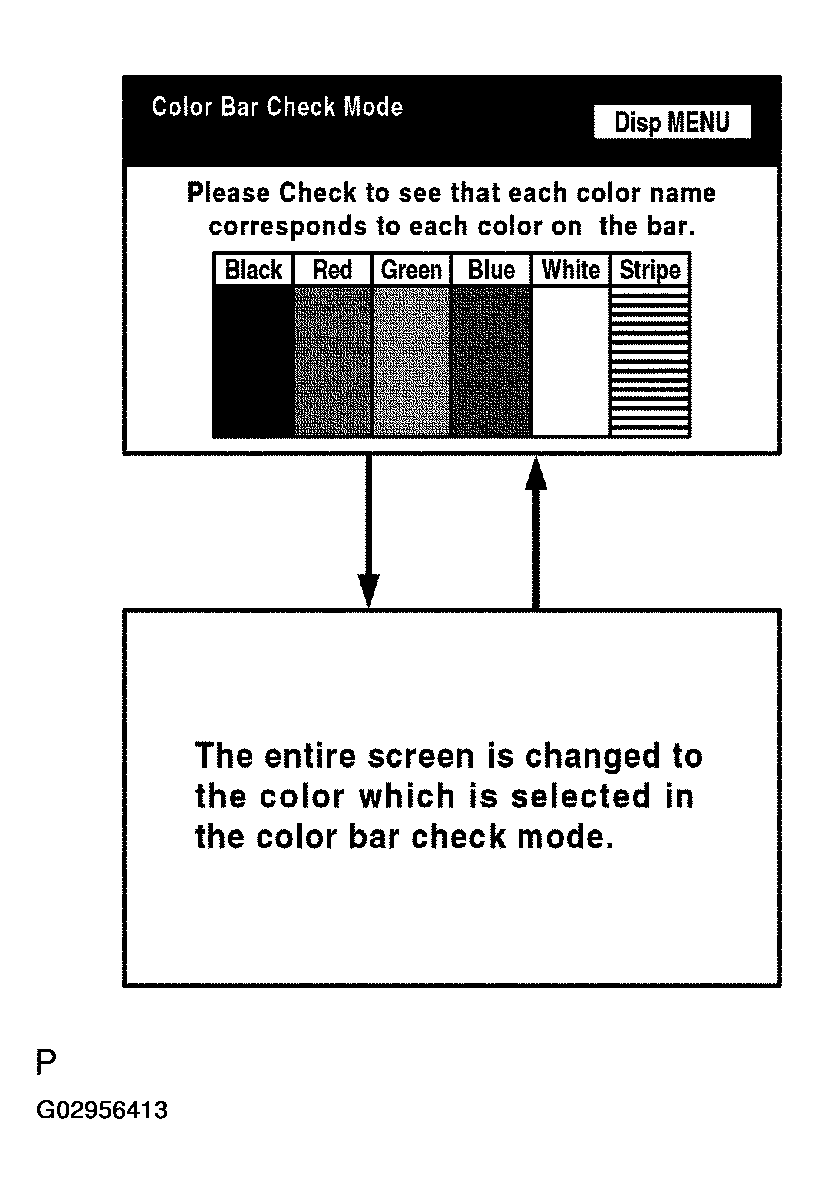

    Fig 3: Identifying "Color Bar Check" Display Screen
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
