Problem Symptoms Table
HINT:
If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts on the following pages and proceed to the page given for troubleshooting.
The Matrix Chart is divided into 3 chapters.
- If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart of each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.

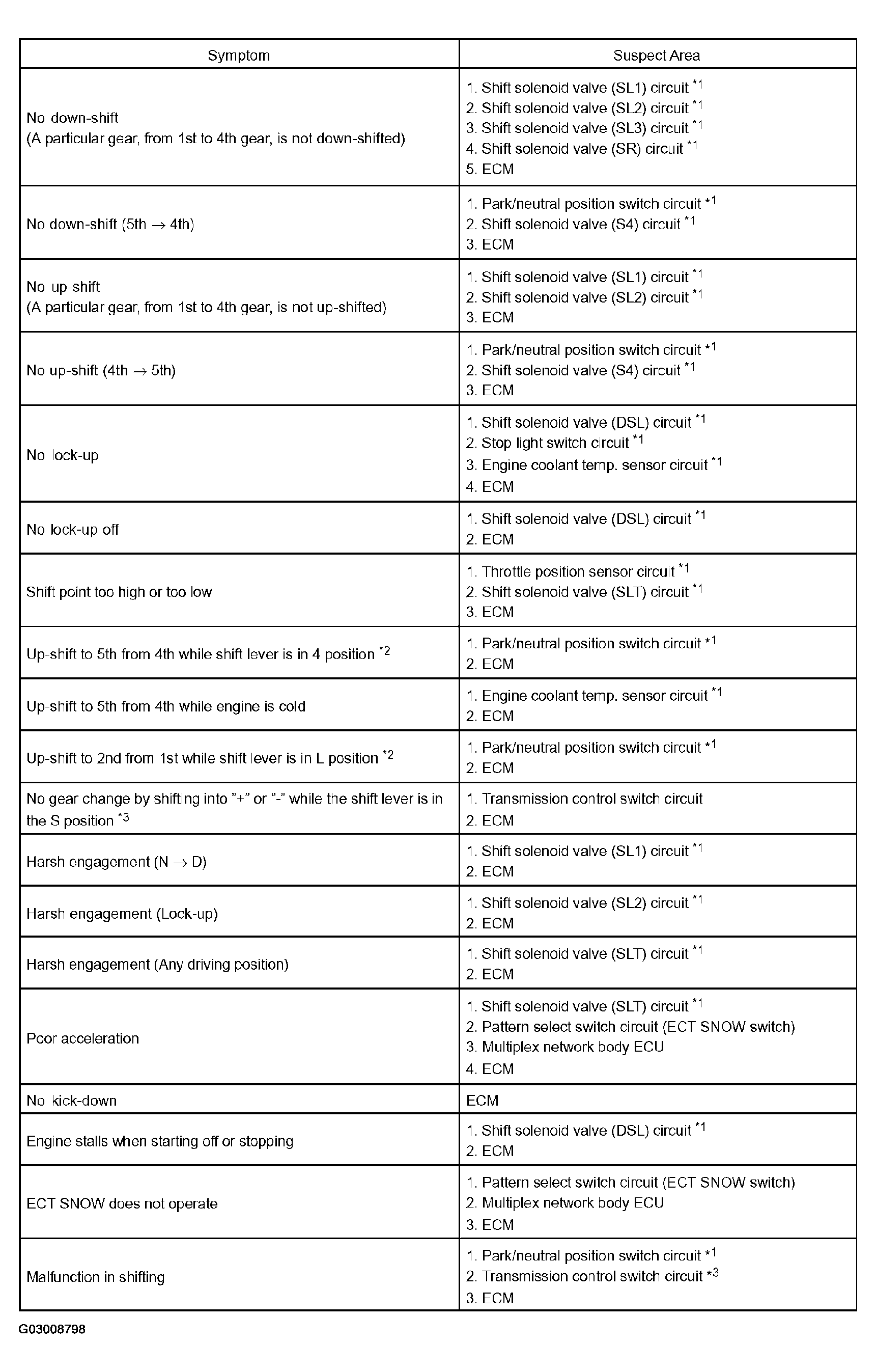

- Chapter 1: Electronic Circuit Matrix Chart
HINT:
*1: When the circuit on which mark *1 is attached is a malfunction, DTC could be output (See PRE-CHECK ).
*2: Gate shift lever type
*3: Shift lever with Multi-mode automatic transmission type

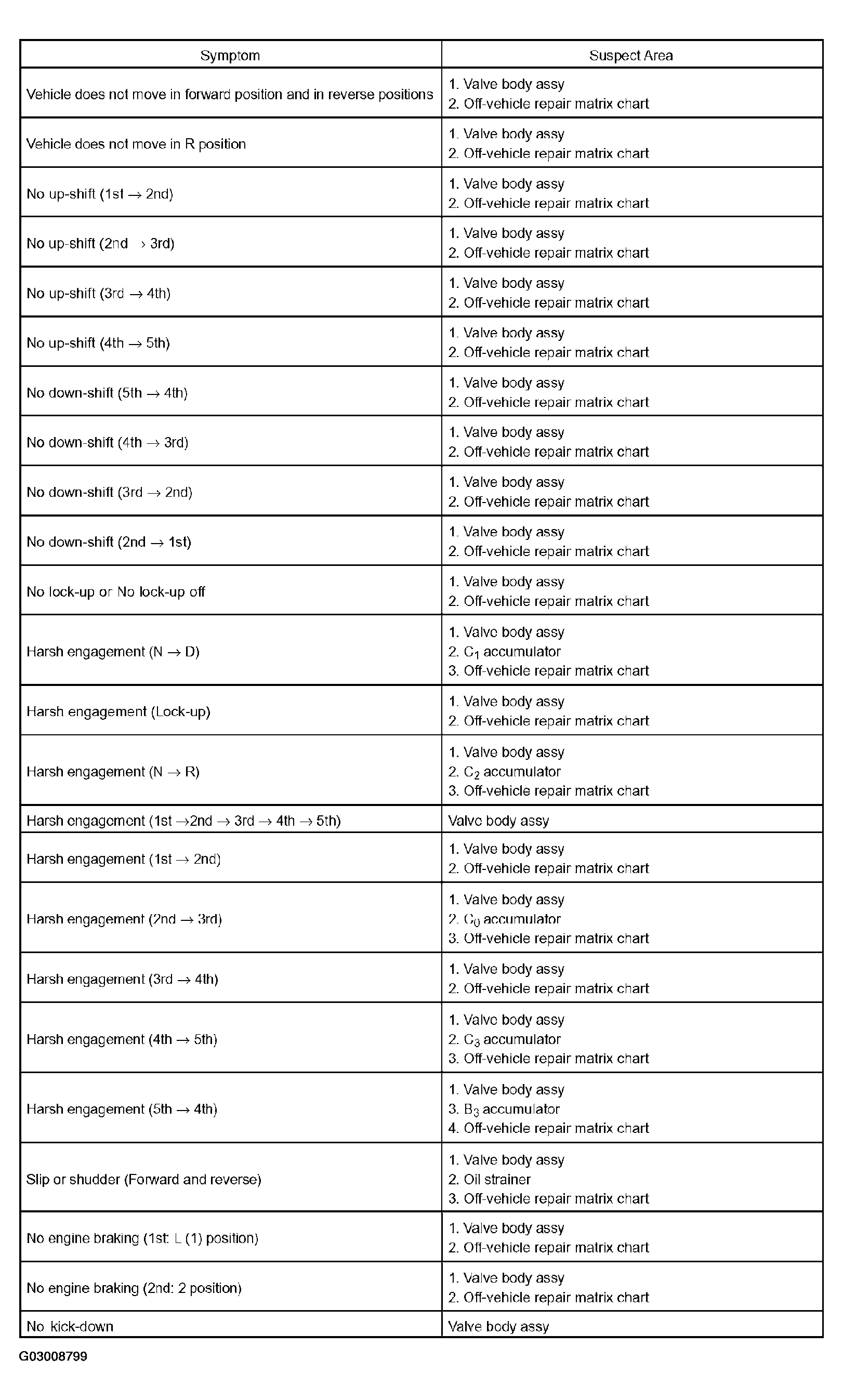

- Chapter 2: On-Vehicle Repair
(See OVERHAUL - U151E, U151F article for mechanical repair information)

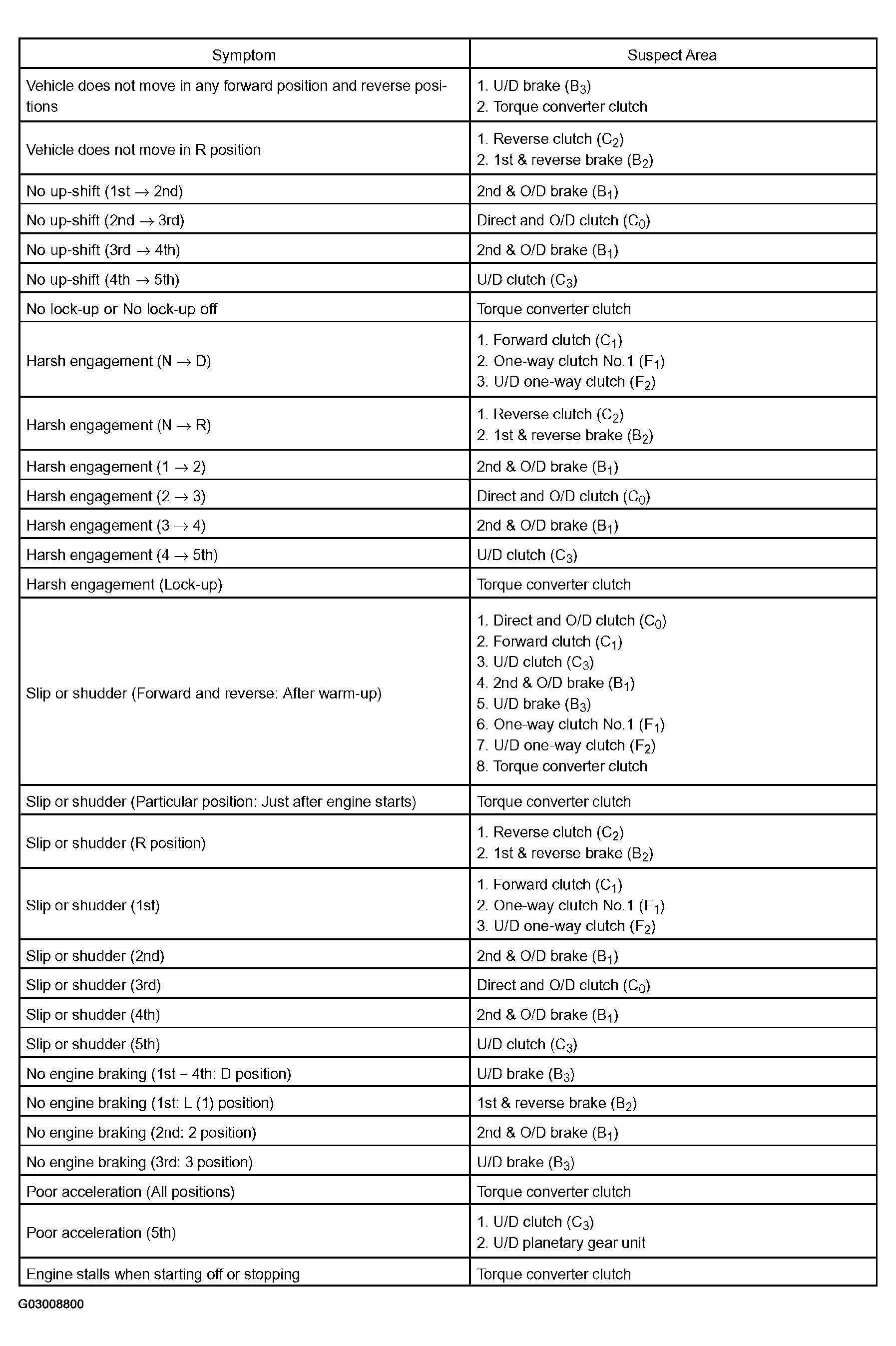

- Chapter 3: Off-Vehicle Repair
(See OVERHAUL - U151E, U151F article for mechanical repair information)
