Water Pump ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

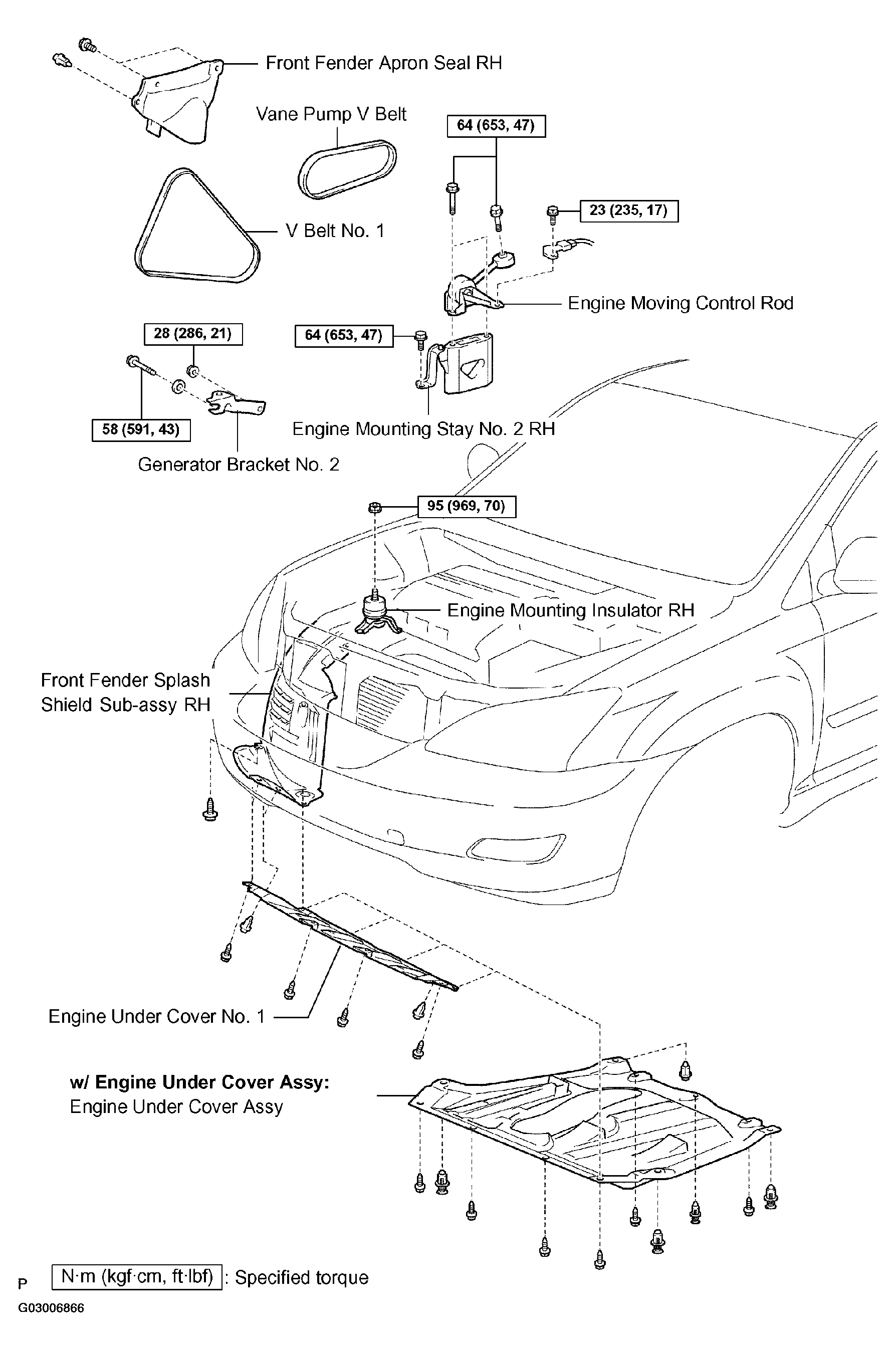

Fig 1: Exploded View Of Water Pump Assy Components And Replacements (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

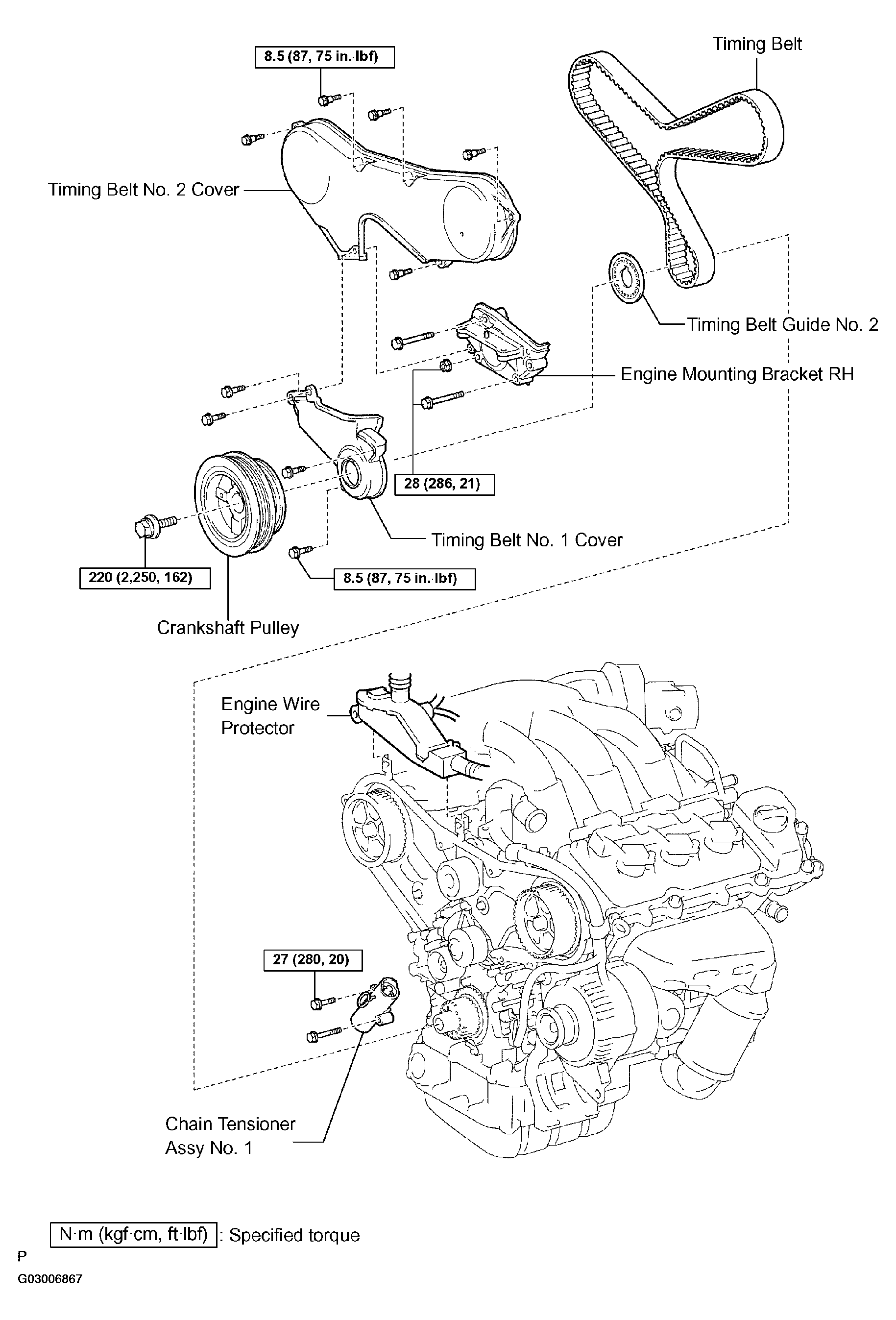

Fig 2: Exploded View Of Water Pump Assy Components And Replacements (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Water Pump Assy Components And Replacements (3 Of 4)

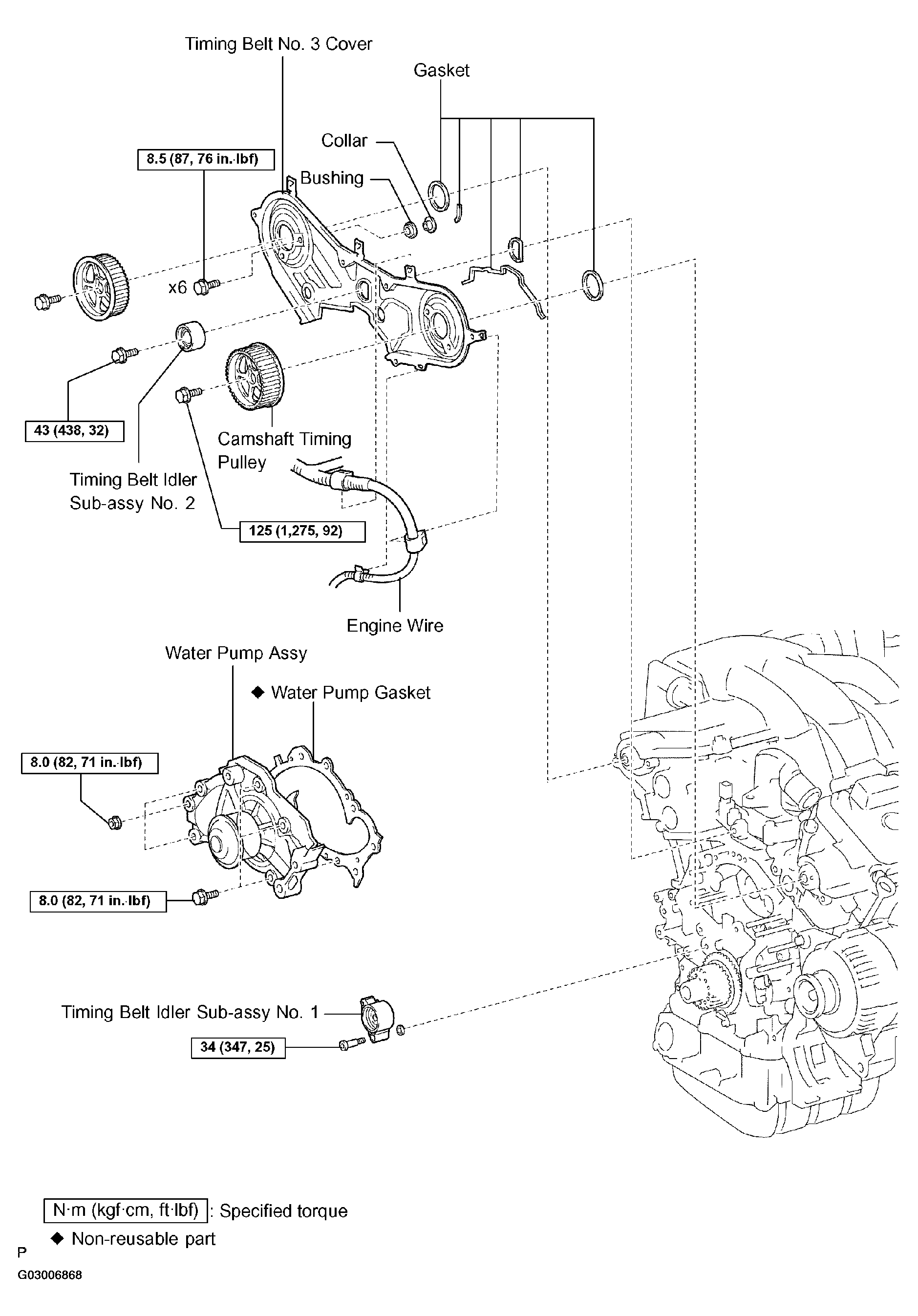

Fig 4: Exploded View Of Water Pump Assy Components And Replacements (4 Of 4)
