Reflex Reflector ASSY LH: Overhaul

HINT:

COMPONENTS: See REAR BUMPER

1. REMOVE REAR FLOOR FINISH PLATE (See step 26 in  REPLACEMENT  )
2. REMOVE DECK FLOOR BOX REAR (See step 20 in  REPLACEMENT  )
3. REMOVE DECK SIDE TRIM BOX LH (See step 25 in  REPLACEMENT  )
4. REMOVE DECK SIDE TRIM BOX RH (See step 24 in  REPLACEMENT  )
5. REMOVE REAR BUMPER SIDE SEAL RH (See  REPLACEMENT  )
6. REMOVE FUEL TANK FILLER PIPE PROTECTOR (See  REPLACEMENT  )
7. REMOVE REAR BUMPER COVER (See  REPLACEMENT  )
8. REMOVE REFLEX REFLECTOR ASSY LH
   1. Release the claw fitting and remove the screw and the reflex reflector assy LH.

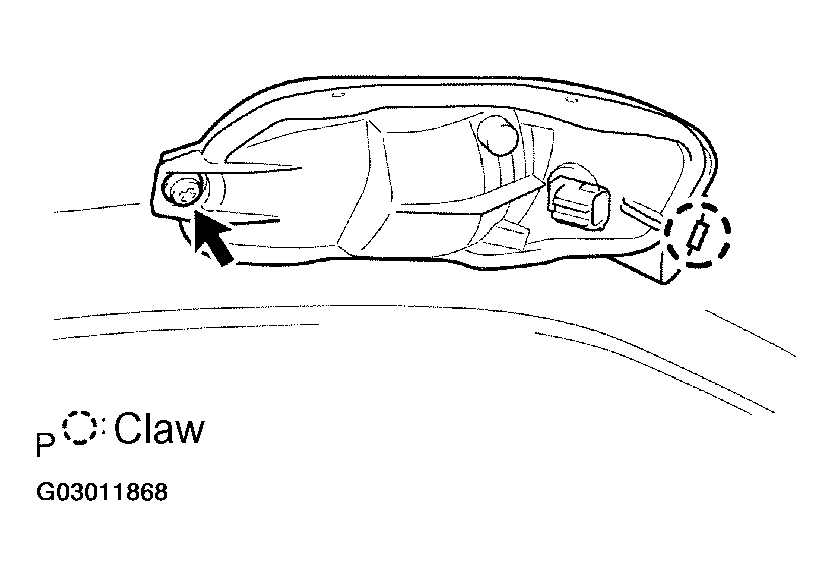

      Fig 1: Locating Screw And Claw Fitting On Reflex Reflector Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE REFLEX REFLECTOR BULB
   1. Remove the reflex reflector bulb, the reflex reflector LH socket plug.
   2. Remove the reflex reflector bulb from the reflex reflector LH socket plug.
10. REMOVE REFLEX REFLECTOR LH SOCKET PLUG
11. REMOVE REFLEX REFLECTOR LENS REAR LH
12. INSTALL REAR BUMPER COVER (See step 20 in  REPLACEMENT  )
