Engine Mechanical: Preparation: SST

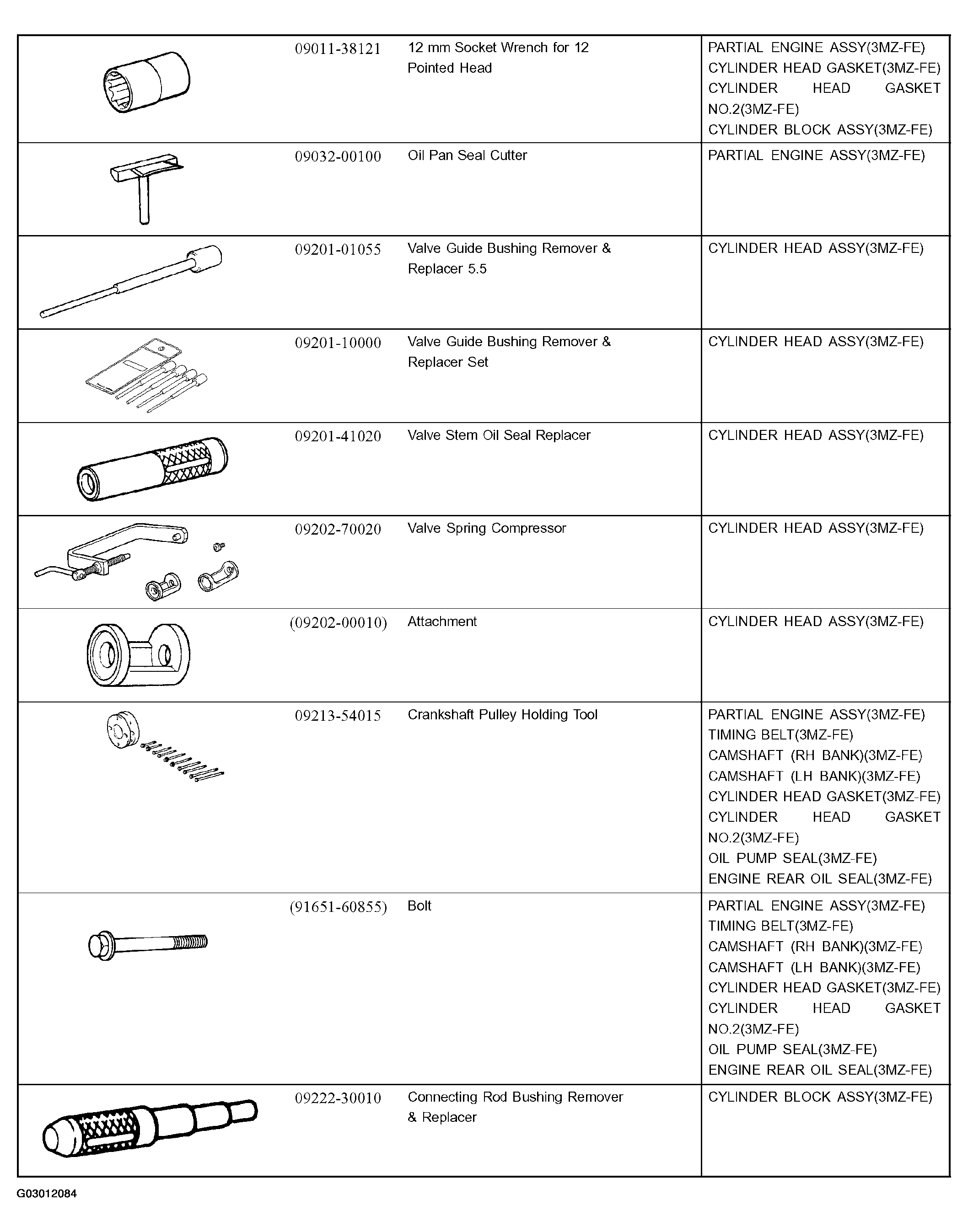

Fig 1: Preparation SST Specifications (1 Of 4)
G03012084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

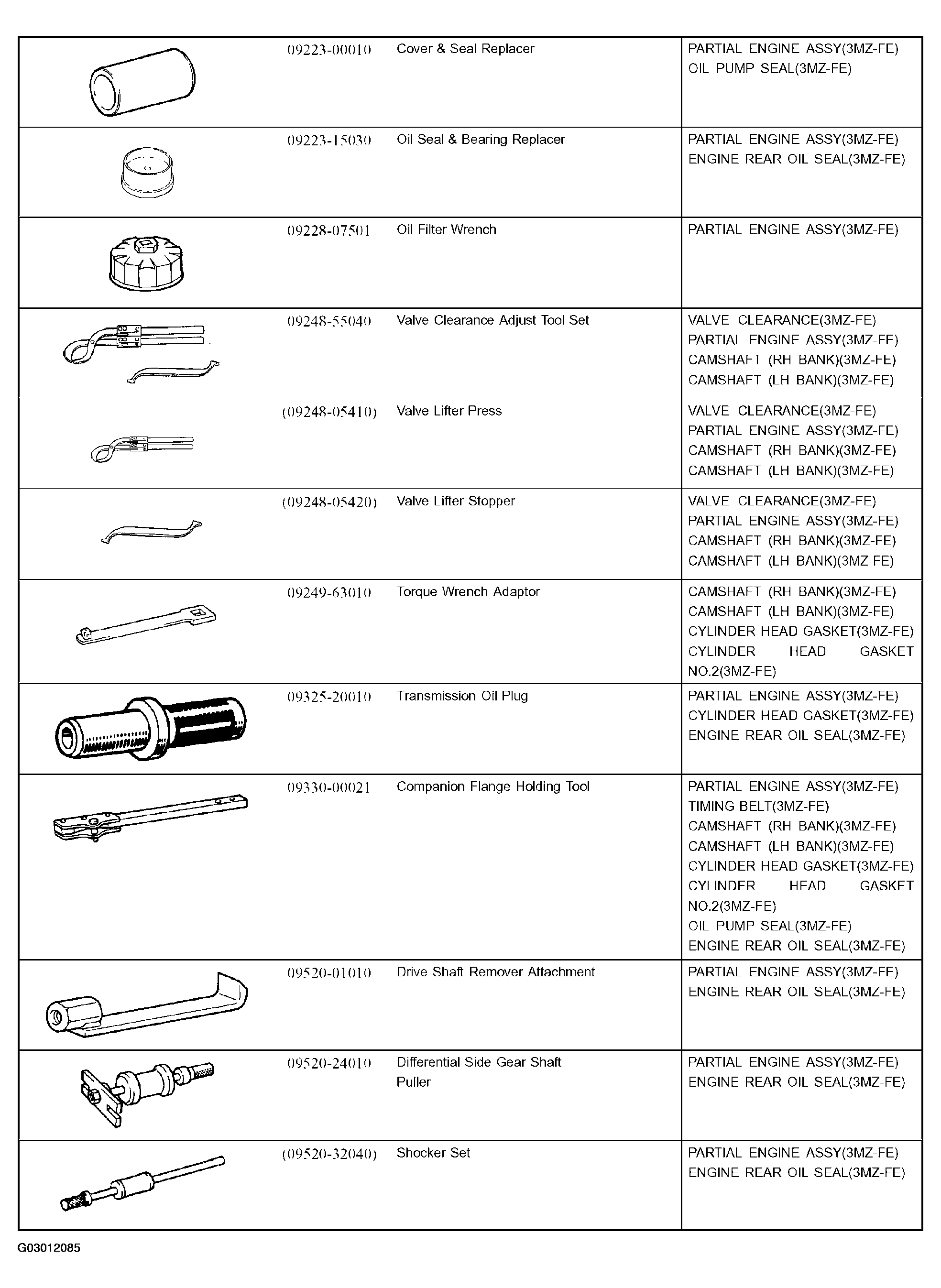

Fig 2: Preparation SST Specifications (2 Of 4)
G03012085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

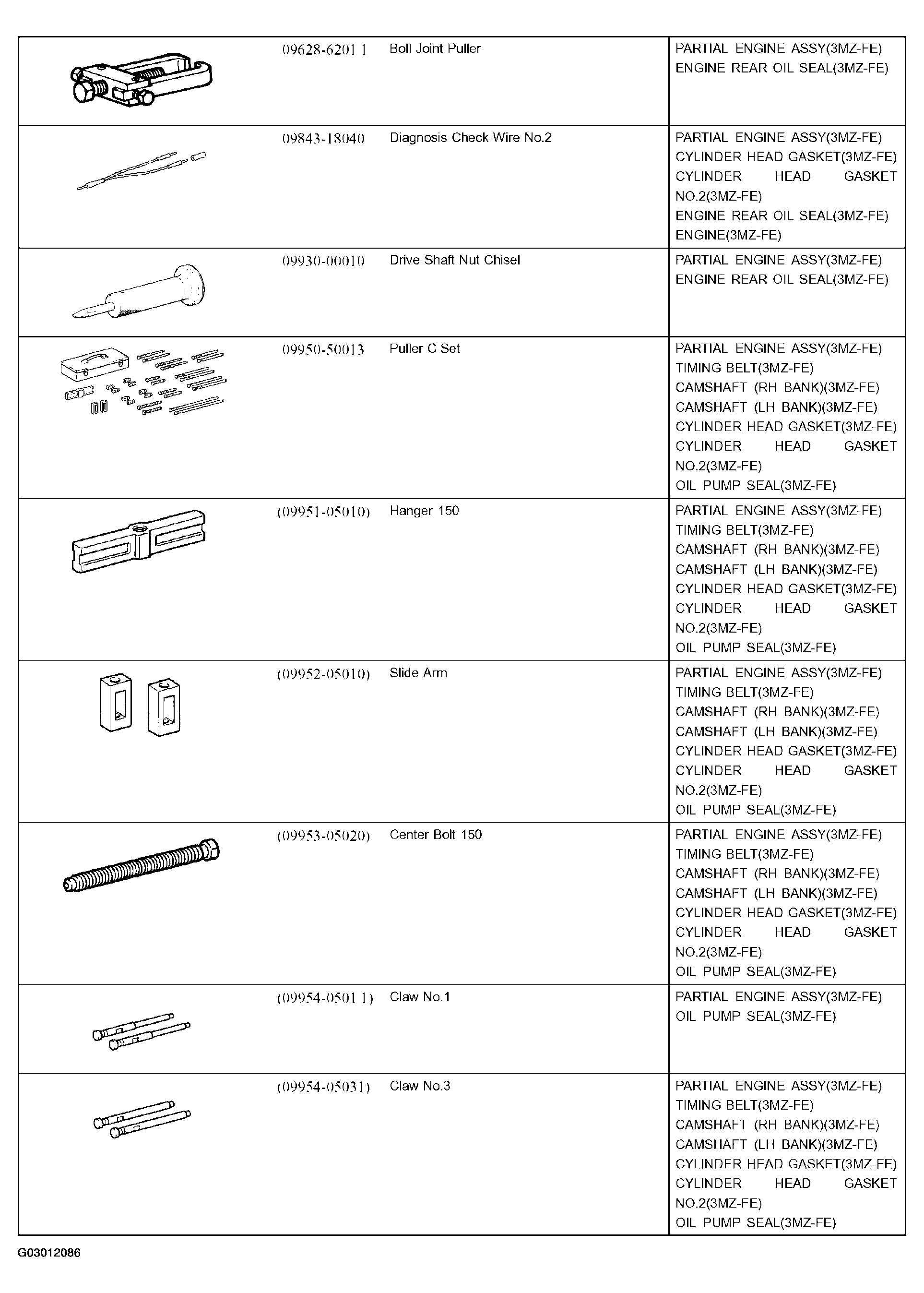

Fig 3: Preparation SST Specifications (3 Of 4)
G03012086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

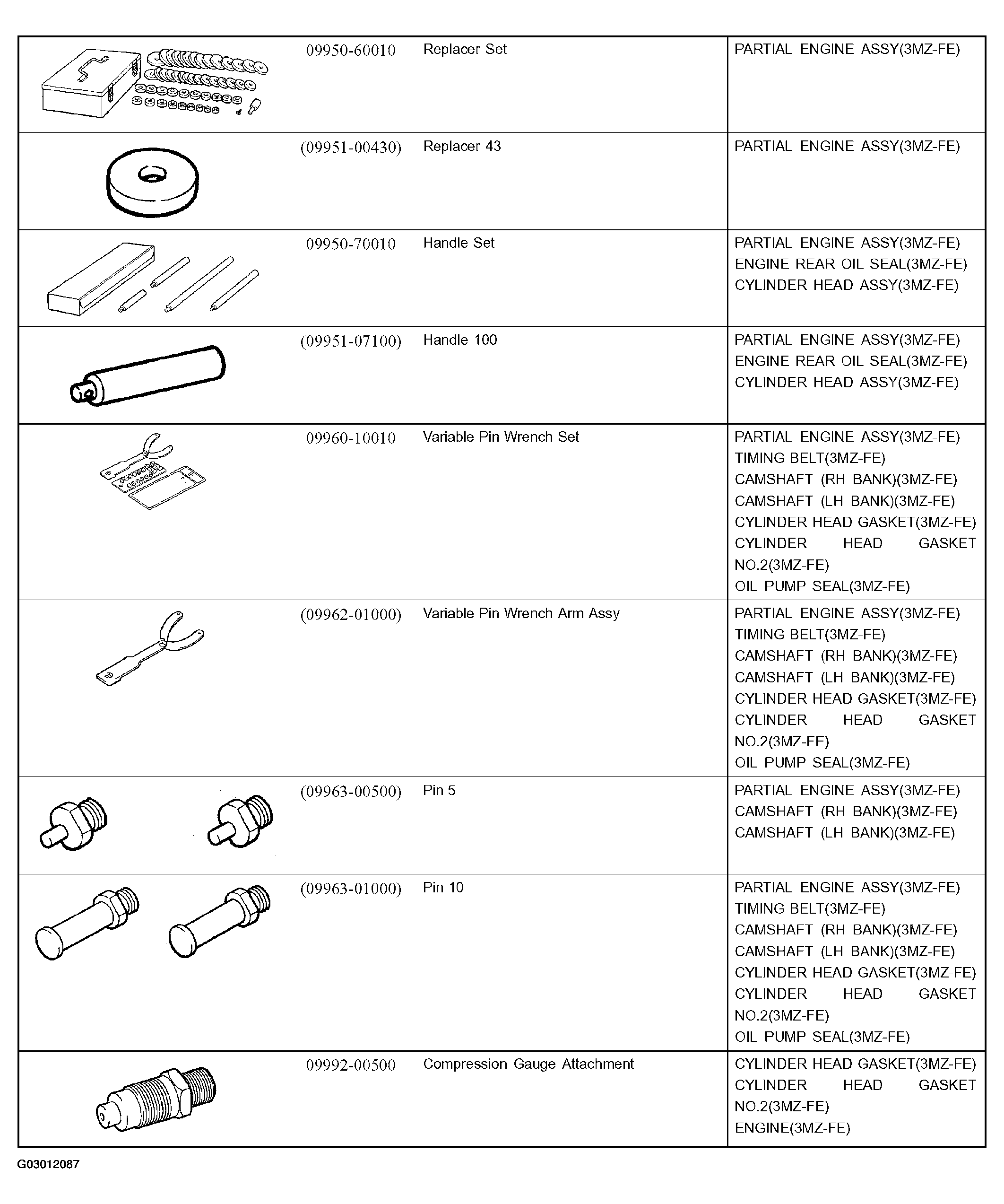

Fig 4: Preparation SST Specifications (4 Of 4)
G03012087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
