Initialization Of Power Window (PD003-04)
Publication date: 2004-10-22Reference number: PD003-04
INITIALIZATION OF POWER WINDOW
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD003-04, Date of Issue:
October 22, 2004
| LEXUS: | 2005 RX 330 |
| SECTION: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
INTRODUCTION
As a result of the removal of the Short Pin, the "one-touch open and close" and "jam protection" functions of the driver's door Power Window will be inoperative due to loss of the driver's door Power Window position memory stored in the microcomputer.
Therefore, please initialize the driver's door Power Window after installing the Short Pin in its original location during Pre-Delivery Service (PDS) at the dealership.
NOTE:
Any time the battery terminal has been disconnected, initialize the driver's door Power Window after reconnecting the battery terminal.
APPLICABLE VEHICLES
2005 model year RX 330 vehicles.
WARRANTY INFORMATION
WARRANTY INFORMATION
| OP Code | Description | Time | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
INITIALIZATION PROCEDURE
With ignition switch in the "ON" position, do the following:

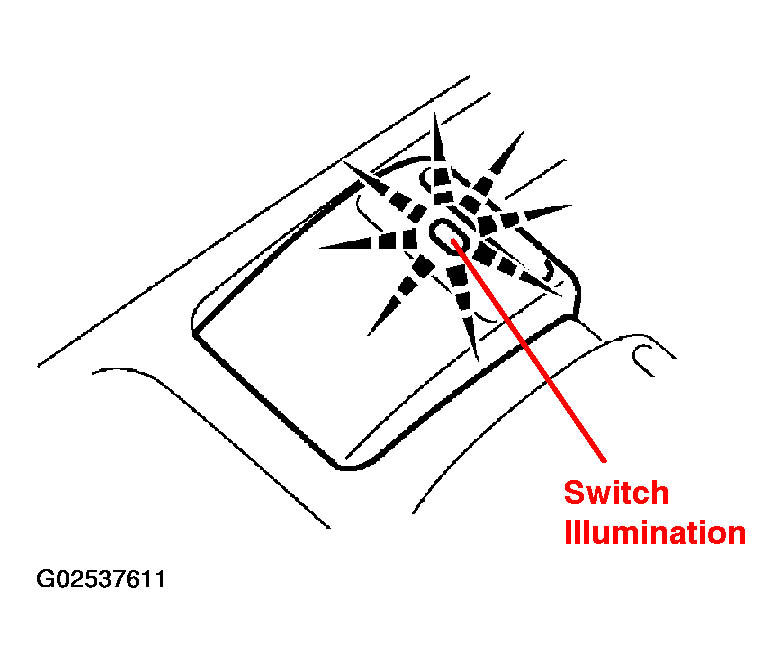

- At this time, the driver's door power window switch should be blinking.
NOTE: When the battery terminal has been disconnected, each door's power window switch blinks.
- Push the driver's door power window switch to open the window.NOTE: When the battery terminal has been disconnected, push each door's power window switch to open the windows.

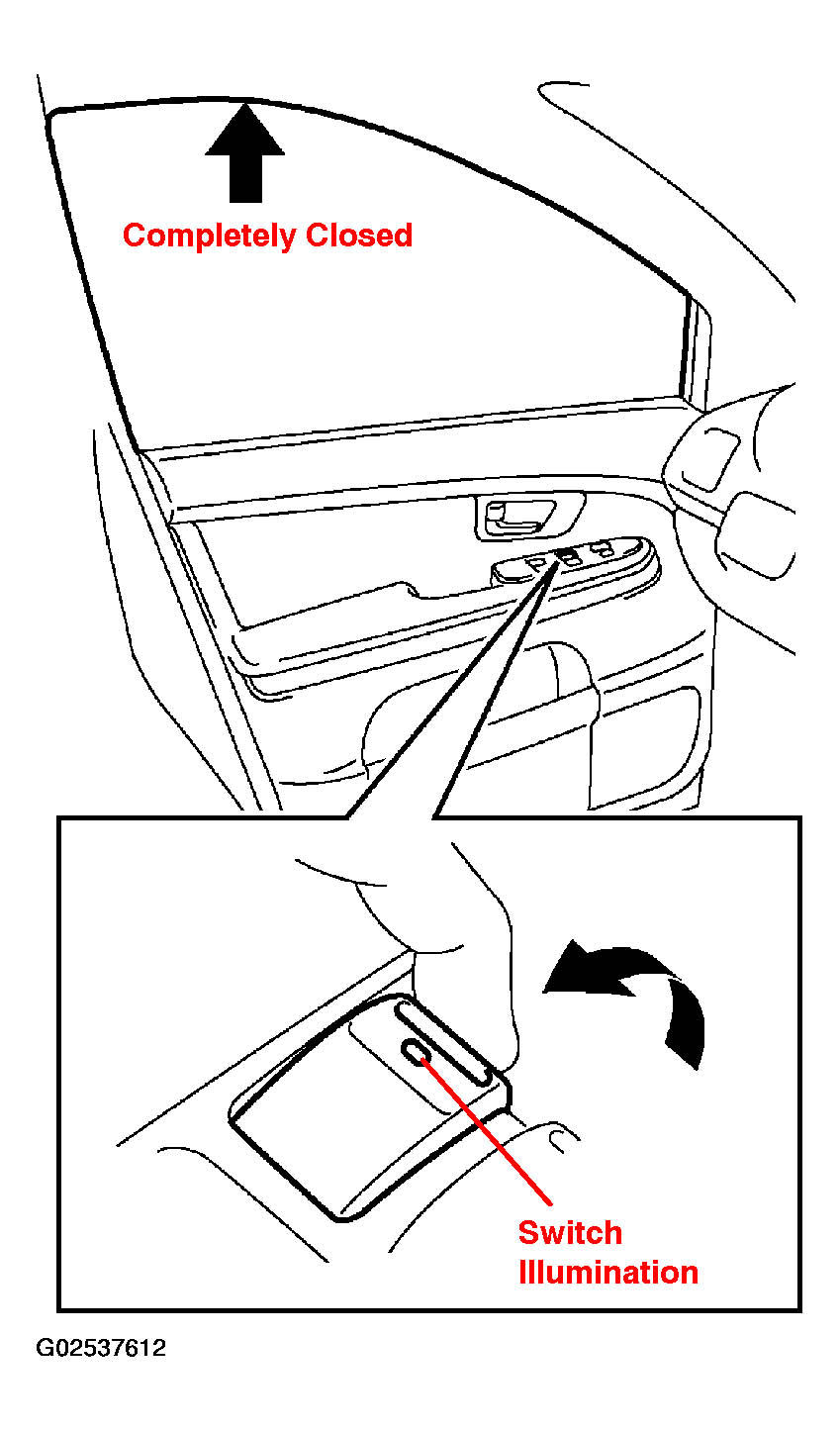

- Pull up the driver's door power window switch until the window closes, and hold it for approximately one second. At this time, the driver's door power window switch illumination changes from blinking to constant illumination.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: When the battery terminal has been disconnected, pull up each door's power window switch until the window closes, and hold it for approximately one second.
At this time, each door's power window switch illumination changes from blinking to constant illumination. - Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.NOTE: Jam protection function is enabled through the above initialization procedure.
