How To Determine Bolt Strength

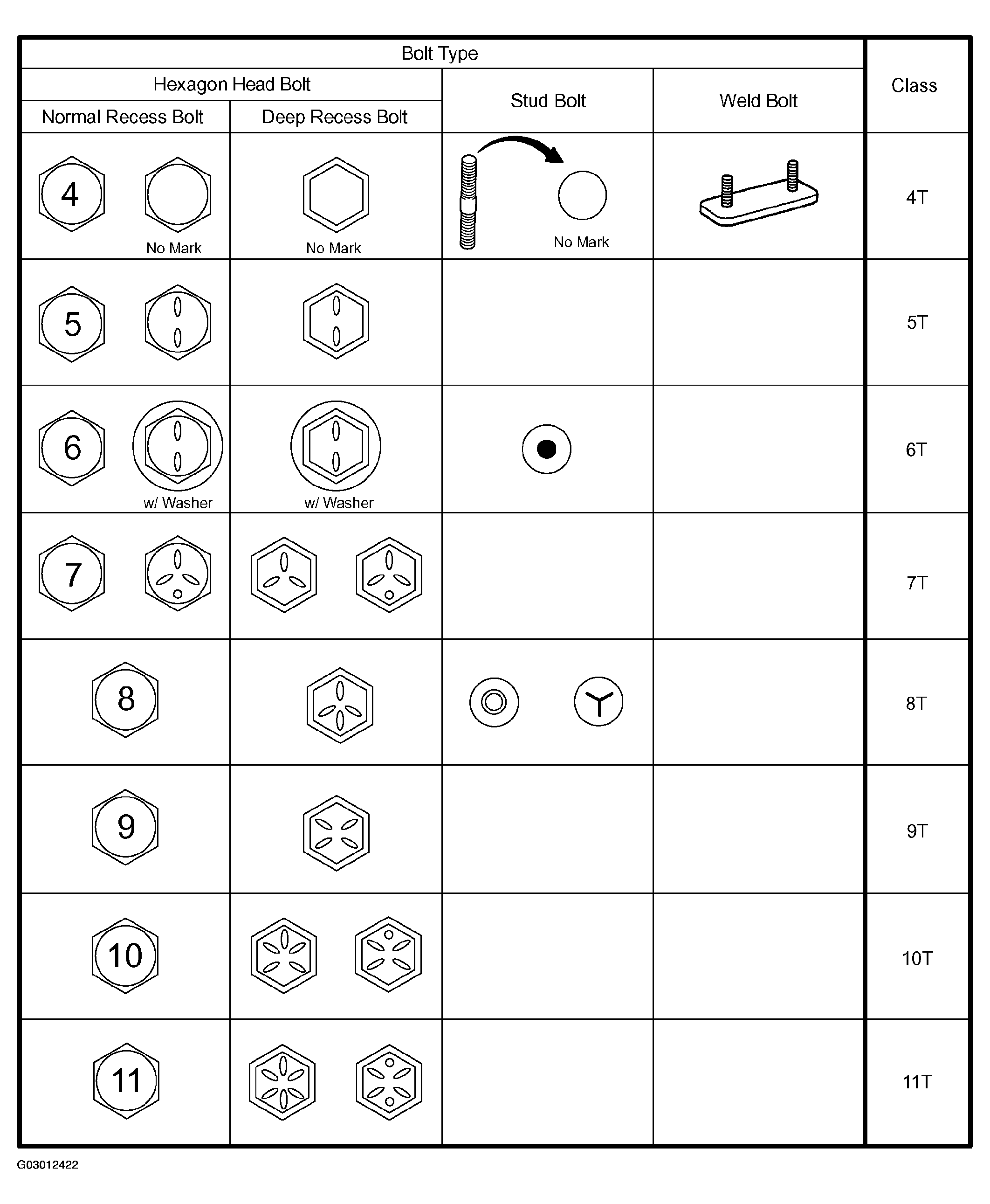

Fig 1: Standard Bolts Specifications
G03012422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
